Summary of Contents for HOLUND Pure Sine Wave

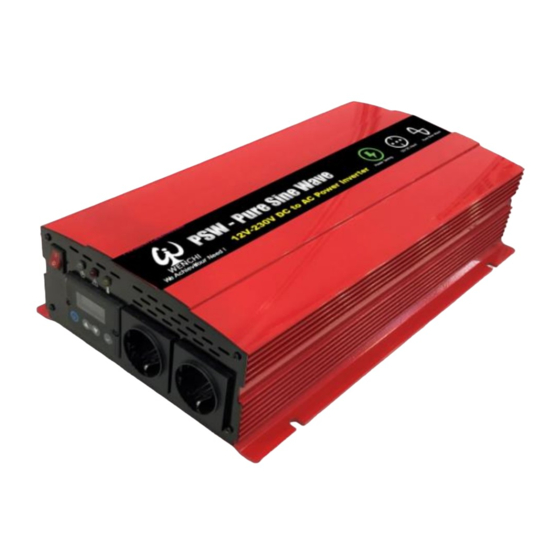

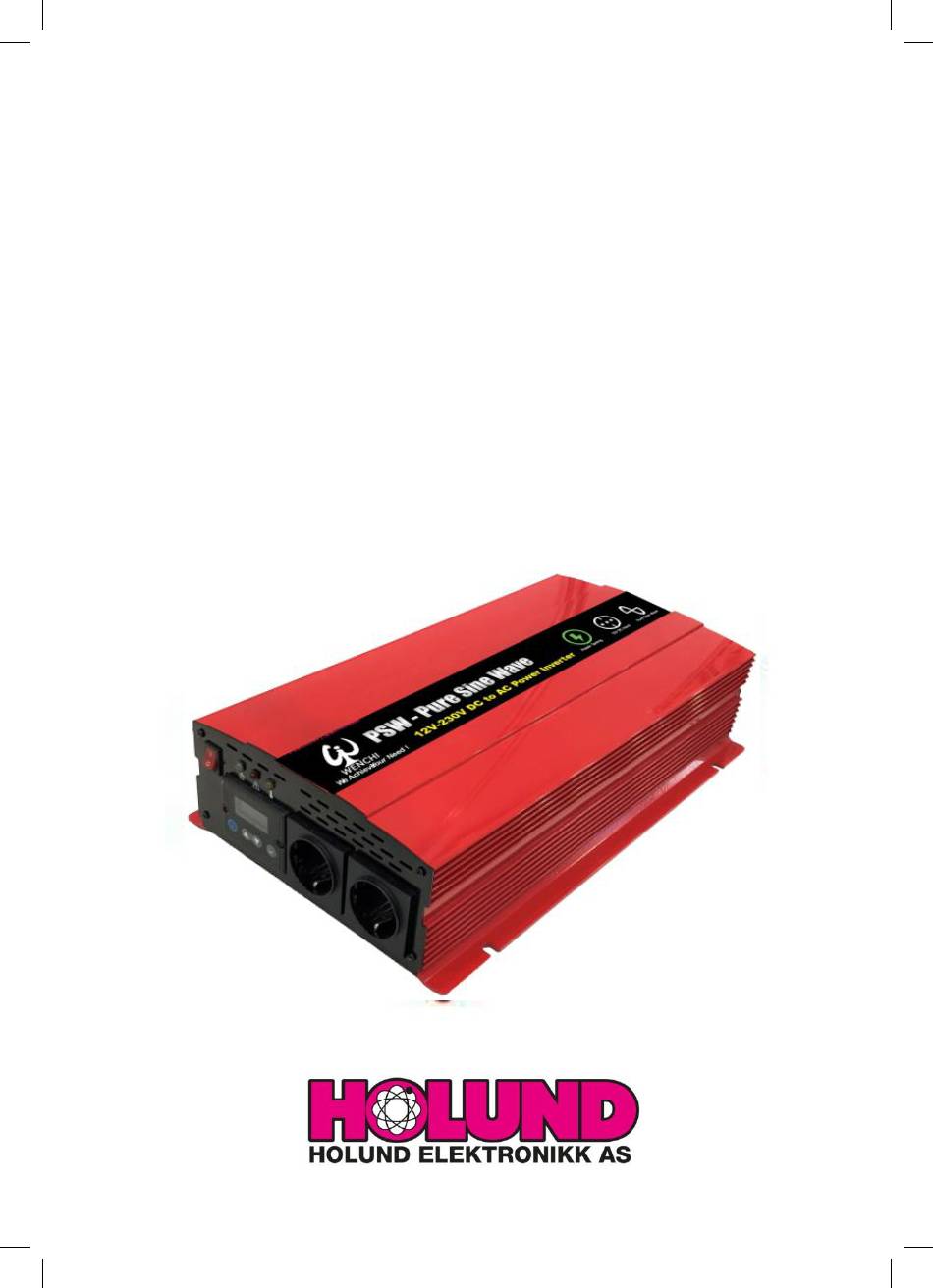

- Page 1 Pure Sine Wave Inverter Instructions Retain these instructions for future reference www.wenchi-power.com...
-
Page 2: Optional Parts
1. Overview The Pure Sine Wave (PSW) inverter provides a 230V supply which closely replicates the domestic mains supply. This makes it ideal for powering more sensitive equipment which may not be compatible with traditional Modified Sine Wave (MSW) inverters. - Page 4 CAUTION There may be sparks produced when making battery connections, ensure no flammable materials are present. Incorrect connection of cables to the battery (reverse polarity) may damage the unit and is not covered by the warranty. Single Battery System Supplied cables Inverter Inverter...
- Page 5 Fig3 – Example RCD installation CAUTION It is recommended the inverter is wired and tested by a qualified electrician Remote Mounting LCD Display (1000/2000/3000W Models) For installations where the inverter may be inaccessible, the LCD display can be removed from the inverter and mounted remotely using the optional LCD Frame Kit Ensure that the inverter power on/off switch is in the OFF (0) position.
- Page 6 Adding an LCD Display (600W Model) An LCD display can also be added to models without this function by using the optional LCD Display & Frame Kit Connect 6 metre extension lead to display port on inverter Fit frame where display is required and attach 6 metre cable to rear Snap fit endplates to cover screw fixings Turn the power on/off switch to the ON (I) position.
-
Page 7: General Information
5. General Information Continuous & Surge Power A Continuous rating is the amount of power the inverter can handle for a number of hours without overloading. The Surge rating is a brief burst of power the inverter can provide to help start certain types of load. - Page 8 Information Mode Various information modes are available by pressing up/down b to move forward or backwards through the screens. DC Voltage DC Current AC Voltage Output Wattage Hours Remaining DC Voltage Input voltage available from the battery supply. DC Current Input current being used from the battery supply in order to power the load.
- Page 9 Output Voltage Sets the AC output voltage. Only change if the application requires a different voltage for optimum performance Last Error Code Allows the last error code to be viewed Battery Size Sets the Ah rating of the battery supplying the inverter. The value is used when calculating input current and hours remaining in conjunction with the Current Sensor Power Saving Mode If the inverter does not detect a load for 10 minutes it will enter a sleep mode to...
- Page 10 Indicator & Error modes Power Illuminates green to show the unit is switched on and power is available from the AC output socket(s) Overload Illuminates red if the units has been overloaded due to excessive current or a short circuit Over Temperature Illuminates yellow if the unit has overheated Audible Alarm...
- Page 11 AC transfer function : In front panel “AC INPUT” is connected, the unit will switch to external current supply automatically. The power discharge from the battery will be stopped. This state will be indicated by 3 (Green-Red- Yellow) light-emitting diode (LED), Flash every 2 seconds. As long as mains voltage is supplied, the inverter can not be restarted.
- Page 12 Earth Leakage Protection To provide protection in the event of a fault, the 230V outlets on this inverter are protected by an integral Residual Current Device (RCD). Should a fault occur the inverter will switch off to protect all connected circuits and display an error code.
-
Page 13: Specifications
10. Specifications...
