Summary of Contents for ARGEAD MINOR-PLUS 3V

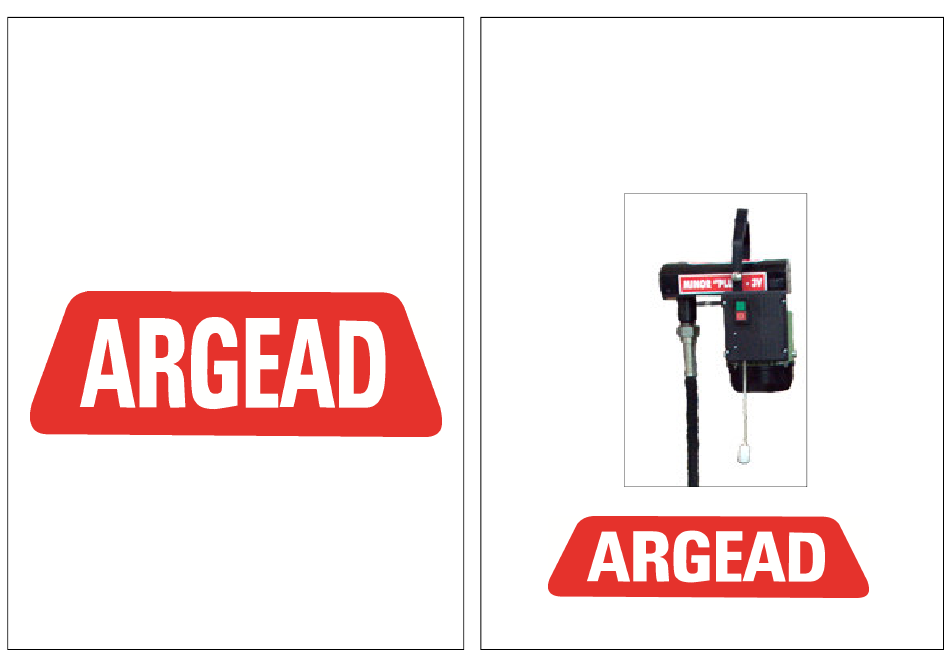

- Page 1 INSTRUCTION MANUAL “MINOR-PLUS 3V” SHEARING PLANT ARTURO GINES,S.C. Marcial,1 50300 CALATAYUD (Zaragoza) (SPAIN) Tel: +34 976881304 (office) / +34 976 880093 (Workshop) Fax: +34 976885172 www.arturogines.com / e-mail: info@arturogines.com...
-
Page 2: European Directives
CONTENTS EUROPEAN DIRECTIVES The “MINOR-PLUS 3V” complies with the main requirements of the following Community Directives: 1-2—SAFETY REGULATIONS - Machines Directive 2006/42/CE 3 - START UP - Low Voltage Directive 2006/95/CE 4-5 - EXPLODED VIEW: “MINOR PLUS 3V” MOTOR - Electromagnetic Compatibility Directive 2004/108/CE 6-7–... -
Page 3: Electrical Connections
SAFETY REGULATIONS ELECTRICAL CONNECTIONS Ensure the electric voltage of the motor is the same as the grid to which it will be connected. READ THE CHARACTERISTICS ON THE MOTOR PLATE Use sockets for the connection that have default current protection and are properly earthed. - Page 4 EXPLODED VIEW: 1.70m X-125-T flexible drive SAFETY REGULATIONS DENOMINATION Do not shear in areas where the ambient temperature is not between 0º and 40º. Do not shear in areas near to explosive objects or gases. Bayonet 1018 Flexible terminal sleeve M 6x100 Do not block the fan outlet on the motor.
- Page 5 EXPLODED VIEW: X-125-T FLEXIBLE DRIVE START UP Connect the motor to the grid (220v A/C) READ THE SAFETY INSTRUC- TIONS Thread the arm onto the motor without connecting the scissors (left-hand thread). Start the motor by pushing the green switch and then pull on the cord. Connect the scissors, pushing towards the inside of the arm.
- Page 6 EXPLODED VIEW: MINOR-PLUS 3V MOTOR COMPONENTS OF THE “MINOR-PLUS 3V” UNIT DENOMINATION PARTS Motor handle Bushing Screw W 1/4x9 Belt protection guard Nut W 3/8 Aluminium pulley set Allen thread M 6x10 Nut W 7/16 Aluminium motor pulley Poly-V belt (18")
