Summary of Contents for ANPVIZ H Series
- Page 1 Network Video Recorder User Manual H-Series...
- Page 2 Thank you very much for choosing ANPVIZ. Our products are supported by the world's first video monitoring manufacturers. and they have adopted military level of protection. It is our top priority to ensure your data safety and offer you a satisfactory service.
- Page 3 About this Manual The Manual includes instructions for using and managing the product Picture, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 4 —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver Is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
- Page 5 Warnings: Serious Injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected. Warnings: Follow these safeguards to Cautions: Follow these precautions to prevent serious injury or death. prevent potential injury or material damage.
- Page 6 Applicable Model This manual is applicable to the following models. NVR7608Q18P NVR7616Q216P NVR7616K216P NVR7732I416P NVR7732K416P NVR108MH-P8 NVR216MH-P16...
-
Page 7: Table Of Contents
Introduciton------------------------------------------------------------------------ Front Panel-------------------------------------------------------------------- Rear Panel-------------------------------------------------------------------- Hard Disk Installation------------------------------------------------------- NVR Installation-------------------------------------------------------------- HDD Storage Calculation Chart------------------------------------------- Chapter 1 Startup---------------------------------------------------------------- 1.1 Activate Your Device---------------------------------------------------- 1.2 Login----------------------------------------------------------------------- 1.2.1 Set Unlock Pattern---------------------------------------------------- 1.2.2 Log in via Unlock Pattern-------------------------------------------- 1.2.3 Log in via Password--------------------------------------------------- Chapter 2 Live View-------------------------------------------------------------- 2.1 Configure General Parameters--------------------------------------- 2.2 Configure Live View Layout------------------------------------------- Chapter 3 System Configuration----------------------------------------------... - Page 8 Chapter 6 OSD Settings--------------------------------------------------------- Chapter 7 Event------------------------------------------------------------------- 7.1 Motion Detection-------------------------------------------------------- 7.2 Area Settings------------------------------------------------------------ 7.3 Configure Arming Schedule------------------------------------------- 7.4 Configure Alarm Linkage Action-------------------------------------- Chapter 8 Recording Management------------------------------------------ 8.1 Storage Device---------------------------------------------------------- 8.2 Add Network Disk-------------------------------------------------------- 8.3 Configure Recording Schedule--------------------------------------- 8.4 Edit Schedule------------------------------------------------------------ 8.5 Configure Recording Parameter------------------------------------- Chapter 9 Playback-------------------------------------------------------------- 9.1 GUI Introduction--------------------------------------------------------...
-
Page 9: Introduciton
- 1 -... -
Page 10: Rear Panel
- 2 -... - Page 11 - 3 -...
-
Page 12: Nvr Installation
Post sale service card - 4 -... - Page 13 - 5 -...
-
Page 14: Hdd Storage Calculation Chart
- 6 -... -
Page 15: Chapter 1 Startup
Chapter 1 Startup 1.1 Activate Your Device For the first-time access, you need to activate the video recorder by setting an admin password. No operation is allowed before activation. You can also activate the video recorder via web browser, SADP or client software. Before You Start Power on your device. -
Page 16: Login
What to do next Follow the wizard to set basic parameters. ▶ When you forget your password, there are three methods to reset it, including password resetting email, Guarding Vision, and security questions. You have to configure at least one password resetting method. -
Page 17: Log In Via Unlock Pattern
1.2.2 Log in via Unlock Pattern 1. Right click the mouse on live view 2. Draw the pre-defined pattern to enter the menu operation. • If you have forgotten your pattern, you click Forgot My Pattern or Switch User to log in via password. Note •... -
Page 18: Chapter 2 Live View
Chapter 2 Live View 2.1 Configure General Parameters You can configure the output interface, mute or turning on the audio, event output interface, etc. Steps 1. Go to Configuration → System → Live View → General . 2. Configure the Live View parameters. Window Division Select the live view window division. - Page 19 Configure Channel-Zero Encoding Enable the channel-zero encoding when you need to get a remote view of many channels in real time from a web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality. Step 1.
-
Page 20: Chapter 3 System Configuration
Chapter 3 System Configuration 3.1 General Steps: Go to Configuration → System → General . 3.2 User There is a default account: Administrator. The administrator user name is admin. Administrator has the permission to add, delete, and edit user. Guest user only has live view, playback, and log search permission. -
Page 21: Exception
3.3 Exception You can receive exception events hint in alarm center, and set exception linkage actions. Steps 1. Go to Configuration → System → Exception . 2. Optional: Configure event hint. When the set events occur, you will receive hints in alarm center. -
Page 22: Chapter 4 Network Configuration
Chapter 4 Network Configuration 4.1 General You shall properly configure the network settings before operating the device over network. Steps: ①.Go to Configuration → Network → General ②. Set network parameters. DHCP If the DHCP server is available, you can enable DHCP to automatically obtain an IP address and other network settings from that server. -
Page 23: Email
④. Optional: Enable Platform Time Sync, the device will sync time with the platform server instead of NTP server. ⑤. Optional: Check Stream Encryption. It requires to enter verification code in remote access and live view after this function is enabled. ⑥. -
Page 24: Chapter 5 Camera Management

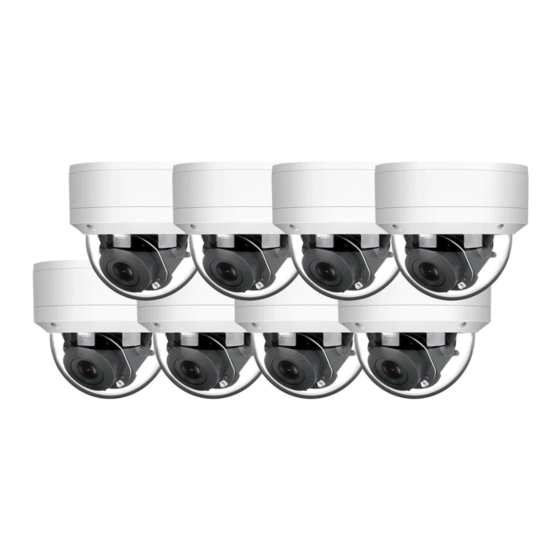

Suit for Hikvision Camera or Anpviz H Series Cameras Suit for Hikvision Camera or Anpviz H Series Cameras If you are using Hikvision poe cameras or Anpviz H Series poe cameras, Add network cameras which the password is the same as your video recorder. -
Page 25: Adding 3Rd Party Onvif Camera Manually
If you are adding the 3rd party onvif camera, please firstly modify the ip address of your Note camera to nvr's network segment 192.168.254.XX. This is very important. You could watch video guide from Anpviz Security Youtube Channel: Playlist: How to use- H Series - 17 -... -
Page 26: Sort Channel Order
5.3 Sort Channel Order Channel layout windows are ordered by channel number. You can change the camera linked channel number by dragging windows. Steps 1. Go to Configuration → Camera → Camera . 2. Click Sort Channel. 3. Drag a channel window to the channel number as your desire. 4. -
Page 27: Chapter 6 Osd Settings
Chapter 6 OSD Settings Configure OSD (On-Screen Display) settings for the camera, including date format, camera name,etc. Steps ①. Go to Configuration → Camera → OSD . ②. Select a camera. ③. Set parameters as your desire. ④. Drag the text frames on the preview window to adjust the OSD position. ⑤. -
Page 28: Area Settings
⑤. Adjust Sensitivity. Sensitivity allows you to calibrate how easily movement could trigger the alarm. A higher value results in the more readily to triggers motion detection. ⑥. Optional: Set Target Detection as Human or Vehicle to discard alarms which are not triggered by human body or vehicle. -
Page 29: Configure Alarm Linkage Action
Note Time periods shall not be repeated or overlapped. ③. Click Apply. 7.4 Configure Alarm Linkage Action Alarm linkage actions will be activated when an alarm or exception occurs. Steps ①. Click Linkage Action. ②. Set normal linkage actions, alarm output linkage actions, trigger channel, etc. Alarm Pop-up Window The local monitor will pop up the alarming channel image when an alarm is triggered. -
Page 30: Chapter 8 Recording Management
Chapter 8 Recording Management 8.1 Storage Device Initialize HDD A newly installed hard disk drive (HDD) must be initialized before it can be used to save videos and information. Before You Start Install at least an HDD to your video recorder. For detailed steps, refer to Quick Start Guide. Steps ①. -
Page 31: Configure Recording Schedule
8.3 Configure Recording Schedule You can configure the recording triggered by the motion detection, line crossing detection, and intrusion detection. Steps ①. Go to Configuration → Event → Smart Event . ②. Configure the event detection and select the channels to trigger the recording when an event occurs. -
Page 32: Configure Recording Parameter
Draw Schedule a. Click to select schedule type as Continuous or Event. b. On the table, drag the mouse on the desired period to draw a colored bar. 5. Click Apply. 8.5 Configure Recording Parameter Steps 1. Go to Configuration → Record → Parameter . 2. -
Page 33: Chapter 9 Playback
Chapter 9 Playback 9.1 GUI Introduction Go to Playback . • Position the cursor on the timeline, drag the timeline to position to a certain time. • Period marked with blue bar contains video. Red bar indicates the video in the period is event video. •... -
Page 34: Event Playback
9.3 Event Playback When you select the event playback mode, the system will analyze and mark videos that contain the motion detection, line crossing detection, or intrusion detection information, . Before You Start • Ensure the camera has enabled Dual-VCA. You can enable it via the camera web browser interface in Configuration →... -
Page 35: Back Up Clip
4. Position the cursor on playback window to show control bar. 5. Click to set detection areas of line crossing detection, intrusion detection, or motiondetection. 6. Click to search videos. Videos meet the detection rule requirement will be marked in red. 7. -
Page 36: Chapter 10 Remote Control
Chapter 10 Remote Control 10.1 Accessing by mobile GuardingVision Anpviz@gmail com - 28 -... - Page 37 - 29 -...
- Page 38 - 30 -...
-
Page 39: Chapter 11 Web Operation
Chapter 11 Web Operation You can get access to the video recorder via web browser. You may use one of the following listed web browsers: Internet Explorer 6.0 to 11.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024×768 and above. https://www.anpvizsecurity.com/software-tools-hk-series-a00062a1.html If you have changed HTTP port, enter http://IP address:HTTP port in address Note... - Page 40 5. Click Configuration to enter configuration interface. - 32 -...
-
Page 41: Chapter 12 Accessing By Client
Chapter 12 Accessing by Client IVMS4200 https://www.anpvizsecurity.com/download/h-series_c0037 IVMS4200 - 33 -... - Page 42 - 34 -...
- Page 43 - 35 -...
-
Page 44: Chapter 13 Software Download And Faq
Chapter 13 Software Download and FAQ 13.1 Software Download https://www.anpvizsecurity.com/download/h-series_c0037 H Series 13.2 FAQ - 36 -... - Page 45 https://www.anpvizsecurity.com/download/h-series_c0037 - 37 -...
- Page 46 d. As the file has a valid period, please send an email to Support@anpvizsecurity.com immediately after exporting the file, and let us know that you have forgotten the password. Our technical engineer will send you a keyfile back. Please don't restart the DVR after the file is exported, otherwise the file will immediately becomeinvalid.
- Page 47 Installation Video Guide or Trouble Shoot Video Guide Anpviz Security For more instruction, please download the detailed user manual from https://www.anpvizsecurity.com/download/h-series_c0026 Support@anpvizsecurity.com - 39 -...
- Page 48 Anpviz Security Eletronics Limited Anpviz Security...
Need help?
Do you have a question about the H Series and is the answer not in the manual?
Questions and answers
Model number: NVR7608Q18P-2TB has continuous beeping. How do we troubleshoot and silence the beeping. Beeping started a year after installation.
To troubleshoot and silence the continuous beeping on the ANPVIZ NVR7608Q18P-2TB model:
1. Check Hard Drive Status: The NVR beeps every 30 seconds until the hard drive is formatted.
2. Format the Hard Drive: Go to the NVR setup interface and format the hard drive.
3. Confirm Recording Settings: After formatting, the NVR will default to continuous (24/7) recording.
Once the hard drive is properly formatted, the beeping should stop.
This answer is automatically generated
