Missouri Wind and Solar POLE 200W Quick Start Manual

Double Solar Panel Top of Pole Mounting Rack Assembly
See more about this product on YouTube at:

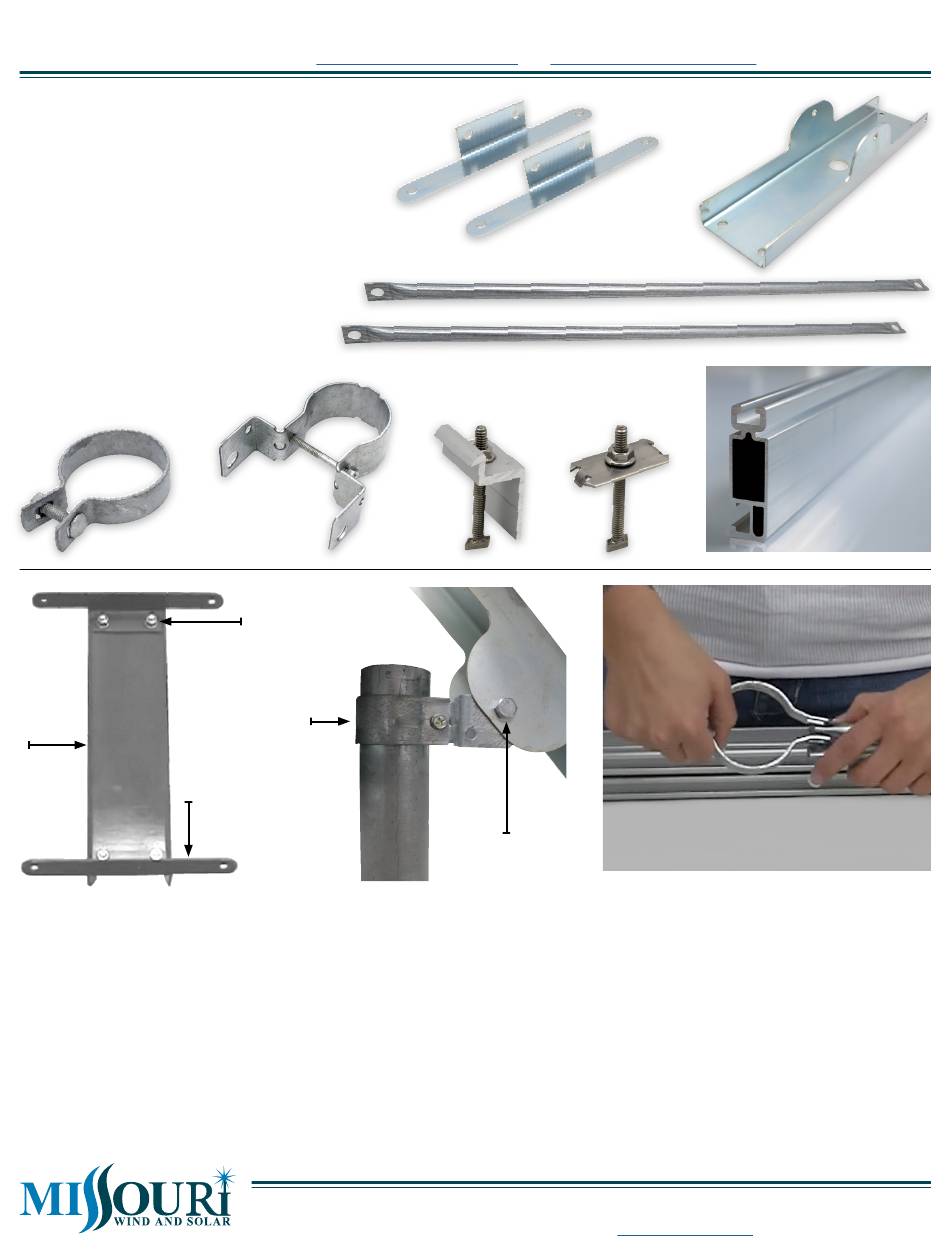

Parts List:

(2) solar mount end bracket
(1) 16" mount plate
(2) ½" x 30" EMT support arm
(1) 2-⅜" brace band
(1) bolt for brace
(1) 2-⅜" pipe grip tie
(4) UniRac SolarMount "B" end clamp
(2) UniRac SolarMount "EF" mid clamp
(2) 5' sections SolarMount rail
(12) ⅜" bolt
(12) ⅜" lock nut*
*YouTube video shows locking washers. These
are no longer included in the kit as they have
been replaced with lock nuts.
Brace Pipe
band grip
tie
Bolt at
exterior
Mount
plate
Solar mount
end bracket
Solar Mount End Bracket
to Mount Plate Assembly
Connect each of the solar mount
end brackets to the mount plate
using the ⅜" bolts and lock nuts,
as illustrated above.
https://youtu.be/tZ7blvUkGTY
Solar mount
end bracket
Support arms
UniRac
SolarMount
"B" end clamp
Pipe
grip
tie
Pipe Grip Tie to
Mount Plate Assembly
For this step, you will need the
mount plate assembly and the
pipe grip tie. Connect the 2-⅜"
pipe grip tie to the mount plate
assembly using two sets of
⅜" bolts and lock nuts. The bolt
head should be on the exterior
of the mount plate. Hand
tighten only.
Blow Hard + Shine Bright
and https://youtu.be/KgKnyGXBqUI
UniRac
SolarMount
"EF" mid clamp
Mount
plate
Bolt head
at exterior

Support Arm to Brace Band Assembly

Connect the two support arms to the
2-⅜" brace band using one set of
⅜" bolts and lock nuts. One arm will be
assembled inside the brace band and
one arm will be attached on the outside
as shown in the illustration above.
Slide the assembled brace band and
support arms onto the pole. Mount the
assembled mount plate on the top of the
pole and tighten using a screwdriver.
332 Cobble Stone Drive, Seymour, MO 65746
www.mwands.com
Model: POLE_200W
Date: 07/2018
Page: 1 of 2
Mount
plate
UniRac
SolarMount
Rail
• (417) 708–5359
