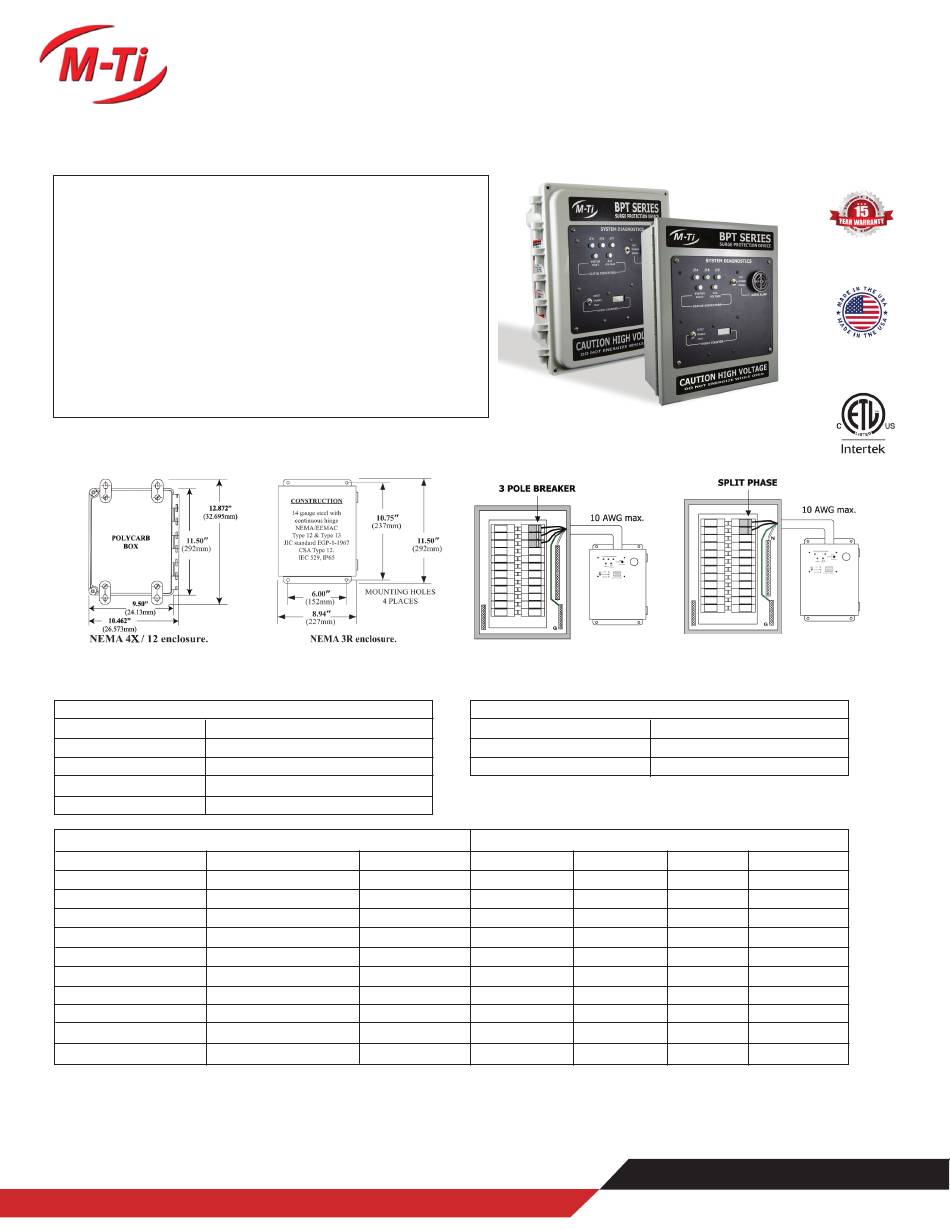

M-TI BPT Series Quick Start Manual

BPT Series
The BPT Series is a Transient Protection System that provides heavy-duty
surge protection and filtering for industrial and commercial sites against the
harmful effects of transient energies induced on AC power lines. The BPT's unique
construction allows it to deliver low clamping voltages while safely handling
large surge currents. Configured for parallel installation, units install quickly and
easily. All models are suitable for Type 1 or Type 2 service panel applications.

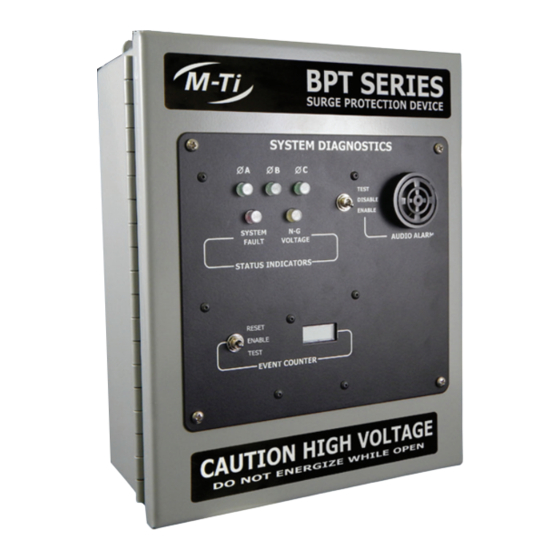

On-board diagnostics include a panel display equipped with LED indicators that
continuously monitor the operational status of the entire unit. An Audible
Alarm is standard with switch positions for test, disable and enable. A Surge
Counter and a set of NO/NC dry contacts are also standard. A Remote Monitor
and/or Filter are available as options.
Weather Resistant models available in a NEMA 4X housing with internal
diagnostics for harsh environments. Audible Alarm and Surge Counter are not
included with the NEMA 3R model.
Dimensions
Product Specifications
I 10/20 kA
n
Max Surge Current 300kA per Phase
Fusing Coordinated Surge & Thermal
Short Circuit Current 100kA RMS Symmetrical Amps
Enclosure Ratings NEMA 4, 4X & NEMA 12
Model Number
BPTXXX/120-10-#-1 120 Volt Single Ø
BPTXXX/120-SP-#-1 120/240 Volt Split Ø
BPTXXX/120-3W-#-1 120/208 Volt 3Ø Wye
BPTXXX/120-3H-#-1 120/240 Volt 3Ø HL Delta
BPTXXX/240-3D-0-1 240 Volt, 3Ø Delta
BPTXXX/220-3W-#-1 220/380 Volt, 3Ø Wye
BPTXXX/230-3W-#-1 230/400 Volt, 3Ø Wye
BPTXXX/240-3W-#-1 240/415 Volt, 3Ø Wye
BPTXXX/277-3W-#-1 277/480 Volt, 3Ø Wye
BPTXXX/480-3D-0-1 480 Volt, 3Ø Delta
1. Replace XXX with: desired kA rating per phase: 100 for 100kA or 200 for 200kA or 300 for 300kA. 2. Replace # with: F if filtering is required (available option on WYE Models only).
3. Add: /RM at the end of the Model Number for the Remote Monitoring option.
Meter Treater Inc.: 1349 South Killian Drive • Lake Park, FL 33403
Sales: 561.845.2007 Toll: Free: 800.638.3788 Fax: 561.848.2372
(Diagrams not drawn to scale)
Service Voltage MCOV
150Vac
150Vac
150Vac
150/320Vac
320Vac
320Vac
320Vac
320Vac
320Vac
520Vac
Commercial/Industrial Panel
Surge Protection Device
Typical Installations
Mechanical/Environmental Specifications
Diagnostics
Safety Standards
Operating Frequency
L - N L - G
600V 600V
600V 600V
600V 600V
600/1000V 600/1000V
N/A 1000V
1000V 1000V
1000V 1000V
1000V 1000V
1000V 1000V
N/A 1800V
4. ENCLOSURE HOUSING OPTIONS: Add /POL to the end of the Model Number for NEMA 4X
NonMetallic or /SS for NEMA 4 Stainless Steel or /WP for Weatherproof.
LED, Audible Alarm, Surge Counter
UL 1449 (most current)
50/60 Hz
VPR
N - G L - L
700V N/A
700V 1200V
700V 1200V
700V 1200/1500V
N/A 1200V
1000V 2000V
1000V 2000V
1000V 2000V
1000V 2000V
N/A 4000V
All product dimensions provided are ± 0.125
Email: sales@metertreater.com
Website: www.metertreater.com
MT-BPTSERIES-3/18
