Grow Tent Assembly Instructions
TM
Parts:
Connector A x 4
Connector B x 4
Pole C x 2
Pole D x 2
1 - Lay tent canvas flat on floor
and unzip all zippers as shown.

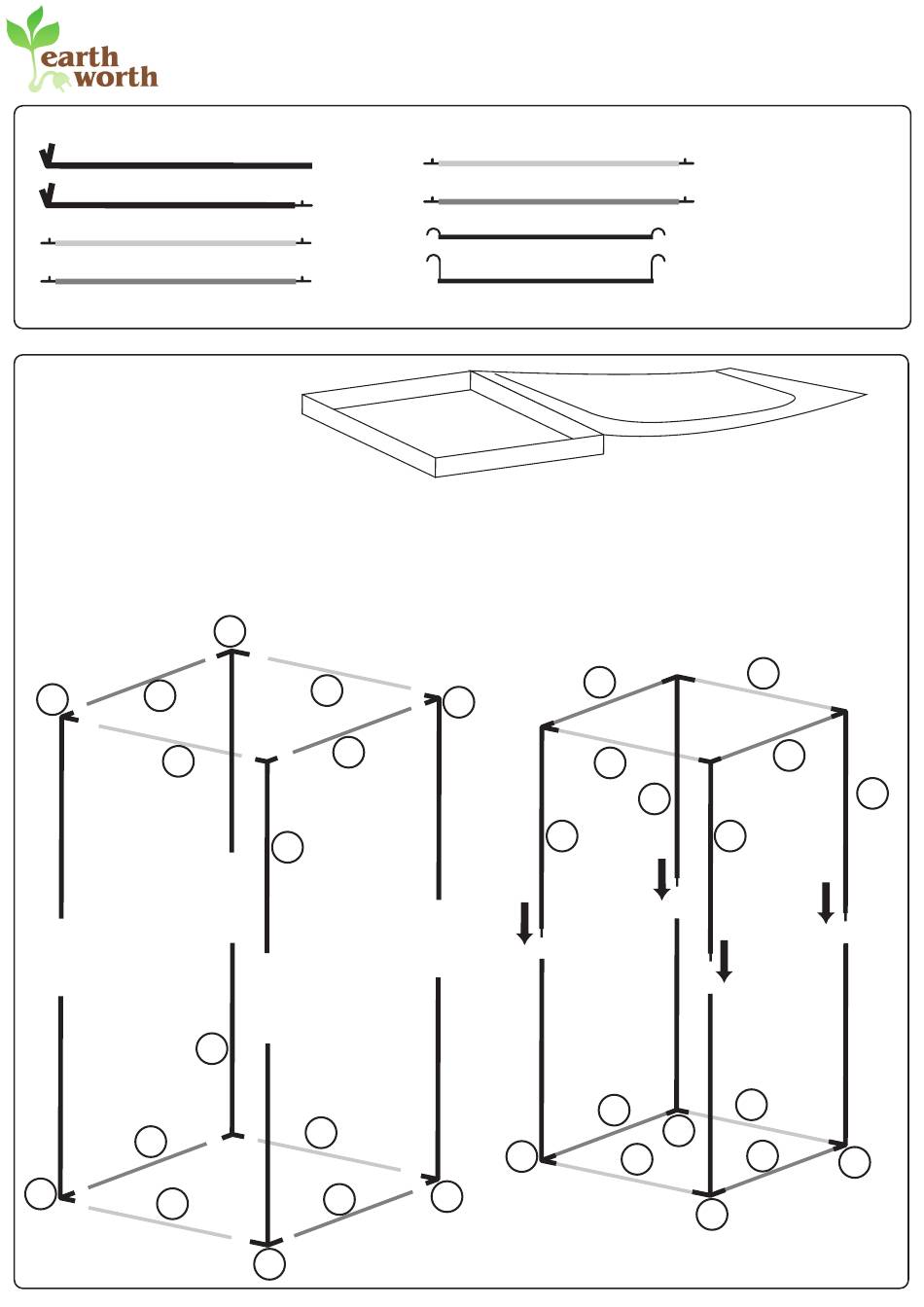

2 - Assemble top and bottom sections of the tent frame as shown below.
Layout a square with poles C and D opposite each other and insert onto connectors A as shown.
Layout a square with poles E and F opposite each other and insert onto connectors B as shown.
3 - Connect the upper and lower tent frames to each other as shown, you may require assistance or need to lay
the frame halves on floor.
F
B
E
A
D
A
C
B
E
F
B
C
D
A
1851 EW-32x32x63 Mylar Hydro Shanty
Pole E x 2
Pole F x 2
Straight Support G x 1
Support Pole H x 2
Tent Bottom
B
B
A
A
Tent
E
F
E
B
B
C
D
A
D
C
A
www.earthworth.com
Copyright 2011 DTX International
F
B
A
