USER MANUAL FOR

VPOD Wireless TENS, EMS & NMES Unit

MASSAGE

THERAPY

CONCEPTS

Table of Contents

Need help?

Do you have a question about the VPOD TUW20 and is the answer not in the manual?

Questions and answers

Phillip

June 24, 2025

Unable to charge VPOD; light is steady, solid Red. How do I reset the device

Summary of Contents for Massage Therapy Concepts VPOD TUW20

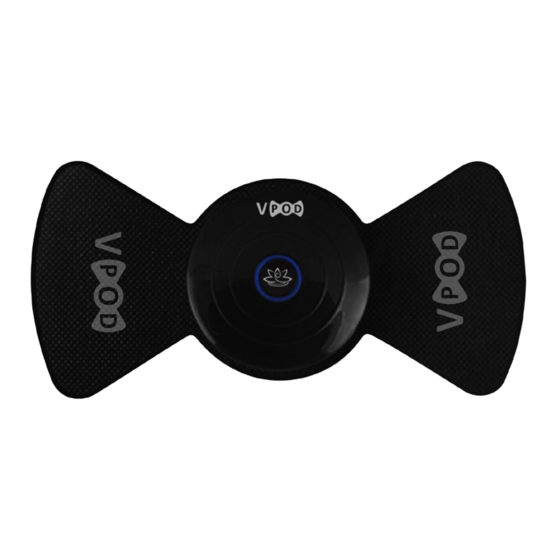

Page 1 USER MANUAL FOR VPOD Wireless TENS, EMS & NMES Unit ® MASSAGE THERAPY CONCEPTS...
Page 2: Table Of Contents
Table of Contents Introduction Safety Instructions Intended Use Contraindication Important Safety Precautions Battery Handling and Usage Cautions Adverse Reactions Package Contents Part Names and Functions on the Device Defining TENS, EMS and NMES VPOD Key Benefits...
Page 3 Operating Instructions Starting Your Treatment Screen Functionality Storing and Removing Cleaning VPOD Modes Troubleshooting Speciffications Limited Warranty...
Page 4: Introduction
INTRODUCTION Thank you for purchasing the VPOD Wireless Tens Unit. The VPOD tens unit can work with one or two VPODS at the same time. This wearable electrotherapy device is designed to alleviate chronic muscle and joint pain on multiple body locations. It delivers TENS (Transcutaneous Electrical Nerve Stimulation) technology and EMS therapy through the simple, convenient control of the VPOD iOS or Andriod app.
Page 5: Safety Instructions
SAFETY INSTRUCTIONS This instruction manual provides you with important information about this device. To ensure the safe and proper use of this device, read and understand all of the safety and operating instructions. INTENDED USE The VPOD is intended for the relief of pain associated with sore and aching muscles of the lower back, arms, legs, shoulders and feet due to strain from exercise or normal every day and work activities.
Page 6: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS • Use under the guidance of your medical practitioner • Do not use this unit near shortwave therapy equipment • Do not place electrode pads near your heart • Stop using the VPOD immediately if you feel any abnormality in your body or if you suspect the VPOD is not operating normally • Treatment time should not exceed 60 minutes • Turn off the VPOD before you do vigorous movements, remove, or change positions of the electrode...
Page 7 Do not use the device if you have any of the following medical conditions: • • Implanted cardiac pacemaker, defibrillator or other implanted metallic or electronic devices If you are pregnant • If you have epilepsy • • Consult your medical practitioner if you have the following conditions: Diagnosed with cancer •...
Page 8 Also, do not place the electrode pads on the head, temples, eyes, mouth, throat (especially the carotid sinus) or placed on the thorax and the upper back or passing through the heart. Do not use on genitals, skin lesions, infected areas, open wounds, rashes, swollen, red, infected or •...
Page 9 • Do not apply stimulation in the presence of electric monitoring equipment such as cardiac monitors and ECG alarms because the equipment may not operate properly when the device is in use • Keep away from other electronic equipment • Never bend or fold the pads • Apply the pads only to normal, intact, clean, healthy skin of adult patients • For hospitals and clinics: Operation in close proximity (ex 1m) to shortwave or microwave therapy ME equipment may produce instability to the stimulator output...
Page 10: Battery Handling And Usage
BATTERY HANDLING AND USAGE • To prevent the risk of overheating, fire or explosion: Do not puncture, crush, disassemble or modify the device • Do not throw the device into fire • • Do not recharge, use or leave the device in any high temperature environment such as in a location near a fire or in direct sunlight •...
Page 11: Cautions
CAUTIONS If you suspect or have been diagnosed with heart issues, use only under the recommendation of • your doctor If you suspect or have been diagnosed with epilepsy, you should follow precautions recommended • by your physician Consult with your physician prior to using the device after recent surgical procedures because •...
Page 12 Do not overlap or put the pads on top of each other because therapy may weaken or stop • Do not leave the pads placed on the skin after treatment • Do not apply any lotion, cream or ointment to the pads •...
Page 13: Adverse Reactions
ADVERSE REACTIONS If you experience skin irritations, headaches or other painful sensations during or following the • application of electrical stimulation, consult with your physician prior to continuing using the device...
Page 14: Package Contents
PACKAGE CONTENTS VPOD TENS/EMS Unit with a rechargeable lithium-ion battery • 1 Large Pre-gelled single-sided electrode pad • 2 Medium Pre-gelled single-sided electrode pads • Electrode pad holder • • Hard-cover travel case organizer for your VPOD and accessories USB to micro-USB adapter charging cable •...
Page 15: Part Names And Functions On The Device
PART NAMES and FUNCTIONS ON THE DEVICE Front Color indicator Blue Light Blinking – Waiting to be paired with a Light Indicator smartphone Red Light Blinking – Device A is paired and in use Power Button Green Light Blinking – Device B is paired and in use Solid Blue –...
Page 16 Back Connection Holes: These holes are used to attach the VPOD to the pad...
Page 17: Defining Tens, Ems And Nmes
DEFINING TENS, EMS and NMES What is TENS? The term TENS means Transcutaneous Electrical Nerve Stimulation is a weak electrical current applied to the surface of the skin to stimulate the nerves beneath. TENS devices are available without a prescription and are used as a non-invasive nerve stimulation method intended to reduce both acute and chronic pain.
Page 18 What is NMES? The Term NMES is Neuromuscular Electrical Stimulation. It is a safe, low-frequency current that sends small electrical impulses to nerves causing contractions, blocks pain pathways & reduces swelling and edema. The electrical stimulation can increase strength and range of motion and offset the effects of disuse. It is often used to “re-train”...
Page 19: Vpod Key Benefits
VPOD KEY BENEFITS TENS, EMS, NMES – 3 Therapies in one device • Wireless – User friendly app for iPhone and Andriod • 24 Modes – for pain relief and muscle recovery • Full Body – muscle, nerve, join relief and recovery for back, shoulders, hips, legs, elbows, knees and •...
Page 20: Operating Instructions
OPERATING INSTRUCTIONS PREPARING FOR USE Before using the device, inspect these items and ensure that the pads are not damaged, and that the device is intact and working FIRST TIME USE STEP 1 - CHARGING VPOD To charge your VPOD, insert the micro-USB plug of the adapter cable into the VPOD Plug the other end of the cable with the USB plug into the wall adapter or computer When charging is complete, remove the plugs and the charger.
Page 21 STEP 2 - INSTALLING THE APP Make sure the Bluetooth on your smartphone is turned on Download (from Apple Store or Google Play Store) the free Open the app on your smartphone STEP 3 - ATTACHING THE VPOD TO YOUR BODY Remove the clear plastic film from the electrode pad Push the VPOD terminal into the contacts on the outside of the pad Firmly apply the pad to the desired part of your body...
Page 22 FOR OPTIMAL THERAPY If using 2 VPODS at the same time, make sure that the pads are at least 1 inch apart • Do not overlap the pads or put them on top of each other • Do not apply any lotion, cream or ointment to the pads •...
Page 23 Apply Pads To These Body Parts Never Apply Pads Head Shoulders Throat Chest Heart Joint Elbow Lower back Joint Genitals Knee Calf...
Page 24: Starting Your Treatment
STARTING YOUR TREATMENT Check the box to begin to agree with the Bluetooth the terms of setup use. Then tap START.
Page 25 Press the button on the VPOD device Pair to allow your phone or tablet to connect with the VPOD device...
Page 26 Device A has been paired. Tap Next. Your device shows the 24 TENS and EMS modes. Tap to select a mode...
Page 27: Screen Functionality
SCREEN FUNCTIONALITY Device A - 1st Pod Device B – 2nd Pod Tens Mode and EMS Mode are displayed in red when in use. Some modes will have both Tens and EMS. Three Bars (hamburger) Menu Button Timer r - displays total time and time remaining Lock feature Increase intensity Decrease intensity...
Page 28 To start your mode tap the icon. To begin your TENS or EMS session tap to When a mode is select a mode activated, tap – or + to select the intensity from 1-20...
Page 29 To view the mode description double tap or hold the function for 2 seconds...
Page 30 USING 2 VPOD DEVICES SIMULTANEOUSLY Press the power button To add a device, on Device B tap the menu and tap Add device Press Pair to pair Device B...
Page 31 Device B is Device B has active been added and paired Press Next to see Device B functionality screen...
Page 32 When finished with your session, turn off the VPOD by pressing the power button. Remove the VPOD from the pad. Remove the electrode pad from your body and place it on the electrode pad holder to protect the adhesive side of the pad. When the VPOD is powered off, the VPOD app will return to the START screen.
Page 33: Storing And Removing
STORING AND REMOVING STORING THE PADS ON THE PAD HOLDER • In between uses, it is best to keep the pads on the pad holder inside the travel storage case • Do not keep the device in areas subject to direct sunlight, high or low temperatures, humid areas, near fire •...
Page 34: Cleaning
CLEANING CLEANING THE PADS Remove the VPOD from the pads. Never wet or submerge the pads in any liquid. When the pads become dirty or soiled you can clean the adhesive side of the pads by wiping the surface with a soft cloth moistened with water. The non-adhesive side of the pad can be wiped with water or neutral detergent.
Page 35 Cleaning the VPOD Device Turn the device off Wipe the surface with a soft cloth moistened with water. Then wipe the surface with a dry soft cloth to remove any extra water. Do not use chemicals Do not let any water get into the internal area of the device...
Page 36 NOTES • Intensity should be set at a level where you will feel some muscular vibration and involuntary muscle movements. It should be set to give a comfortable intensity and should not be painful. • Timing of application should be at least 10 to 20 minutes •...
Page 37: Vpod Modes
VPOD Modes We suggest that you initially experiment using each of the modes. The mode or combination of modes that gives you the most desirable sensations and comfort is the most appropriate one for you to use. Acupuncture is a massage therapy technique based on the theories of Traditional Chinese Medicine that involves the insertion of fine wires (needles) into specific spots to remove blocks and boost the body’s inherent ability to heal itself.
Page 38 Cupping is a technique that has been used for thousands of years in ancient medicine in which evacuated cups are applied to the skin to draw blood through the surface. Cupping is used to relieve back and neck pains, stiff muscles, anxiety, fatigue, migraines, Cupping rheumatism, and even reduction of cellulite.
Page 39 Tapping is a light percussion movement, often appropriate for small areas of the body. By tapping the tendons or muscles, you increase the body’s natural blood flow and oxygen supply to the target area. It breaks up the lactic acid and muscular toxins and can reduce stress while relaxing the muscles.
Page 40 Tui Na simulates hands-on body treatment which opens the flow of Qi (Chee) through the body’s meridian lines. It’s especially effective for joint pain, sciatica, muscle spasms, back pain, neck and shoulders. It also helps chronic conditions such as insomnia, constipation, headaches, and tension associated with stress.
Page 41 Kneading simulates the thumb fingers and palms of a real massage therapist. It focuses on hypertension and stress and helps to break that down by returning full range of motion and flexibility while treating tight muscles and decreases pain. It helps improve blood circulation, thereby promoting overall body strength and well-being.
Page 42 The stretching mode is designed to extend the limb muscles while releasing tension. It helps to improve the muscle’s elasticity and achieve muscle tone. The result is a feeling of increased muscle control, flexibility, and range of motion. It increases blood flow to your muscles and helps maintain a range of motion in the joints.
Page 43 Shiatsu mode simulates a massage that puts the focus on pressure points of various parts of the body. It helps with healing from sprains, arthritis, neck and shoulder stiffness, upper and lower back pain, sciatica, digestive disorders, menstrual pain, fatigue, fibromyalgia and musculoskeletal pain. Shiatsu TENS Trigger point therapy is a more aggressive, direct manipulation of muscular tightness in...
Page 44 Butterfly Massage is a gentle technique which works with a soft and delicate touch, helping melt away tension in the whole body, relieving symptoms of stress, promotes relaxation, and improves overall health and wellness. Butterfly Lomi lomi is a traditional Hawaiian massage to help the body let go of its old patterns and behaviors which cause stress, strains and muscle tension.
Page 45 Swedish massage helps increase the level of oxygen in the blood, decrease muscle toxins, improve circulation and flexibility while easing tension. This technique aims to promote relaxation by releasing muscle tension. Swedish massage loosens up tight muscles caused by daily activities such as sitting at the computer or exercising.
Page 46 Reflexology is a type of massage that involves applying different amounts of pressure to the feet and hands. It’s based on a theory that these body parts are connected to certain organs and body systems. Reflexology is generally relaxing and may help alleviate stress. Reflexology TENS This mode continuously provides low frequency vibrations to promote circulation of...
Page 47 This mode applies electronic muscle stimulator technology which helps improve muscle core strength, firms as well as tones your ab muscles. It also improves resting tone which means your stomach muscles would do a better job of holding your stomach flat. Much like conventional exercising, this repetitive contracting and relaxing makes the muscles toned and tight.
Page 48 This mode helps speed up recovery after high-intensity workouts and allow you to train harder. The muscle pumping activity helps with circulation and decreases swelling in the lower limbs without requiring additional impact or exercise. Recovery This mode combines Acupuncture, Cupping and Knocking. Combination TENS &...
Page 49 NMES treats muscle atrophy and stimulates the muscle when the individual is in a resting state. NMES targets the muscle itself, specifically through the motor nerves. This creates a muscle contraction to recruit more muscle fibers when training, warming up or recovering.
Page 50: Troubleshooting
TROUBLESHOOTING Q Intensity level is not felt or is too weak • Check that the pads are placed correctly. Make sure they are not overlapping with one another • Make sure you have selected the proper mode and it is currently running and the stop button is not pressed •...
Page 51 Q The device power doesn’t turn on • Charge the battery for several hours and try again Q The device cannot be charged • Check if the AC Adapter is properly connected to the charger and the power outlet • If the device is near high heat or cold temperature, it may affect the recharging.
Page 52 Q The adhesive side of the pad does not stick to the skin • Make sure you have removed the plastic film on the pad prior to using it • Your skin should be dry and clean prior to applying the pads on to the skin •...
Page 53 Q Can I use the unit while it is being charged? A No you cannot use the unit while it is being charged. You must disconnect it from the wire sprior to use. Q If issues still persist and are not answered above what should I do? A Contact us at support@massagetherapyconcepts.com...
Page 54: Speciffications
SPECIFICATIONS Product Name: VPOD Model #: TUW20 Power Source: AC Adapter (Input AC 100-240 V, 50-60 HZ, 0.4A) 1 Lithium-ion battery (3.7V/180MA) Frequency: Approx 1Hz~200Hz Pulse Duration: 100-350μS Maximum Output Current: 280~350UA Power Control: 20 Intensity Levels Modes: 24 Operating Temperature, humidity, air Pressure: 50-to 104F (10-40 C), 30 to 80 % RH, 700 to 1060hPa Weight: Device Approx: 23.8g Pad L: Approx 36g Pad M: Approx 29g...
Page 55 Outer Dimensions: Device: 58*14mm Pad L: 220*75mm Pad M: 165*79mm Transmission Method: Bluetooth The device is under warranty for 1 year. Pads can be used up to 30 times.
Page 56: Limited Warranty
Service options, parts availability and response times will vary. You are responsible for delivery and the cost of delivery of the product or any parts to Massage Therapy Concepts authorized service center for replacement per our instructions.
Page 57 Massage Therapy Concepts; d) accessories used in conjunction with a covered product; e) a product or part that has been modified to alter functionality or capability; f) items intended to be periodically replaced by the purchaser during the normal life of the product including, without limitation, batteries;...
Page 58 AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF MASSAGE THERAPY CONCEPTS CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES, THEN TO THE EXTENT PERMITIED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN...
Page 60 www.massagetherapyconcepts.com MASSAGE THERAPY CONCEPTS...
