Summary of Contents for Medical Freezer MPF 35L20

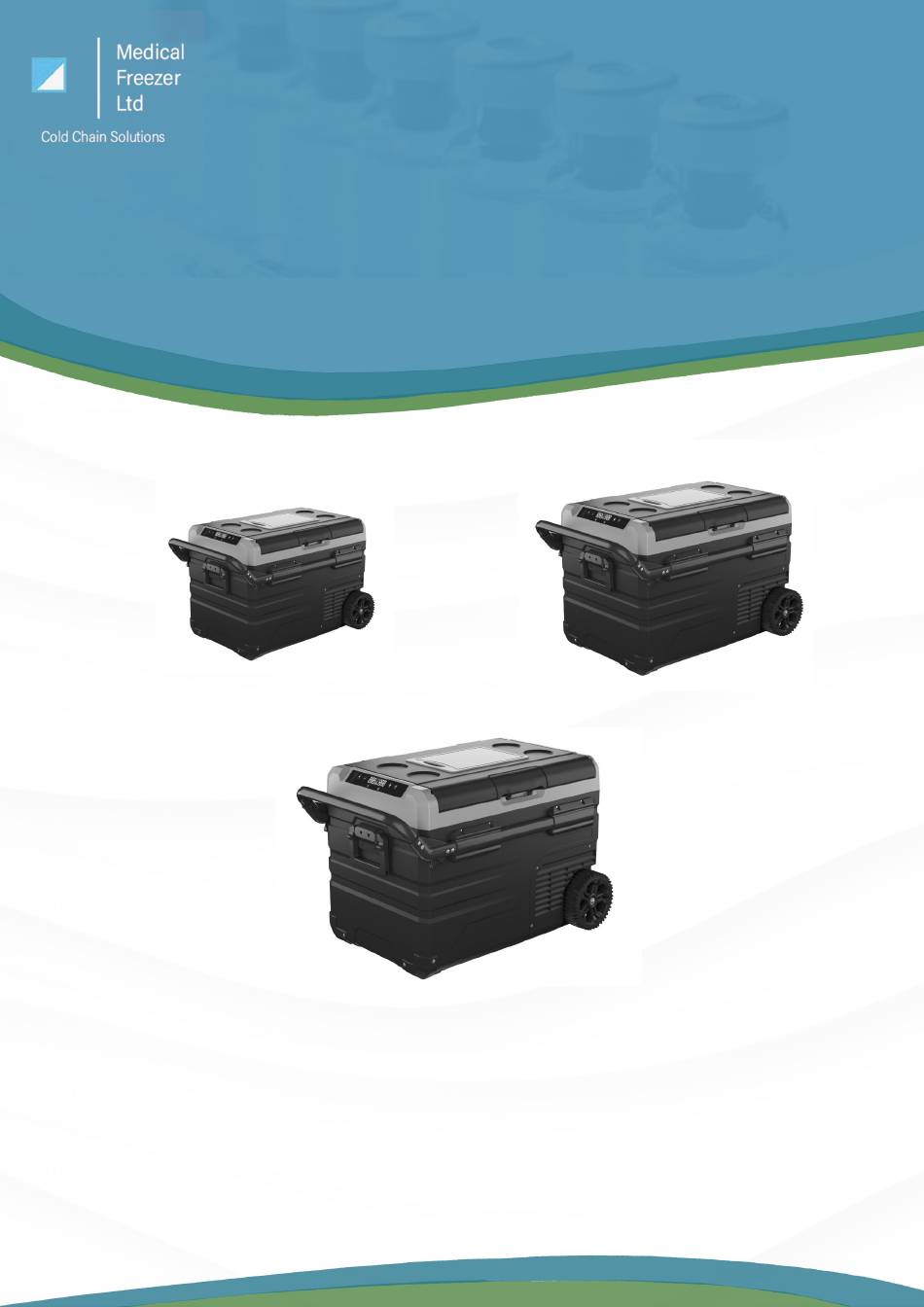

- Page 1 Medical Portable Freezer Operating Manual - MPF 35L20 / 45L20 / 55L20 Medical Freezer LTD Paul Street 86-90 Email: info@medical-freezer.com EC2A 4NE, London, Greater London Tel: +44 1865 60 0437 03-05-2021 England, United Kingdom www.medical-freezer.com...
-
Page 2: Table Of Contents
Medical Portable Freezer Read this operation manual carefully before using the product. Improper handling may result in an accident. Be sure to save this manual. Table of Contents 1. Safety Instructions 2. Product Features 3. Product Structure 4. Function and Operation 5. -
Page 3: Safety Instructions
1. Safety Instructions WARNING! Failure to obey these warnings could result in malfunction of your device and possible injury for yourself and other users. • Do not operate the device if it is visibly damaged. Do not block the gaps of the device with things like pin, wire, etc. -
Page 4: Product Features
2. Product Features • High-efficiency DC compressor and conversion module.CFC free and great heat insulation. • Lithium battery recharged by solar(12-S0V), DC12/24V or AC 100-240V (using the adapter). • Fast cooling to -20°C/-4°F (based on 25°C/77°F room temperature). • LCD digital display for temperature setting. Dual compartments with individual temperature control. -
Page 5: Function And Operation
4. Function and Operation • Power Supply: connect to 12V/24V DC power, 100~240V AC power (using the adapter), or use back-up lithium battery which can be recharged by solar (12~50V). • Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the normal operating mode. -
Page 6: Battery Operation
The battery gear should be set from H to M or from M to L if there is a voltage protection code F1 shown on the panel. The battery gear should be set to H if the product keeps working after turning off the car engine, or the product may drain the battery. - Page 7 Battery Bank Model No.: FSAK-002 Battery Capacity: 15600mAH Rated Voltage: 11.1V Charging Limited Voltage (DC): 12.6V Charging Limited Current (DC): 3A WARNING: Do not disassemble the battery! Instruction for Solar Charging: Follow the instructions below. Insert the solar charge cable into the refrigerator’ s “SOLAR” terminal. •...
-
Page 8: Cleaning And Storage
6. Cleaning and Storage 6.1 Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. • Remove the cover and drain from the hole at the bottom of the device. •... -
Page 9: Troubleshooting
7. Troubleshooting Operating Manual - MPF maintenance@medical-freezer.com www.medical-freezer.com... -
Page 10: Warranty And Maintenance
8. Warranty and Maintenance If the device gets malfunctional, limited warranty will be provided for 1 year from the date of purchase, except following situations: • Contrived damage. • Damage caused by force majeure such as earthquake, conflagration, etc. • Damage from inappropriate use or violating this instruction.
