Summary of Contents for AGRO PRIME AtomS

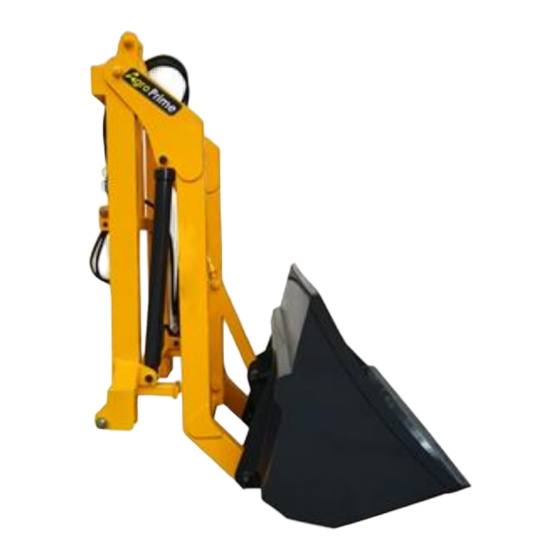

- Page 1 AGROPRİME MAKİNE DIŞ TİCARET LİMİTED ŞİRKETİ REAR LOADER OPERATION MANUAL MANUFACTURER MODELS: AtomS, AtomX AGROPRİME MAKİNE DIŞ TİCARET LİMİTED ŞİRKETİ MUHAMMET UĞUZYİĞİT Fevzi Çakmak Mah, 10640. Sk. No: 13, 42050 Karatay/Konya Tel : +90 332 251 01 51 www.agroprime.com.tr info@agroprime.com.tr...
- Page 2 Do not use the machine for purposes other than production. REAR LOADER PROPERTIES MODEL AtomS AtomX Lifting Capacity 300 kg 450 kg...
- Page 3 MACHINE, OPERATING INSTRUCTIONS 1-) Attach the loading bucket to the rear three points of the tractor. 2-) Adjust the hydraulic arms of the tractor according to the machine level. 3-) Attach the hose sockets to the outlets of the tractor dampers.
- Page 4 MOVING AND PASSENGER LOCATION • While loading the machine into the transport vehicles, you should pack it against impacts and pay attention to the outer parts of the mechanical steel. For example: hydraulic hoses. • Passenger position: If you drive a distance behind the tractor with the machine, the pistons must be pushed off the tractor with oil.
- Page 5 SAFE INSTRUCTIONS FOR USE 1. Make sure that all hydraulic cylinders are closed when making adjustments or maintenance. 2. After installing the machine in the tractor, make sure that the front or rear weights are sufficient. 3. Nobody should be under or near the machine during operation. 4.
- Page 6 IMPORTANT! The brake pedals must be locked together when using the loader. IMPORTANT! Never use the loader as a work platform. MAINTENANCE INSTRUCTIONS DAILY MAINTENANCE a.Hydraulic cylinder and hose connections, connecting pins and bolts, and the drain mechanism should be checked. ANNUAL MAINTENANCE WORK a.At the end of the work, carry out a general cleaning of the machine.
- Page 7 Emniyetiniz için kullanım kılavuzunu okuyunuz! STOP Tehlike esnasında Makina çalışırken traktörü stop edin! uzakta durun!
- Page 8 Ürün açıklaması / Product description : Traktör arka yükleyici /Rear Tractor Loader Bucket Marka/Brand: Agroprime Seri No/Serial Number : ..Tipi/Type : AtomS /AtomX İmaI Tarihi/Manufacturing Date: 20..Deklerasyon /Declaration AGROPRİME MAKİNE DIŞ TİCARET LİMİTED ŞİRKETİ- Muhammet UĞUZYİĞİT olarak yukarıda bilgileri verilmiş olan ürünün aşağıdaki a Avrupa Birliği direktiflerine, Standartlara ve bunların gerektirdiği şartlara uygun olduğunu beyan ederiz.
