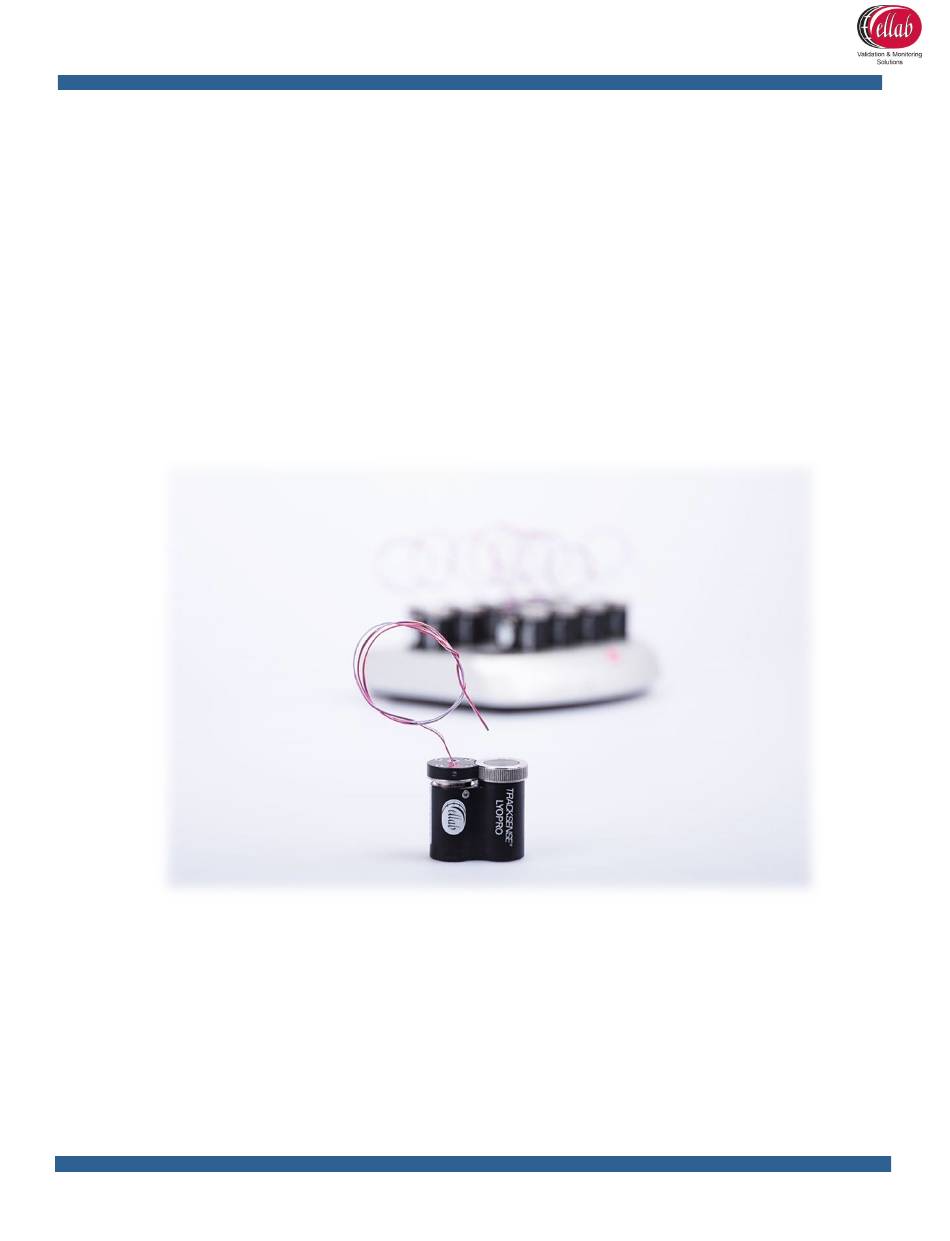

- Page 1 TrackSense LyoPro ® User Manual TrackSense ® LyoPro Version BETA Page 1 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 2: Table Of Contents
Online Activation - The PC is Connected to the Internet ......13 4.1.1. Manual Activation – The PC is Not Connected to the Internet ....14 4.1.2. Releasing the License ..................15 How to Start Logging Data with TrackSense LyoPro ..........15 ® TrackSense LyoPro Loggers .................. - Page 3 LyoPro Equipment Warranty ............42 12.2. Extended Warranty ....................42 13. Technical Specifications ....................43 14. FAQ ............................. 44 15. Changelog ........................46 TrackSense ® LyoPro Version BETA Page 3 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 4: Safety Information
Equipment used for applications other than these studies is used at the discretion and sole responsibility of the customer. Ellab cannot accept any responsibility for the use of equipment for any application other than thermal validation, monitoring and stability studies. -
Page 5: Electrical Hazards
Do not allow them to be dropped, struck, stressed or overheated. TrackSense Clock (Internal) When using TrackSense LyoPro loggers, ValSuite will start an internal clock in the logger. Beware that the max time deviation at 23 °C will be +/- 5 seconds over 24 hours. -
Page 6: Directives
1.4.2. Low Voltage (Safety) In order to comply with the European Low Voltage Directive (LVD) 2014/35/EU), Ellab equipment has been designed to meet the EN 61010-1 standard. 1.4.3. Waste Electrical and Electronic Equipment Ellab meets the European Community directive 2012/19/EU... -
Page 7: Arib
Ellab LyoPro equipment has been tested to comply with the requirements in the Japanese standard ARIB STD-T66 (Low-Power Data Communication System/Wireless LAN System). 1.5. Ellab Service Please contact your local Ellab sales representative for the proper service center location. Contact information can be found at www.ellab.com. TrackSense ®... - Page 8 When contacting Ellab for support, please have the following information available: • Model Number • Serial Number • Voltage • Complete description of the problem • ValSuite Software Version TrackSense ® LyoPro Version BETA Page 8 of 46 User Manual...
-
Page 9: New Order Contents
2. New Order Contents When a new system is ordered, the equipment is shipped in a custom Ellab suitcase. The suitcase contains the following products: ® 2.1. TrackSense LyoPro Orders • Suitcase • Reader Station • Power supply • Accessories Box •... -
Page 10: Master Reader Station
Connected to PC via USB or LAN (ethernet) • Only 1 master reader station can be used at a time 3.2. Communication Setup All TrackSense LyoPro 10-slot Reader Stations can be connected to PC via USB or LAN (ethernet). 3.2.1. USB connection •... -
Page 11: Lan Connection
Read and note the reader station IP address located under the station Open the ValSuite user menu, LyoPro Hardware Settings Choose “Ethernet” and enter the IP address and Alias TrackSense ® LyoPro Version BETA Page 11 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 12: Valsuite ® Software Installation Requirements
Note: Do not update the ValSuite software during active sessions. The logger list will be updated and replaced with a new, empty list. TrackSense ® LyoPro Version BETA Page 12 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 13: Activating Valsuite
Online Activation - The PC is Connected to the Internet If the PC is connected to the internet, select the Online activation option Write the license key (38 digit) from the Ellab e-mail, using the copy and paste function License key example:... -
Page 14: Manual Activation - The Pc Is Not Connected To The Internet
Select the Manual activation option if the PC is not connected to the internet Send an e-mail to Ellab with the computer ID Example of computer ID: F0DEF14E64E41 In the ValSuite activation field, write the License key and receive the Computer key from Ellab Select Activate. -
Page 15: Releasing The License
Click Clear License. This will remove the license from this PC. The license will then be released and ready to be used again on another 5. How to Start Logging Data with TrackSense LyoPro Starting TrackSense LyoPro Loggers: Ensure that the battery has enough capacity to cover the expected session length. - Page 16 Choose Select All and Scan. The software will automatically scan for loggers which, when found, turn dark blue and show individual ID numbers TrackSense ® LyoPro Version BETA Page 16 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
- Page 17 11. Go to LyoPro Logger List. This will showcase all active/programmed data loggers. Review the details to confirm that they were programmed correctly TrackSense ® LyoPro Version BETA Page 17 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 18: Tracksense ® Lyopro Loggers
Reading TrackSense LyoPro Data Loggers and Creating Reports: 12. Place the data loggers into the Reader Station. Go to LyoPro Read Logger, then Select All and Scan 13. Select Read. The software will read all data loggers and display the data in the graph. -
Page 19: Proper Use
All data loggers have a unique serial number. The serial number allows compliance with GMP & GDP regulations. The serial number for the TrackSense LyoPro data logger is located on the side of the black housing. The data logger serial... -
Page 20: Disassembling / Assembling Data Loggers
BLUE terminal. Do not tighten the screws too hard in order to avoid possible damage of the thermocouple. TrackSense ® LyoPro Version BETA Page 20 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 21: Procedure For Cleaning Tracksense ® Lyopro Data Loggers
6.1.6. Procedure for Changing the Data Logger O-Ring The TrackSense LyoPro data logger contains one o-ring, which is located at the battery compartment lid. The o-ring should be inspected and if needed replaced with every battery change. Apply a light coat of grease to the o-ring. -
Page 22: 30 To -80 °C Application Recommendations
Always hold the data logger/sensor by the data logger and not the sensor 6.1.9. -30 to -80 °C Application Recommendations When using the TrackSense LyoPro data loggers in -30 to -80 °C applications, Ellab offers a few recommendations to ensure that the validation/calibration process is successful: •... -
Page 23: Proper Use Of Tracksense ® Lyopro Batteries
Proper Use of TrackSense LyoPro Batteries • The TrackSense LyoPro data loggers have a standby battery usage that will empty the battery in approx.12 months, even if the data logger is not used. It is therefore recommended to remove the battery from the data logger when it is not used for several weeks •... -
Page 24: Activating And Testing Tracksense ® Lyopro Battery
7.1.2. Activating and Testing TrackSense LyoPro Battery • TrackSense LyoPro data loggers do not use enough power to activate the battery by itself. Therefore, the activator unit must be used • New batteries must be activated initially for exactly 1 hour. See the image below. -
Page 25: Calibration
8.1. Ellab Factory Calibration It is recommended that TrackSense LyoPro data loggers are returned to Ellab at least once a year for factory calibration. Ellab performs the factory calibration, which adjusts and notes a new calibration date in the data logger. A certificate is generated, and the as found / as left data are included by default. -
Page 26: In-House Calibration Solutions
If the product does not arrive at Ellab in a case, all warranty is lost and Ellab reserves the right to include a suitcase at the user’s expense upon returning the product. - Page 27 Verify that the ETS Suite is detecting the connected ETS Setup – ETS using ValSuite: If using the USB connection, install the Ellab USB driver first Disconnect all the equipment The driver can be found on the ValSuite USB Key Run the file Ellab USBDrivers_xxx.exe...
-
Page 28: Installation For Windows 7, 8 And Windows 10
115 to 230 VAC 20000159 RTC 159A -100 to 155 °C / 50-60 HZ 115 to230 20000158 RTC 158A -22 to 155 °C- VAC/50-60 Hz TrackSense ® LyoPro Version BETA Page 28 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 29: Valsuite ® Calibration Options
ValSuite software. 9. Accessories Ellab manufactures a wide range of accessories allowing the LyoPro data logger to be adapted to every standard vial from 2R to 100R. Meaning nominal volumes between 4 and 123 ml, as well as a height between 35 and 100 mm according to norm ISO 8362-1:2008. -
Page 30: Lyostopper
The LoggerNest has a built-in holder to keep the LyoPro data logger in place, even during rough handling/movements. TrackSense ® LyoPro Version BETA Page 30 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 31: Standard Versions & Reference Numbers
And they can be manufactured according to actual vial dimensions. TrackSense ® LyoPro Version BETA Page 31 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 32: Standard Versions & Reference Numbers
Making the use of a buffer vial placed in between the LyoPro data logger and sample vial worth considering. TrackSense ® LyoPro Version BETA Page 32 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 33: Standard Versions & Reference Numbers
31203021: 2R LoggerNest 31203022: 2R LoggerClip Buffer Vial 2R w. rubber stopper 31203024: 2R BufferClip Vial 2R w/o rubber stopper 31203023: 2R LyoStopper TrackSense ® LyoPro Version BETA Page 33 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... - Page 34 31203062 – 6R LoggerClip Buffer Vial 6R w. rubber stopper 31203064 – 6R BufferClip Vial 6R w/o rubber stopper 31203063 – 6R LyoStopper TrackSense ® LyoPro Version BETA Page 34 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 35: Firmware Update
USB key. Procedure for installing the firmware upgrading tools for LyoPro Reader Station and Loggers: Double click the TSLyoProFirmwareUpdateSetup_xxxxyyzz.msi program. TrackSense ® LyoPro Version BETA Page 35 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... - Page 36 Select Next. Select a folder in the Change Directory if necessary and click select Next. TrackSense ® LyoPro Version BETA Page 36 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 37: Procedure For Updating The Lyopro Logger And Reader Station Firmware
Denmark in order to be re-flashed, as it cannot be restarted manually. TrackSense ® LyoPro Version BETA Page 37 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... - Page 38 Open the firmware updater, which is placed under Programme (x86) by default, and select Ellab TS LyoPro Firmware Update Select the Loggers button and push Scan. Push Select/Deselect to toggle all checkmarks – only positions check marked will be considered.
- Page 39 Once done, the logger will appear with the new firmware as shown below. TrackSense ® LyoPro Version BETA Page 39 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 40: Procedure For Updating The Lyopro Reader Station Firmware
11.1.2. Procedure for Updating the LyoPro Reader Station firmware Open the firmware updater, which is placed under Programme (x86) by default and select Ellab TS LyoPro Firmware Update Select the Reader Station button. Push Update. TrackSense ® LyoPro Version... - Page 41 Reader Station (writing, verifying and flash bootloader and firmware). Progress will be shown as in window below. TrackSense ® LyoPro Version BETA Page 41 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
-
Page 42: Ellab Service Contract
12.2. Extended Warranty Ellab also offers an extended warranty on all new TrackSense LyoPro data loggers. The extension is from 2 to 5 years. The extended warranty needs to be purchased together with the data loggers. Contact your local Ellab sales representative for pricing. -
Page 43: Technical Specifications
Power Supply 5V AC or USB Interface Connection: USB or Ethernet (LAN) Communication: RF (Radio Frequency) 2.4 GHz Logger Capacity: 1-10 pcs. TrackSense ® LyoPro Version BETA Page 43 of 46 User Manual User Manual TrackSense LyoPro – MAN 7... -
Page 44: Faq
For additional questions and answers (FAQ), visit Ellab’s FAQ page at: www.ellab.com/contact/faq. What could be the cause of a spike in a temperature channel in ValSuite while all other channels remain constant? A battery failure and a disconnected sensor have similar results in ValSuite. The temperature will spike just before the data logger shuts down. - Page 45 Can I use my computer for other jobs while running a TrackSense LyoPro session? Yes , you can completely close your computer down if necessary. Upon reopening the ValSuite software, the software will automatically allocate the data loggers to the session that they were started in.
-
Page 46: Changelog
Changelog Edition Section Change Date Author 2020-09-21 JER/TWF TrackSense ® LyoPro Version BETA Page 46 of 46 User Manual User Manual TrackSense LyoPro – MAN 7...
