Elerillo 2243 User Manual

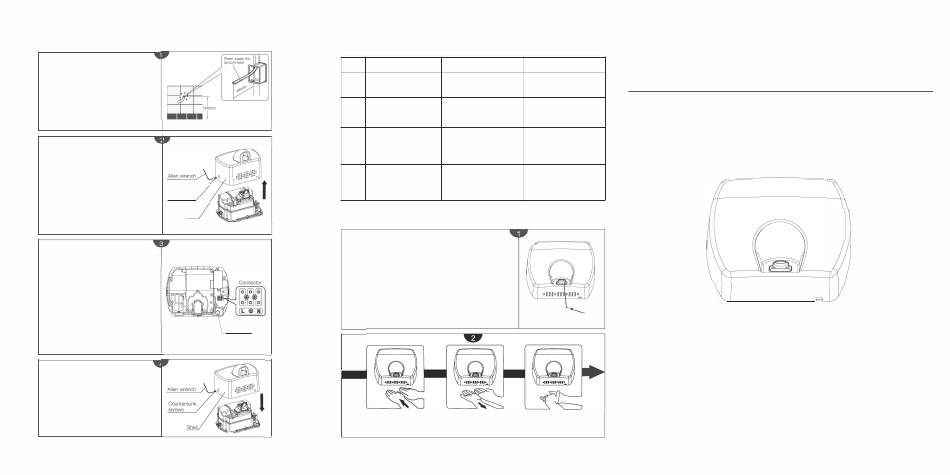

Installation Method
Connect the wire
• When installing a unit without a terminal box,
you should install above the right side of the
dryer. With the distance being 20-50cm.
• Please ensure the terminal box is securely
enclosed in the unit and not wired externally.
Cover Removal
• Using the alien key from the accessories bag
included, remove the 2 countersunk screws
from units outer cover.
• Pull the cover upwards to remove.
Countersunk
screws
Cover
Unit installation
• As -figure 3 demonstrates, the unit should be
1ixed to the wall by the screws provided.
The unit is equipped with a power cord. If
needing terminal box for installation, the power
cord must be removed.
As the -figure shows, connect wire through
thread hole to terminal box appropriately.
0 When connecting, the wire length should
exceed 2cm to terminal b lock. Fire line must
b e connected at L position of terminal blocks,
null line connected at N position, earth line
connected at@
Outer Cover Re-installation
• Tighten the 2 countersunk screws on the cover.
Test Run
Steps
Once the unit has been firmly
fixed to the wall, ensure there
1
is no movement or vibration.
Confirm the power and
voltage
2
Switch on the power
3
Place your hands
underneath the drying
to activate drying.
4
Daily Use and Maintenance
External Maintenance
0 Clean with a soft dry cloth or towel.
Please use neutral detergent.
Please do not use organic solvents, toilet
cleaners, or harsh cleaning brushes.
O This can lead to damage and/or discoloration to
the unit's surface and finish.
Thread hole
Place your hands palm-side down
and slowly move your hands
backwards and forwards.
Confirm information Check & Notice
The unit is installed firmly
There will be noticeable
without any movement.
movement/vibrations,
causing excessive noise.
Please use the rated voltage If the power use is incorrect, it
will cause an electrical surge,
or the unit to burn out.
Close external power supply The power socket must be
compatible with the unit's
switch or insert the power
plugs plug. Should it not be
compatible, the sensor light
will display dim.
Should the drying not activate,
The motor will be activated
ensure your hands are close
and the air will blow out
enough to the dryer for the
sensor to dedect motion.
Sensing
device
Place your hands palm-side Rub your hands together until
up and slowly move your hands completely dry.
backwards and forwards.

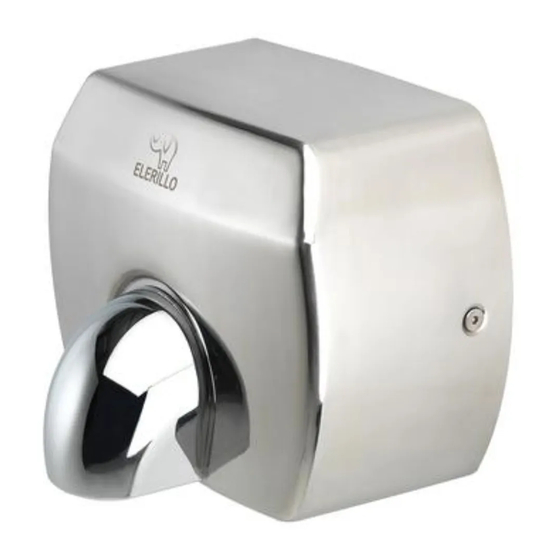

Elerillo Stainless Steel Hand Dryer I 2243
""'""'""' ===
= = = =
=============
E>E>E>
=== === ===
E> E> E> E> E> E> E> E>
�
�
User Manual
e,,
Unit 9 Stort Valley Industrial Estate,
Bishop's Stortford, Hertfordshire, CM23
2TU
E-mail: info@handydryers.co.uk
Tel: 01279 466500
Website: www.handydryers.co.uk
