USER MANUAL

TripMaster GFX v2 Pro

Firmware v2.2

Table of Contents

Need help?

Do you have a question about the TripMaster GFX v2 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for RNS electronics TripMaster GFX v2 Pro

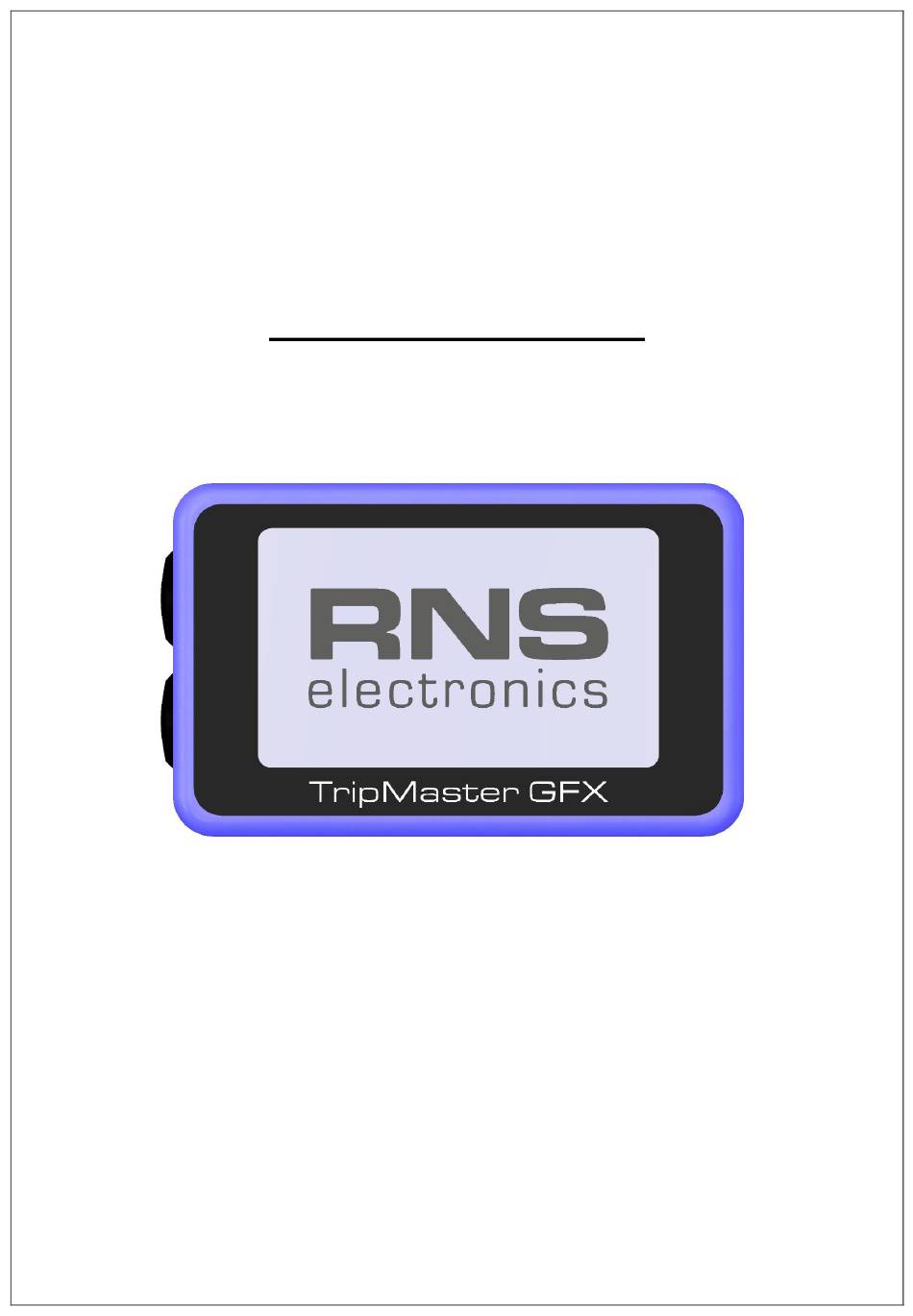

Page 1 USER MANUAL TripMaster GFX v2 Pro Firmware v2.2...
Page 2: Table Of Contents
Table of Contents Introduction ..................- 1 - Cable Connections ................- 2 - Power Supply ..................- 3 - Backup Battery ................... - 3 - Current Consumption ............... - 4 - Mounting Position ................- 5 - GPS Antenna Reception ..............- 6 - Software Functions ................
Page 3: Introduction
Welcome to the newest generation of navigation instruments by RNS electronics: the TripMaster GFX v2 Pro. Developed by rally pilots for rally pilots, the TripMaster GFX v2 Pro offers many fresh and innovative features. Special attention was paid to ensure the best possible readability and ease-of-use for the user whilst offering as many functions as possible.
Page 4: Cable Connections
Cable Connections The TripMaster GFX v2 Pro has 4 cables exiting from the rear to allow for the connection of power and accessories including: female 3-pin connector: 12V power supply • Grey male 3-pin connector: MultiSwitch remote • • Black male 3-pin connector: wheel sensor •...
Page 5: Power Supply
Power Supply In order to correctly use the instrument, it must be connected to a stable 12V DC supply on your vehicle. Ideally, the supply should be automatically switched by the vehicle, e.g. through the lighting system when the engine is started. An inline fuse of no more than 1A is recommended.
Page 6: Current Consumption
Current Consumption The external 12V supply will be used as the main source of power when connected. After 10 minutes of inactivity or movement the device will turn off automatically. Both the LED backlight and internal GPS receiver will also turn off. It is recommended to connect the instrument to a switched power supply, however it may also be connected to a permanent supply (not recommended).
Page 7: Mounting Position
Mounting Position Correct mounting of the instrument is crucial to ensure a long lifetime and reliable GPS reception. A recommended mounting location of the device is on the top of a navigation tower. Ideally, the top black face of the GFX v2 Pro should not be covered by any materials, including metals, plastics and carbon-fibre, ensuring an unobstructed clear view to the sky: Make sure to install the instrument to the mounting plate with the...
Page 8: Gps Antenna Reception
GPS Antenna Reception After external power has been connected to the GFX v2 Pro, it will start to acquire its signal from satellites orbiting the earth. The GPS icon on the LCD of the instrument will flash in any of the GPS dependent modes: Please allow for some time during the first use of the device in a new location (up to 10 minutes).
Page 9: Software Functions
Software Functions Given the availability of both a wheel sensor and GPS, the GFX v2 Pro is able to offer the rider lots of useful information. For example, it is possible to show the trip distance recorded from the rotation of the wheel or from the movement over ground via GPS. Compass heading (CAP) and speed data from GPS are also available as is an accurate atomic clock signal for the time.
Page 10: Modes
Modes - 8 -...
Page 11: Button Control Legend
Button Control Legend There are two ways to take full control of the instrument: 1) Two rubber buttons found on the left side of the unit 2) Externally connected RNS MultiSwitch or compatible remote Short Click Up Short Click Down Short Click Both Long Hold Both - 9 -...
Page 12: Mode Controls
Mode Controls The majority of the modes function in a similar way and therefore have similar controls: Modes Long Hold Click Up Click Down Click Both Both Toggle wheel/GPS trip Switch to Enter Stage Timer timer next mode settings (hold button!) Set CAP heading as Switch to...
Page 13 Settings The settings menu can be entered from any mode by pressing and holding both buttons on the instrument or holding the mode button on the MultiSwitch. The LCD will show “Keep holding!” with a loading bar: If the settings are being entered from a mode that also shows a trip, the LCD will present the option to reset the trip or enter the settings: Use the up and down buttons of the GFX or MultiSwitch to move the cursor up and down.
Page 14: Setting Options
Setting Options Setting Description Options GPS Decimal Set trip resolution of GPS trip 100m / 10m GPS Calibrate Manually set GPS calibration value -10% - 10% GPS Information Show current reception data Wheel Decimal Set trip resolution of wheel trip 100m / 10m Wheel Size Set wheel circumference in millimetres 1000mm - 2999mm...
Page 15: Setting Descriptions
Setting Descriptions GPS Calibrate: Given that the distance calculated by GPS is dependent on the terrain, i.e. the distance calculated over mountainous terrain is different to that on flat terrain, the user may manually set a compensation factor between -10% and +10% if desired. GPS Information: This option shows the status of the GPS reception including the device’s coordinates, UTC time, signal quality...
Page 16 To correctly measure the wheel circumference: Find a flat surface to freely move your vehicle Place a mark on the ground and on the side of the tire which is touching the ground (e.g. with chalk) Move your vehicle in a straight line until one entire revolution of the wheel is complete, i.e.
Page 17 Wheel Calibrate: With this option enabled the GFX will analyse adjustments made to the wheel trip and accordingly adjust the wheel circumference. For example, adjusting the trip up means the circumference is too small and it will be increased in steps of 1mm. special software algorithm...
Page 18 Update: Should a software update become available, the user has the opportunity to contact his dealer or RNS electronics directly for assistance in upgrading the firmware. CAUTION!: Pressing the up button on the GFX unit, as advised on the LCD, will trigger a factory reset of the instrument restoring all settings to their default values! To leave the page, press the down button on the GFX.
Page 19: Cap Assist Function
CAP Assist Function The mode “CAP Assist” is a helpful tool when riding through off-piste sections where the rider must follow a single CAP heading for a longer distance. To make use of the function, make sure you have proper GPS reception.
Page 20: Garmin Repeater Function
Garmin Repeater Function The mode “Repeater” is a helpful tool for navigation training. In connection with an external Garmin, the GFX is able to show waypoint information including the name, the distance and the arrow direction of the next waypoint. The waypoints on the Garmin device may be from a route (multiple waypoints) or a single waypoint (e.g.
Page 21 The wires of the each cable are to be connected to an additionally required M8 4-pin male connector as follows: 010-11654-01 (CRADLE) M8 Male Pin Wire Colour Function +12V Blue Signal Black 010-11131-00 (MINI-USB CABLE) M8 Male Pin Wire Colour Function +12V Yellow...
Page 22: Faqs
FAQs How do I reset the trip? Press and hold both buttons or the mode button of the MultiSwitch in any mode that shows a trip (wheel or GPS based) until the question whether you would like to reset the trip is presented to you.
Page 23: Software Revisions
Software Revisions Version Released Details v2.1 August, 2020 Initial Release v2.2 February, 2021 Bug fix: serial number display Add Mode “GPS Trip + CAP” - 21 -...
Page 24: Technical Dimensions
Technical Dimensions - 22 -...
