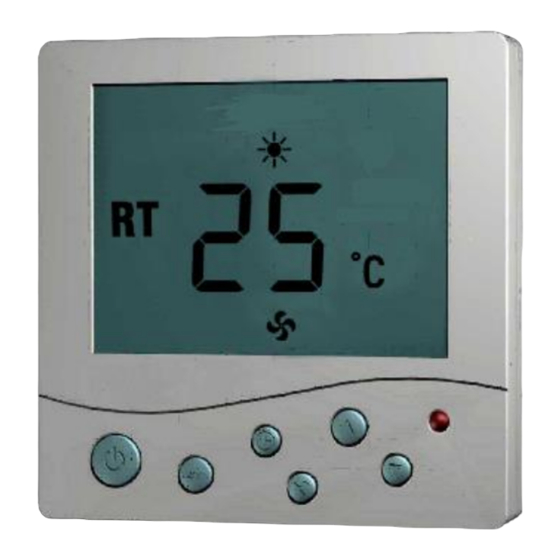

RP-2023 Room Panel User Manual
 Sensing element:
NTC
 Accuracy :
± 1℃
 Set-point range:
5℃～35℃
 Display range:
0～50℃
 Operation environment: 0～45℃
 Operating Humidity: 5～90%RH (non-
condensing)

OPERATION

 On/Off: Press " " to turn on, press " " again to turn off.
 Setting temperature: Press "" to reduce set-point, press "" to raise set-point, and 1℃ changed once.
 Mode Selection: Press " " to change system working in cooling " ", heating " ", ventilation " " or auto
" "mode.
 Fan Speed Selection: Press " " to change fan speed among "

KEY LOCKING FUNCTION SETTING:

 Turn on the thermostat, Press " " and "" for 10 seconds to enable or disable key locking function.

ROOM TEMPERATURE CALIBRATING:

 Turn on the thermostat, press " " and " " for 10seconds, LCD will display current temperature and
calibration temperature.
 Press "" to reduce calibration temperature or press "" to increase.

FAN/AUTO FAN SELECTION:

Press " " for 10 seconds to enable fan or auto fan mode. In auto fan mode,"AUTO"will be displayed in
clock area.

ADDRESS SETTING

 Turn off the thermostat, simultaneously press " " and "
clock region,press "" and "" to number the remote master address (Available range = 0~99). Press" "to
switch to the RP-2023 address, "32" will display on the clock region, press "" and "" to number them (Available
range from 1~32).
MOUNTING INSTRUCTION
 Use the flush mounting box for each application.
SINGLE DEVICE
Doc: 00-11-01, V1.2, 20170209
®
Copyright © Smallart
www.smallart.com.tr
 Power supply:
 Rated Power:  1W
 Dimensions: 86 × 86 × 13 mm ( W × H × D )
 Hole pitch: 60 mm ( Standard )
 Protection Class: IP30

" for 5 seconds till to display "XX" and"31"on
 Open the mounting hole to its proper place using a
68 mm holesaw
ROOM CONTROL PANEL
12VDC
(Hi)", " (Med)", " (Low)" or "
RP-2023
(Auto)".
