Summary of Contents for MADKWADS MAD-S

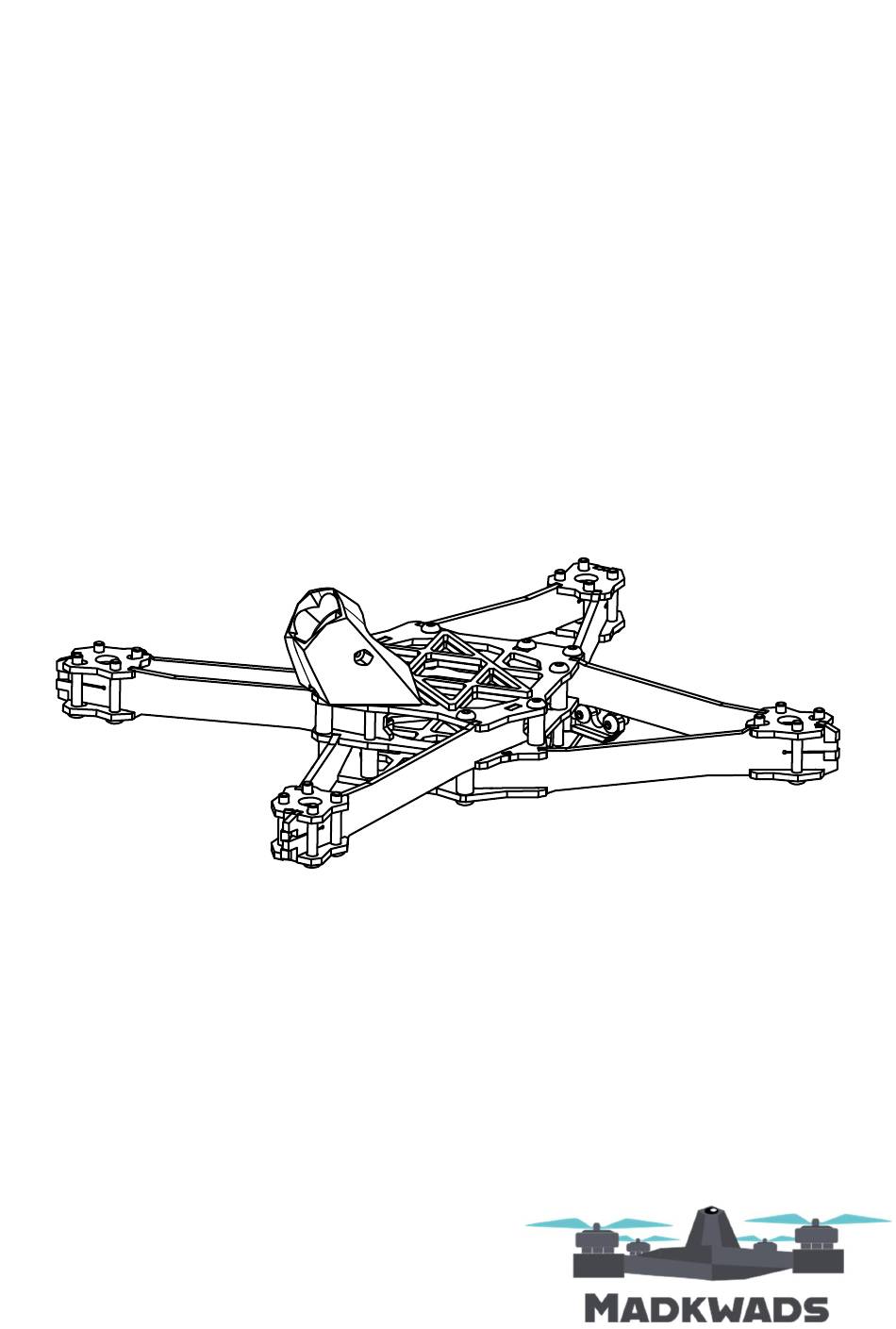

- Page 1 MAD-S...
- Page 2 Parts included in MAD-S frame kit Scale 1:2 Center Plate Top/Bottom Plate Battery strap Motor plate Camera mount Antenna bracket Scale 2:1 Button Head Button Head Button Head Button Head Female Screw Screw Screw Screw Standoff MAD-S Manual - Release 1.0...
- Page 3 MAD-S can be assembled in a several ways. What's best for you depends on your motors hole-pattern. If you follow this instruction the motor cables will be aligned with the arm going to the top level where the ESC is recommended to be mounted.
- Page 4 Mode A M3x8 Top view of correct M3x20 mounted motorplate for Mode A M3x18 M3x18 M3x6 MAD-S Manual - Release 1.0...
- Page 5 M3x20 Mode B M3x8 Top view of correct mounted motorplate for Mode B M3x18 M3x18 M3x6 MAD-S Manual - Release 1.0...
- Page 6 Step by step assembly instructions Following pages show one example of how to build the MAD-S. The frame is compatible with most common drone racing parts. For this example following parts are shown as reference and are NOT included in MAD-S frame kit.
- Page 7 Mount FC and ESC to center plate center plate as possible 3x4 (4x) M3x12 (4x) M3x6 (2x) M3x10 (2x) Temporarly pre-mount standoffs to bottom plate - these will be removed in step 13 MAD-S Manual - Release 1.0...
- Page 8 M3x18 (3x) Temporarily mount bottom plate - it will be removed in step 13 M3x10 standoff (3x) Double check that USB cable can be Micro USB cable connected to FC MAD-S Manual - Release 1.0...
- Page 9 Top view of correct mounted motorplate for Mount motor Mode A M3x18 (4x) Repeat step 5 for each motor MAD-S Manual - Release 1.0...
- Page 10 Solder motor and battery cables. If battery clips are used - pull it over cable before soldering M3x6 (3x) M3x10 (3x) Pre-mount standoffs to top plate MAD-S Manual - Release 1.0...
- Page 11 Metal catch facing forward Mount battery straps to top plate BEFORE mounting plate Mount top plate M3x18 (1x) M3x6 (2x) MAD-S Manual - Release 1.0...
- Page 12 M3x8 (1x) M3x20 (1x) Mount camera bracket using screws with odd length and color Mount camera using M2 screws supplied with camera MAD-S Manual - Release 1.0...
- Page 13 Unmount bottom plate zip tie antenna to Install and motor plate when connect RX and using 900Mhz RX connect camera Holes for zip ties when using 2,4Ghz RX MAD-S Manual - Release 1.0...
- Page 14 Pre-mount standoffs to bottom plate M3x10 (2x) M3x6 (2x) M3x6 (2x) Install and connect VTX and antenna MAD-S Manual - Release 1.0...
- Page 15 Mount bottom plate M3x6 (2x) M3x18 (5x) Mount screws in top plate M3x18 (2x) MAD-S Manual - Release 1.0...
- Page 16 Check motor rotation direction and configure FC. Information about how to configure and tune MAD-S can be found at madkwads.com Install propellers and fly MAD-S Manual - Release 1.0...
