Instructions for Assembly & Installation
Thank you for choosing this KRUMMA-Kot 142 product from Krumma ehf.
KRUMMA-Kot 142
Package details: 130kg & 0,3m
Equipment delivery part list:
1 x
Instructions for Assembly & Installation (this document)
4 x
Posts
1 x
Swing beam
2 x
Swings
2 x
10x195mm bolts
2 x
10x270mm bolts
8 x
10mm Self locking nuts
8 x
Black Covers: Bottoms and tops
Installers and Installation tools:
2 x
Installers are required to successfully install the equipment
1 x
Ratchet with 17mm sockets
1 x
17mm wrench
1 x
Measuring tape
1 x
Soft head hammer
2 x
Shovel
3
Concrete
0,2m
3
Gravel
0,4m
Installation Instructions:

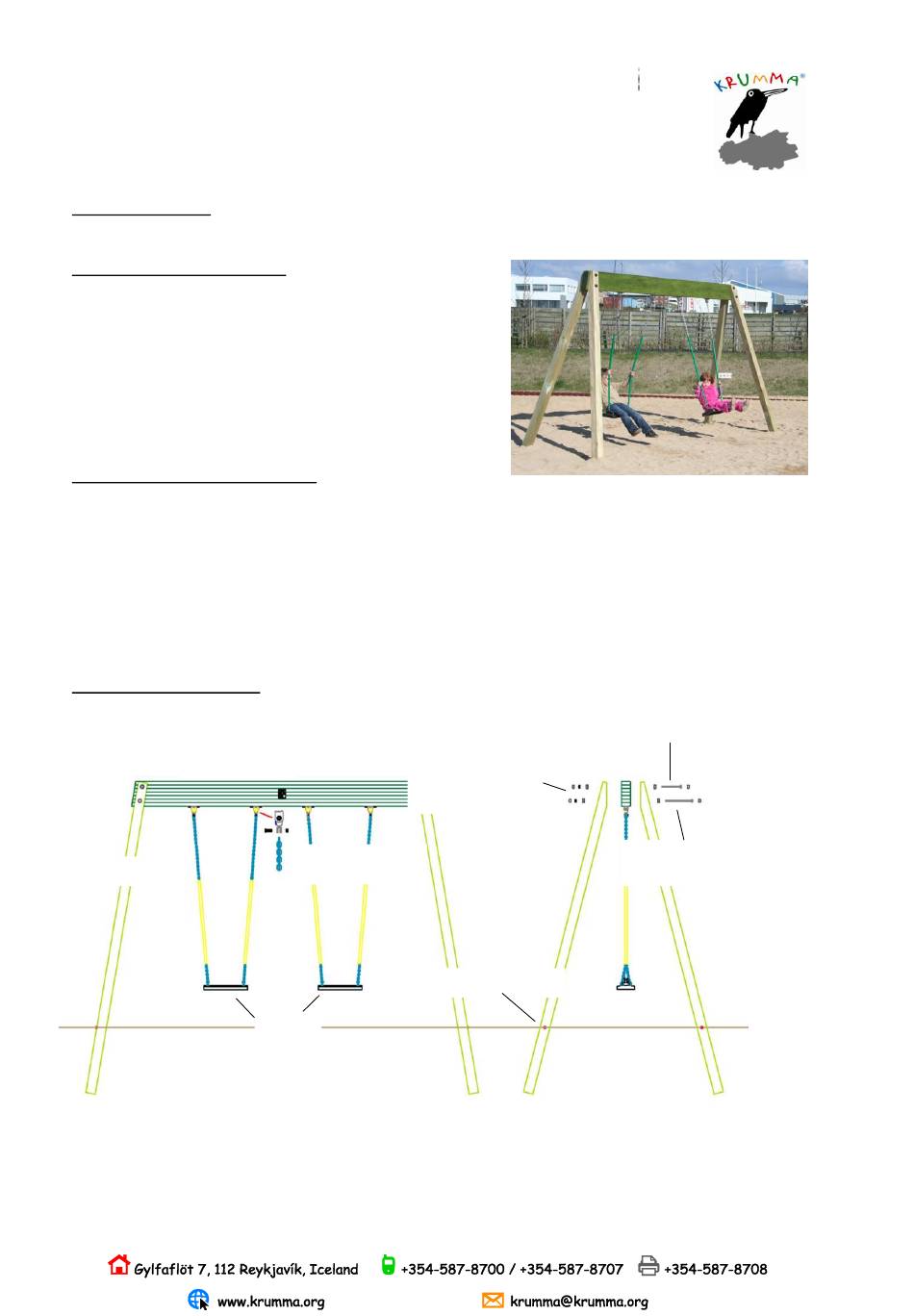

Figure 1 displays assembly parts.
Swing beam
Post
Assembly sequence:
1
Attach posts to the swing beam as figure 1 displays, using the 17mm wrench and ratchet with 17mm
socket.
2
Use the soft headed hammer to close the covers.
3
10mm self locking nuts
Black covers
8x30mm bolts
8mm self locking nuts
Swings
Surface marking
10x270mm bolts
Black covers
10x195mm bolts
Black covers
Advertisement
Table of Contents
Summary of Contents for Krumma 142
- Page 1 Instructions for Assembly & Installation Thank you for choosing this KRUMMA-Kot 142 product from Krumma ehf. KRUMMA-Kot 142 Package details: 130kg & 0,3m Equipment delivery part list: Instructions for Assembly & Installation (this document) Posts Swing beam Swings 10x195mm bolts...
- Page 2 Placing of the equipment and foundation: Figure 2 displays the holes for the ground fasteners. All measurements are in mm. Dig holes as displayed in figure 2. Place 80mm of compressed gravel into all four holes. Place the equipment into the holes as figure 2 displays. The red surface marks should be just above surface level.
- Page 3 Safety: Figure 3 displays minimum space requirements, safety clearance and maximum fall height. Measurements are in mm. KRUMMA-Gull 142 is certified by Dansk Technologisk Institut according to EN1176. • The maximum fall height determines the fall protection surface. The surface must have 1000HIC or •...
