Aurora Deck Lighting ODYSSEY Quick Start Manual

YOUR COMPLETE KIT INCLUDES:

a. 4 LED Strip Lights
b. 12 Connectors
c. 100' of Twisted Wire
d. LED Power Driver with Power Cord
(Capacity up to 24 Lineal Foot of LED Lighting)
e. Remote Driver
f. Remote Control

REQUIREMENTS:

Before you begin, make sure you have an external, weatherproof,
protected 110 volt outlet that meets GFCI (ground fault circuit
interrupter) standards. Mount the LED Driver at least 18 inches above the
ground. Best results can be achieved when you have access to the
underside of your deck or installation surface. Do not install more than
23 Lineal Feet of Odyssey LED Strip Lighting on one 3 Amp (36 Watt)
driver box. Do not install more than 16 Lineal Feet of Odyssey Strip
Lighting per run.
Power Drill • Table Saw or Router • 3/16" Kerf table saw blade or 3/16" straight router bit • ½" spade bit or forstner bit •
Screwdriver • Pliers • Tape Measure • Clear silicone caulk or sealant • Eye protection
CAUTION: Use eye protection when using power tools. Do not install more than 24 lineal feet of LED Strip Lights on one 3 AMP driver box.
Aurora Deck Lighting
ODYSSEY LED STRIP LIGHTING KIT

TOOLS:

I n s t a l l a t i o n I n s t r u c t i o n s
Do not install within 10 feet of a pool, fountain or spa.
Use on steps, railings,
handrails, coves, sots,
gazebos & pergolas,
kitchen cabinets, or
anywhere you need small
bright lighting for years
of service.

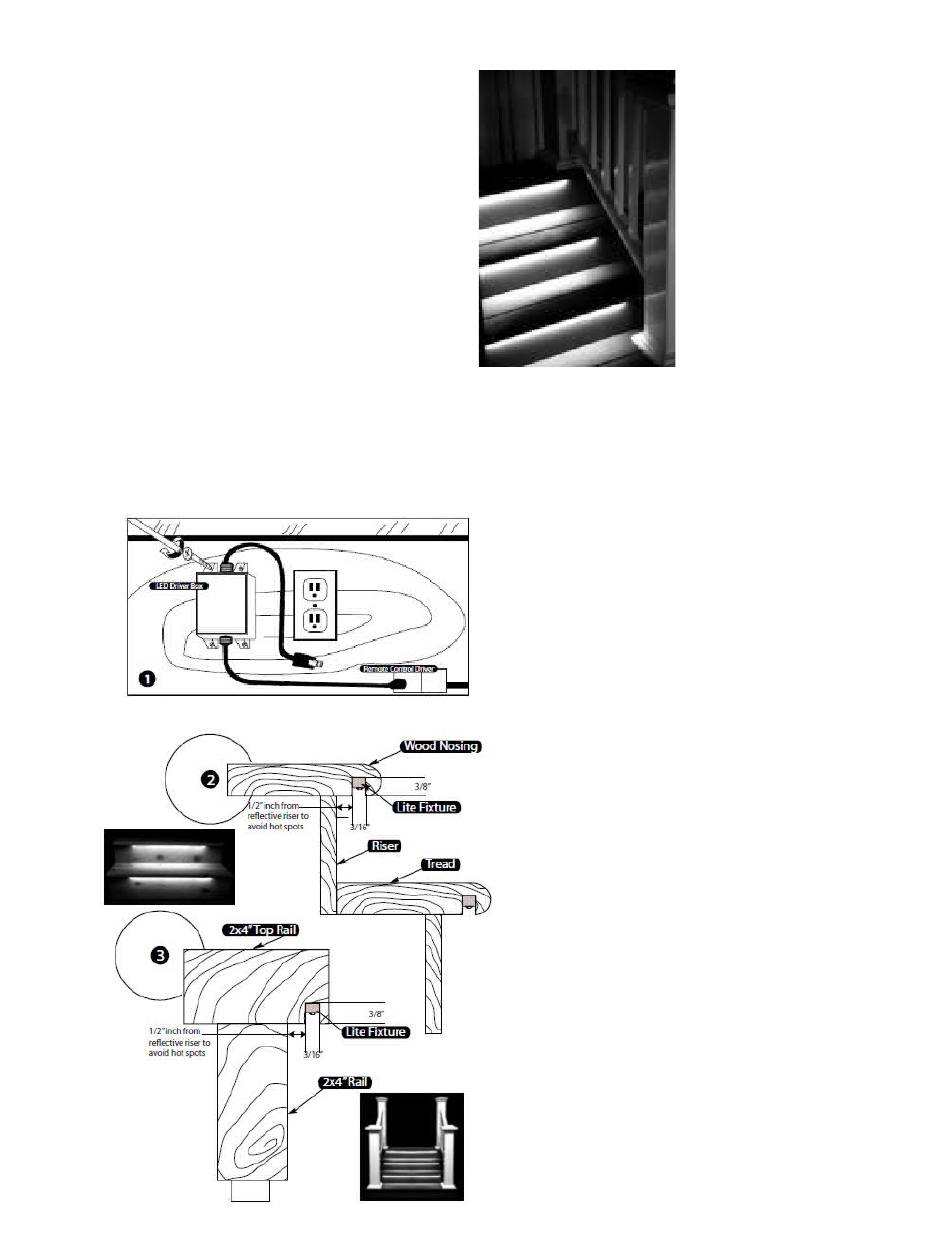

POWER SOURCE: Mount the LED Driver Box
at least 18 inches above the ground near your outlet
using screws. Do not plug it in. [ILLUS. 1]
Determine the locations for your LED lights on your
railing, stair nosing, etc. Keep in mind that your
farthest LED Strip light can be no more than 100
feet from the LED driver box using the wire
included in this kit.
FOR STAIR INSTALLATION: [ILLUS. 2]
using a table saw or router, cut a 3/16" wide x
3/8" deep channel the full length of the stair
nosing. For best results, The LED Strip should be
at least ½" from stair riser to avoid hot spots.
FOR HANDRAIL INSTALLATION: [ILLUS.
3] using a table saw or router, cut a 3/16"
wide x 3/8" deep channel the full length of the
handrail. For best results, The LED Strip should
be at least ½" from
horizontal surfaces to avoid hot spots. The bottom of
your hole needs to be flat so the light lays in
correctly.
Prior to gluing the LED Strip lighting into place, be
sure to lay out your LED Strips in such a way that
you can connect the wires from one LED strip to the
next. If your LED strips will be more than 8' apart,
you can use portions of the 100' wire included in
the kit to extend the LED strip. If your wires will
be less than 8' apart, you can trim the length of wire
to required length. Please note the location that the
wire connectors will end up before you trim the wires
– you will need a pocket or void to conceal the
wire connectors.
