Related Manuals for Audvoi SR190
Summary of Contents for Audvoi SR190

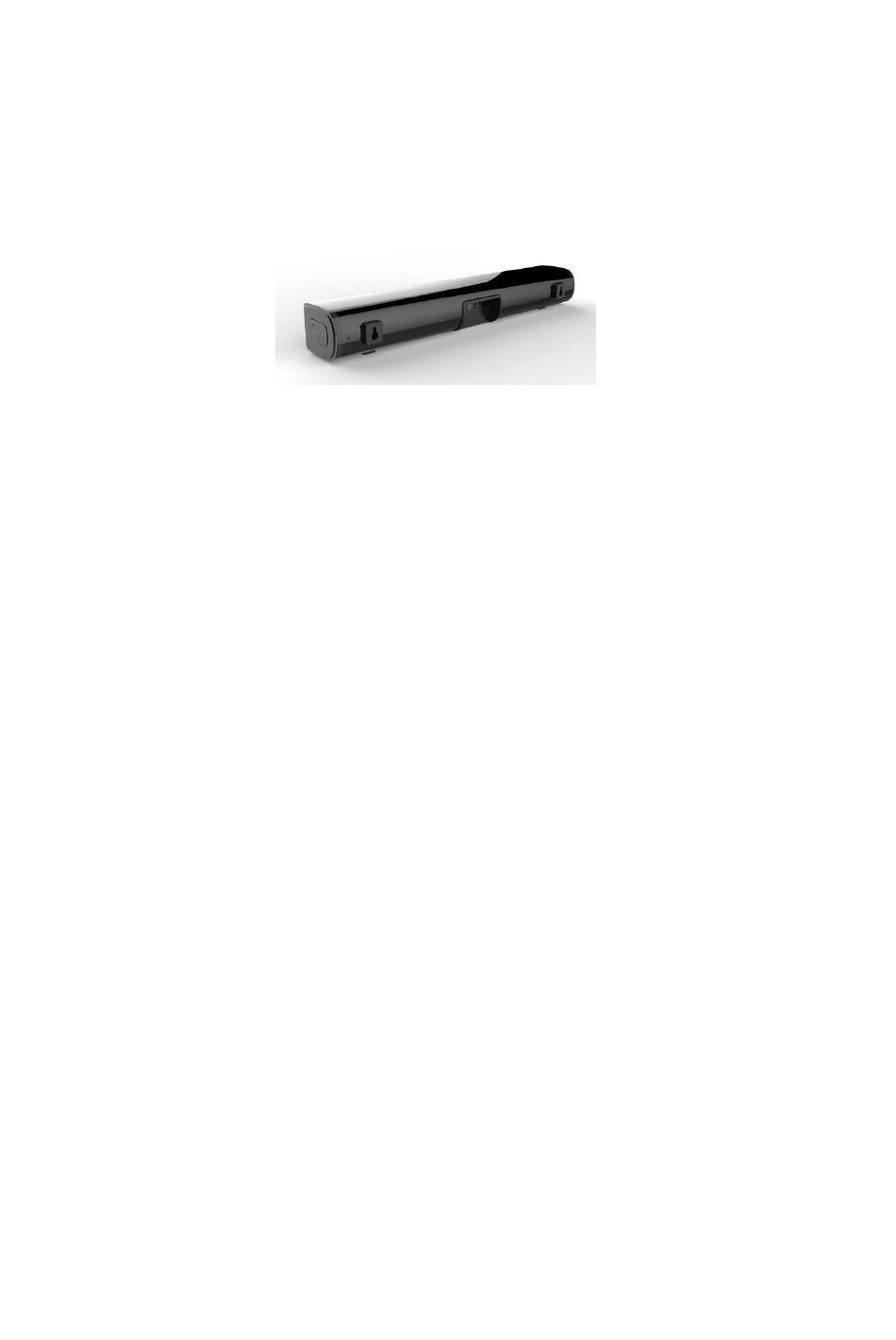

- Page 1 User Manual for 2.0 Soundbar SR190-16 The picture is for reference only, If there is any error with the actual machine, please refer to the actual product.
-
Page 2: Table Of Contents
Contents 1.Preface--------------------------------------------------------2 2.Accessory----------------------------------------------------2 3.Product introduction----------------------------------------3 4. Attention------------------------------------------------------3 5. Product panel introduction-----------------------------4 6. Operation instruction------------------------------------8 7. Device compatibility--------------------------------------12 8. Main technical specification----------------------------12 9. Simple trouble solutions --------------------------------13... -
Page 3: Preface
1. Preface To customers Welcome to purchase our 2.0 soundbar system! We are very grateful for your patronage! In order to fully utilize your device’s functions, please read this instruction manual carefully before use. This will make it easy for you to master the connection methods and key points. -
Page 4: Product Introduction
3. Product introduction This soundbar system supports Bluetooth playback, optical fiber decoding, HDMI(ARC) input, USB playback and external audio source input and amplification. It adopts digital signal processing technology and is suitable for music playing in different environments such as offices and homes. 4. -
Page 5: Product Panel Introduction
5. Product panel introduction Button and jack definition： There are 4 buttons; there are 5 jacks, which are defined as follows： : Short press to power on, short press to switch function, long press to power off 2. －: Short press, long press to volume down 3. - Page 6 ARC: HD multimedia input (HDMI arc) OPT: Optical input USB: USB Playback Aux: Aux in (3.5MM) DC IN: DC input...
- Page 7 Function of each button 1. Power: Press o for ls to switch on, hold for 3s to turn off 2. Select Inputs: Bluetooth, Optical, HDMI ARC, AUX and USB. 3. Five Different EQ Mode: MUSIC, MOVIE, BASS+, NEWS, GAME · MUSIC: For music and TV shows ·...
-
Page 8: Operation Instruction
5.Short press the "3D/LED OFF"button to switch the 3D surround effect on and off. Hold the "3D/LED OFF"button to switch on/off the display of the digital tube after the soundbar turns off. Power on: Plug the power adaptor into the DC-in jack of the soundbar, and insert the other end of the power adaptor into socket. - Page 9 or “ ”button to previous or next song; 7). To disconnect, short press or long press the “ ”button on the machine or long press this button on remote control, At this time, another mobile phone device can be used to connect Bluetooth playing;...
- Page 10 MP3/CD can be played. (please adjust the volume of the external audio sources to be moderate and playing.) ● OPTICAL Mode Short press the “ ” button on the soundbar or " OPTICAL " button on the remote control to switch to"OPTICAL" fiber decoding function.
-
Page 11: Device Compatibility
Note: during volume increase and decrease, the indicator light flash; when the volume is increased to the maximum or decreased to the minimum, the indicator light will be on. So remind the user! B. After power on, in any mode of playback, short press the remote control to choose sound effect mode: MUSIC、... -
Page 12: Main Technical Specification
8. Main technical specification 1．Bluetooth specification: V5.0 2．Bluetooth distance: Max distance≥10m 3．Output Power: L: 20W R: 20W The product specifications and design may change without further notice! 9. Simple trouble solutions Troubles Solutions Other mobile device has connected before use Bluetooth and the mobile device has not left as well as its paired... - Page 13 Volume of 1. After connections with mobile devices, volume Bluetooth of Bluetooth device is not up but at the default playback is output level. Turn on the mobile device output. 2. Output volume of Bluetooth device is low itself. Short Bluetooth Obstruction exists between mobile devices and connection...
- Page 14 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
