Summary of Contents for Franz Achatz easyPROP
- Page 1 MANUAL easyPROP easyPROP Rel. 1.00 Edition 20. Aug. 2007...
- Page 2 Aug. 2007 Copyright 2007 Franz Achatz. All rights reserved This hardware design is provided by Franz Achatz without any warranties. Although all information contained herein has been carefully verified, Franz Achatz assumes no responsibility for errors that might appear in this document, or for damage to things or people resulting from technical errors, omission or improper use of this manual or of the related software or hardware.

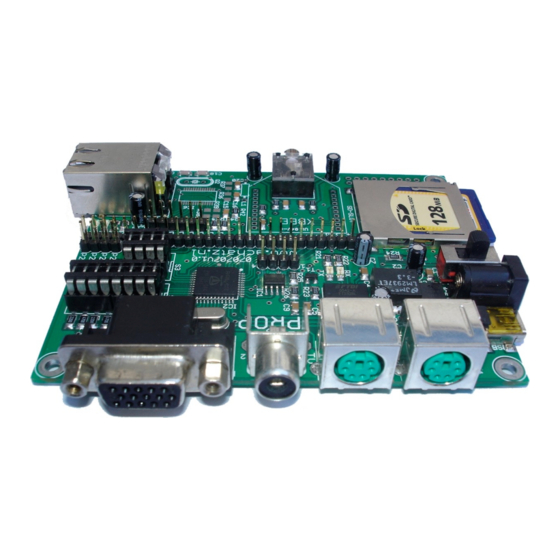

- Page 3 Hardware Manual About the easyPROP EasyPROP is a low priced Propelller based Evaluation Board equipped with a Ethernet Interface, SD Memory, VGA, TV Video, Audio, PS2 Keyboard, PS2 Mouse, Xbee connector and a USB Interface. It can be powered using a universal AC-DC Adapter or via your USB cable.
- Page 4 EasyPROP Hardware Manual Franz Achatz The Netherlands...
- Page 5 • PS2 Keyboard Interface • Port Pins P0...P27 available via Pinheader • Reset Switch • User LEDs for P22 and P23 • VGA and Video can be dissabled via the DIL Switches • board dimensions 80x100mm Franz Achatz The Netherlands...
- Page 6 ENC28J60 KEYB MINI_DIN_6 100µH MOUSE MINI_DIN_6 BC847 PLUG PINHD-1X4 LEDCHIPLED PWR1 LEDCHIPLED PWR2 LEDCHIPLED 5MHZ 25MHZ 240R Please handle the easyPROP board and/or the micro-chips with care. Follow the instructions for using Electrostatic Sensitive Devices (ESD) Franz Achatz The Netherlands...
- Page 7 EasyPROP is shipped with a loaded NTSC Video Demo and the Powerselector JP4 is jumpered to USB. If you like to power the easyPROP board by your own external Powersupply please rejumper JP4. Take care that your Powersupply matches the required voltage and currentsettings.
