Summary of Contents for Forterra Bio Clean ARS

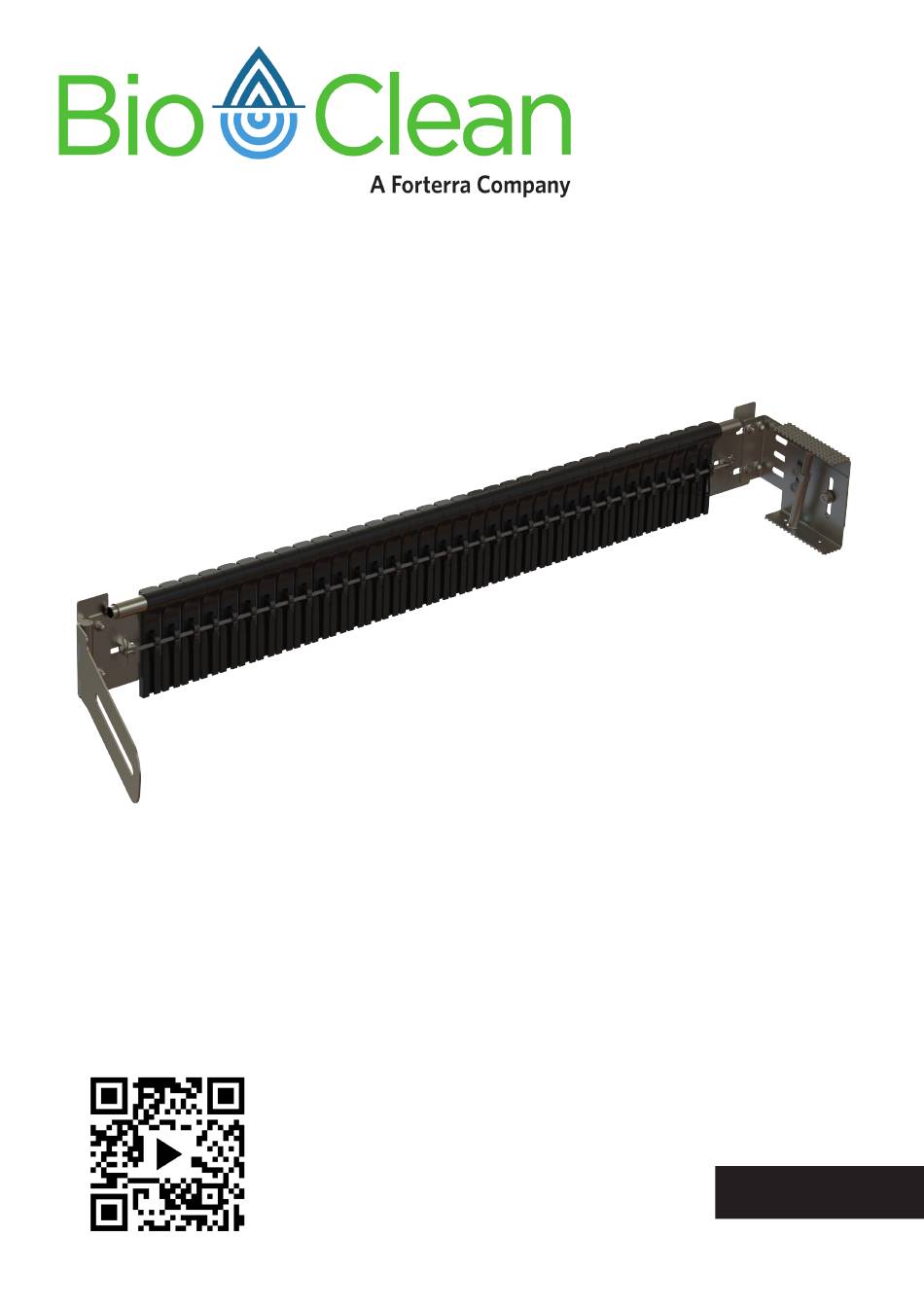

- Page 1 BIO CLEAN ARS Installation Manual Play Setup Video English...
- Page 2 INTRODUCTION Introducing the Bio Clean ARS assembly manual. In this manual, we will show you how to assemble your own Bio Clean ARS. Before beginning the assembly, make sure that there is enough room for installing and assembling your product. The contractor shall furnish all labor, equipment, materials, and incidentals required to install the ARS and appurtenances in accordance with the contract documents.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your Bio Clean ARS. These are crucial components that will be the mainframe of your entire assembly. Center Hydra ARS Assembly x1 Left Hydra ARS Assembly x1...
- Page 4 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your Bio Clan ARS. These are crucial components that will be the mainframe of your entire assembly. Pivot Rod Support x1 Pressure Mount x1 Spring Stud x1 3/8”...
- Page 5 PARTS & TOOLS CHECK LIST The following tools are recommended for this installation. Impact Drill with Socket x1 Roto Hammer x1 Safety Glasses x1 Sharpie x1 Square Straight Edge x1 Sledge Hammer x1 Tape Measure x1 Working Gloves x1 1/8” and 1/4” Allen Key x1 Caulking Gun x1 Grinder With Cutting Disk...
- Page 6 PARTS Below is a breakdown of the core parts for your final product, as detailed below. The Bio Clean ARS comes fully assembled, and there are many configurations depending on the catch basin. Center Connector Plate The center con- nector plate is...
- Page 7 Bio Clean ARS. Align and place the Left Bio Clean ARS Place the Left Bio Clean ARS into the left most section of the basin, as shown. The left angle can be adjusted depending on the corner of the basin. Some basins may have straight corner edges or some may have curved edges.
- Page 8 Locate the Center Bio Clean ARS, align, and place into position Begin Step Two by locating the Center bio Clean ARS and aligning it to the previously installed Left Bio Clean ARS so that the center sections connect, as shown. Secure the connection plate with the hardware provided Secure the connection plate with the hardware provided.
- Page 9 Step 3 - Installing the Right Bio Clean ARS Locate the Right Hydra ARS, align, and place into position Begin Step Three by locating the Right Bio Clean ARS and attach the adjustable hinge to fit accordingly to the right corner of the basin and push into place...
- Page 10 This measured length will serve as the cutting length. There is no need to remove the Bio Clean ARS unit. The quick release pin can be found on the back of the unit. Simply pull the quick release pin out so you can detach the excess hydrablades.
- Page 11 INSTRUCTIONS Step 5 - Adjusting the Bio Clean ARS Tension Loosen the lateral screw with an Allen Key and adjust tension Locate the screw attached to the side plate with a slot that is attached to the mounting block, and loosen it using an Allen Key.
-
Page 12: Technical Support
Technical support Bio Clean Corporate Office 5796 Armada Drive, Suite 250 Carlsbad, CA 92008 https://biocleanenvironmental.com/ (855) 566-3938 stormwater@forterrabp.com © BioClean 2020, All Rights Reserved...
