Summary of Contents for BNS Solutions QSK62P Plus

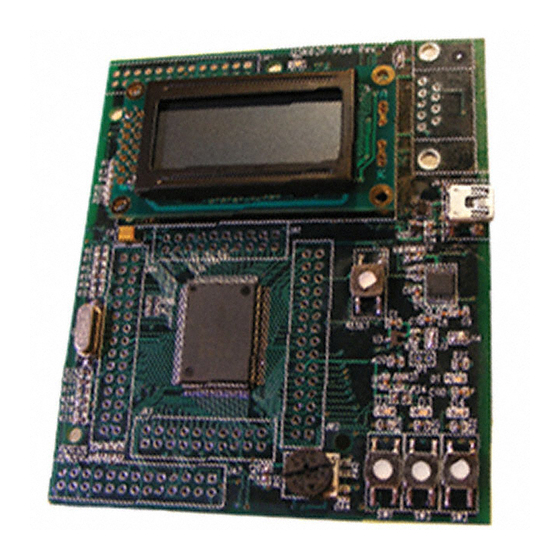

- Page 1 BNS Solutions Quick-Start Guide QSK62P Plus RS-232 Port Link LED 8-character x 2-line LCD Expansion Port (2) Reset Switch Power LED Thermistor I/O Ring (4) M16C MCU Analog Adjust Pot MCU Crystal Expansion Port User LEDs (3) User Pushbuttons (3)
- Page 2 ROM drive. The CD should auto-start, displaying the install Window. This QuickStart Guide and the Installation CD cover the BNS Solutions QSK62P Plus kit. From the opening Window click <Install…>. Follow the directions in the installation windows to install the QSK software tools for your kit.
- Page 3 QSK Status Link LED Power (green) LED (red) No Power (USB cable disconnected) Connected, USB not enumerated Blinking (driver not installed) Connected, USB enumerated On, Solid M16C E8 Debugger Software running On, Solid Follow the steps below to install the driver for the QSK. Administrator privileges are required to install the driver on a Windows 2000/XP machine.
- Page 4 your PC will not recognize the QSK, please see the “Troubleshooting” section of the QSK User’s Manual for help. Demo Program The kit ships with a demo program that runs on the board when connected to the PC’s USB port. a) If not already done in step 2a), plug one end of the USB cable into the QSK board and the other into a USB port on your PC.
- Page 5 HEW (IDE) QuickStart The High-performance Embedded Workshop software (HEW) integrates various tools such as the compiler, assembler, debugger, and editor into a common Graphical User Interface. a) Launch HEW from the Start menu (Start > (All) Programs > Renesas > High-performance Embedded Workshop >...
- Page 6 h) After ensuring there are no errors, proceed to 5: HEW (Debugger) QuickStart. NOTE:To learn more on how to use HEW, open the HEW Manual Navigator on your computer (Start > (All) Programs > Renesas > High-performance Embedded Workshop > Manual Navigator). HEW (Debugger) QuickStart a) If not already done, plug one end of the USB cable into the QSK...
- Page 7 iii) Click <OK>. – i. If the message “We should download new firmware” appears, click <OK>. ii. If you get an error, disconnect and reconnect the QSK from the USB cable and retry. d) Click on the “Reset Go” icon to start the program. e) Click on the “Stop”...
- Page 8 HEW/C-Compiler The High-performance Embedded Workshop User Manual will show you how HEW integrates various tools such as the compiler, assembler, debugger and editor into a common Graphical User Interface. To access the manual on your computer, go to the HEW menu Start >...
