Summary of Contents for CropX Pro

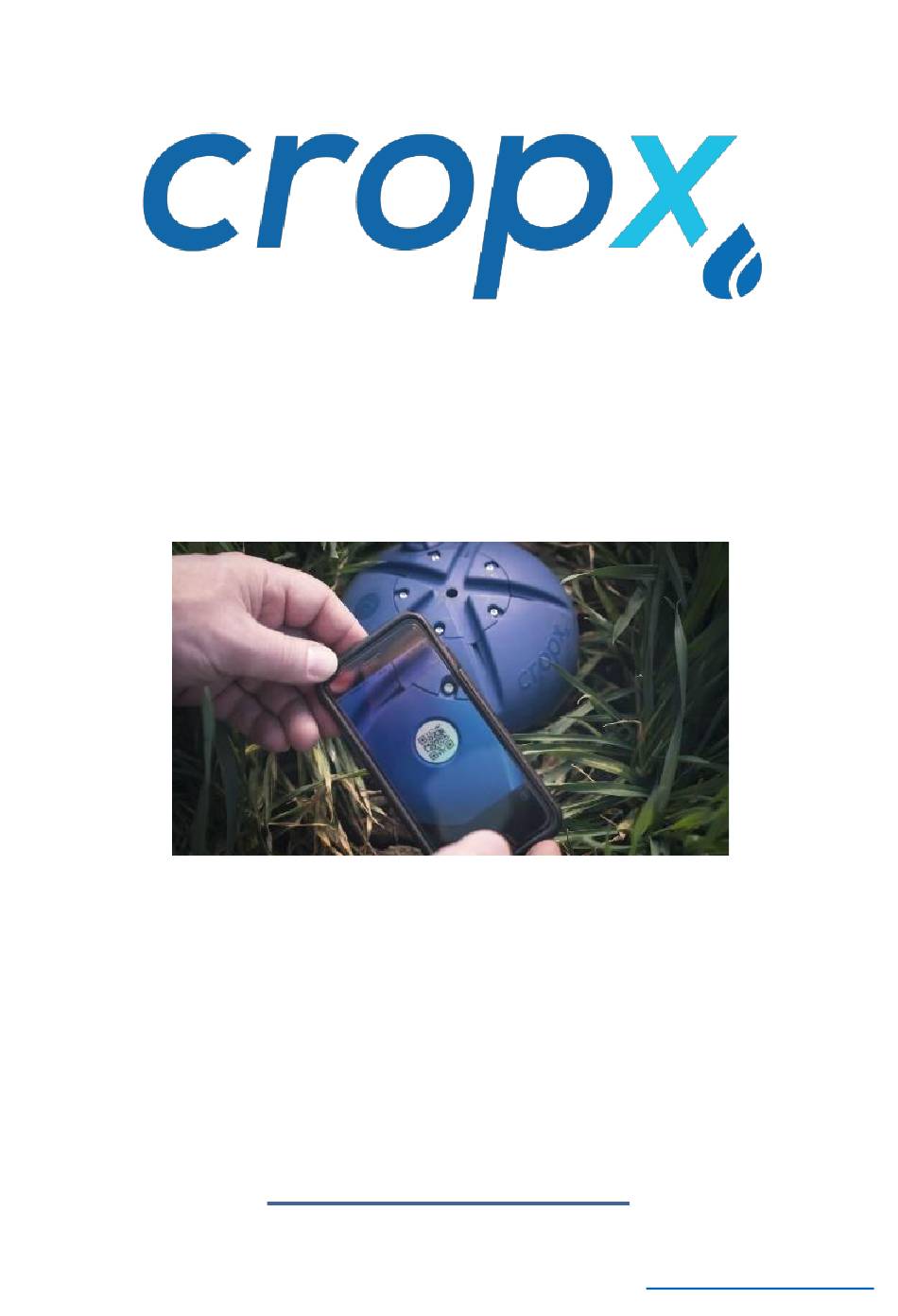

- Page 1 Sensor Installation Guide For more information, please visit us online at www.cropx.com.
- Page 2 This manual provides step-by-step instructions for installing a CropX sensor in your field. CropX offers two sensor models: CropX ‘Pro’ – Soil measurements at 8” & 18” (20 cm & 45cm); see fig. 1 below (left) CropX ‘Deep’ – Soil measurements at 8”, 18” & 36”...
- Page 3 CropX Installation Kit Contents: Item Description Item image Drill bit ‘Pro’: 0.7'' X 21.6'' (18 x 550 mm) ‘Deep’: 1.02'' X 45.2'' (26 x 1150 mm) Handle Sensor head adapter CropX Sensor Installation Guide...
- Page 4 Store, search for CropX Adaptive Irrigation, and download the app to your phone. Launch the CropX app by clicking on the CropX icon & create an account. If you have yet to add a new field, you may do so by clicking on the ‘add a new field’...
-
Page 5: Installation Recommendations
CropX Installation Kit; Customer to provide: A smartphone; ½” cordless drill, minimum 18V (fully charged); Container filled with a ½ gallon (~2L) of water for each sensor Installation Recommendations: For optimal sensor installation and accuracy, it should be installed: In moist soil, preferably around field capacity... - Page 6 Ensure there is no debris (plants, leaves, etc.) caught on the sensor during installation. This document and the information thereon are the property of CropX, and may only be used for the purpose for which this document was supplied.
- Page 7 Mount the sensor head adapter in the grooves on top of the sensor head. Mount the handle on the sensor head adapter and tighten it. Screw the sensor almost all the way down using the handle, leaving a 1- finger gap between the ground level and the bottom of the sensor head.
- Page 8 **Note: In addition to the physical uninstallation of the sensor, it should also be deactivated from the App. This document and the information thereon are the property of CropX, and may only be used for the purpose for which this document was supplied.
- Page 9 Charging the Sensor Gently remove the 5 screws on top of sensor. Remove the charging socket cover. Connect the USB cable to the USB cable port (cable provided) and connect to a certified UL/CE USB power adapter. Allow the sensor to fully charge for at least 10 hours, until the light changes to green (this may take up to 24 hours, depending on the charging source).
- Page 10 -4°F to +140° (-20°c to +60°c) Operating range 32°F to +122°F (0°C to +50°C( This document and the information thereon are the property of CropX, and may only be used for the purpose for which this document was supplied.
-
Page 11: Proprietary Notice
CropX Technologies Ltd. or any of its affiliated entities shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or... - Page 12 The distance between user and device should be no less than 20cm. This document and the information thereon are the property of CropX, and may only be used for the purpose for which this document was supplied.
