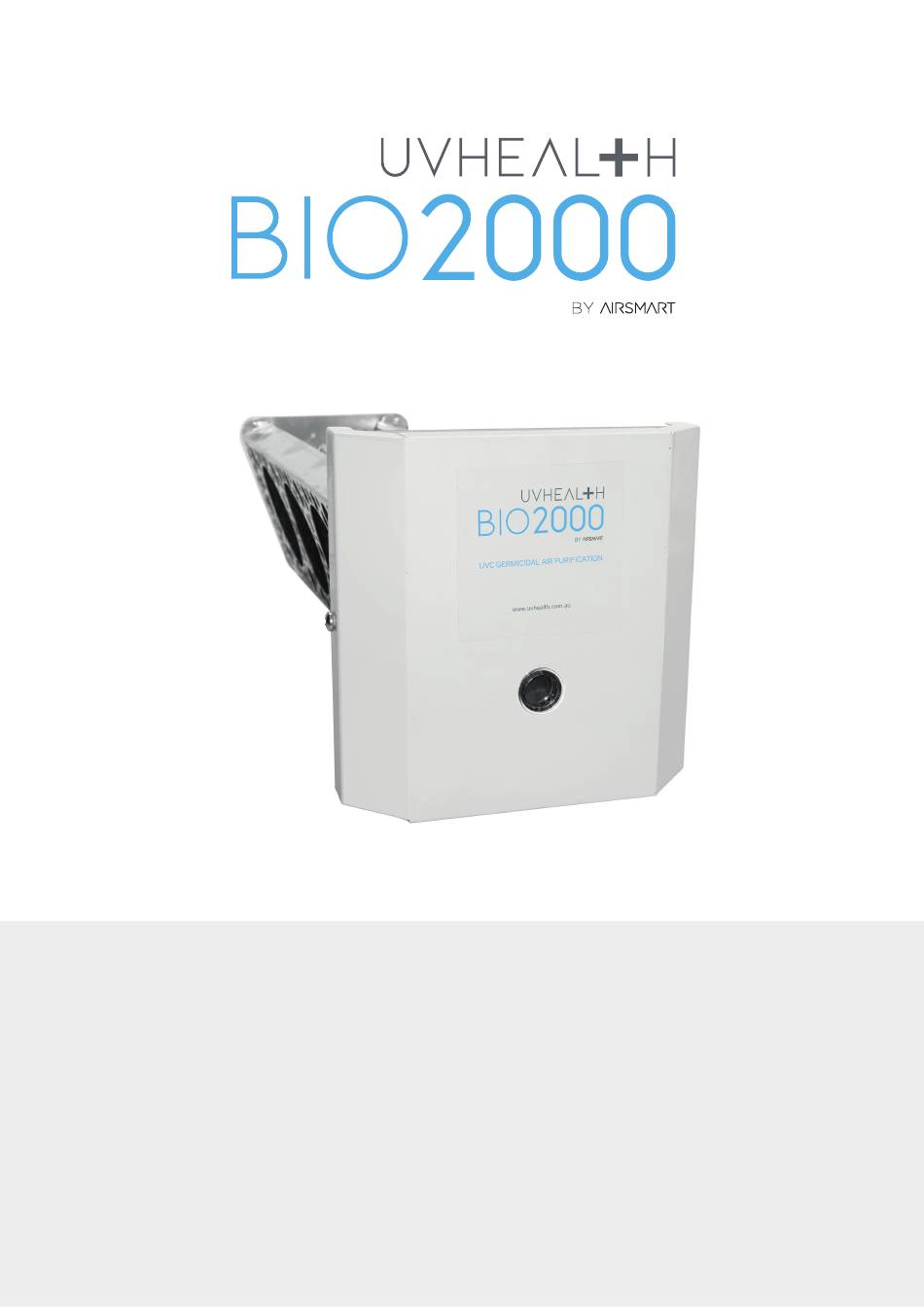

Page 1 GERMICIDAL UV-C AIR PURIFICATION INSTALLATION MANUAL...
Page 2: Table Of Contents
Never expose eyes or skin to UV-C light from any source. Looking directly at the UV-C light may cause permanent eye damage or blindness. Never operate the UVHealth BIO2000 Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Page 3 UVHEALTH BIO2000 Installation Manual BIODEFENCE SYSTEM FOR YOUR HOME OR WORKPLACE Designed to complement new or existing ducting airconditioners, UVHealth provides continuous whole of building air purification. Unlike room air purifiers, UVHealth is concealed in your roof space or ductwork and provides continuous whole of building air purification.
Page 4 UVHEALTH BIO2000 Installation Manual Multiple units can be installed to increase the coverage area. If UVHealth cannot be fitted in the existing air conditioning system, a transition box in flexible ducting is recommended. Transition box Alternate installation location for additional units...
Page 5: Product Description
Installed in the main supply or return duct of your system, the UVHealth BIO2000 can operate continuously to automatically purify the air in your air conditioning system, 24 hours a day.
Page 6: Safety Precautions
UVHEALTH BIO2000 Installation Manual 3.0 SAFETY PRECAUTIONS damage is noticeable. If the lamp is damaged, cracked or broken, do not touch lamp or other contents in carton. Close carton and return to place of purchase READ SAFETY PRECAUTION BEFORE INSTALLATION immediately.
Page 7: Sizing And Selecting Units
To maximise the efficiency of your system, it is important to select the right combination of UVHealth Products. The UVHealth BIO2000 can be used as a single unit or in combination with one or more UVHealth BIO1000 or BIO2000 units. The following table can be used to select the correct number of units for your application.
Page 8: Uvhealth Bio2000 Installation Instructions
Pay attention to directional airflow arrow for proper installation. • The installation of the UVHealth BIO2000 may be on the return air side, supply air side, or adjacent the coil in the supply plenum of the HVAC system.
Page 9: Uvhealth Bio2000 Unit Installation
C:\Users\user\Mod Cons Heating & Cooling PTY LTD\Jobs - Documents\ZZZ DETAILS\FROM JIM'S PORTABLE HD\Do Not Amend - RCD CLEARANCE.dwg, Model Figure 8A: Positioning the UVHealth BIO2000 in the supply air duct • The unit may be installed on either the supply or return plenum.
Page 10 Insert the unit into the duct opening and attach it to the duct (or Ductboard Mounting Plate) with the four included sheet metal screws. The wider side of the V-shape of the UVHealth BIO2000 unit panels should face into the oncoming airstream, see Figure 12.
Page 11: Maintenance
Figure 6 and gently slide the • We recommend inspecting and cleaning the lamp at lamp out the front of the UVHealth BIO2000 housing. least every 6 months. Frequency depends upon the Reinstall by reversing the above steps.
Page 12 UVHEALTH BIO2000 Installation Manual Detach the unit from the duct or Ductboard Adaptor Plate by removing the four sheet metal screws. Save the sheet metal screws for reattaching the unit. Carefully slide unit out of duct. Remove the lamp with the following steps. Disconnect the ballast from the lamp by unplugging the four pin connector (see Figure 7).
Page 13: Troubleshooting Guide
Dispose of the pieces of glass, the vacuum cleaner bag, and the disposable gloves in a sealed garbage bag. AirSmart Pty Ltd provides a 1 year parts only warranty for faulty or defective goods. For warranty information about Check with your local waste management authority for this product, visit www.uvhealth.com.au.
Page 14 UVHEALTH BIO2000 Installation Manual Notes :...
