This instruction manual is an integral part of the product to which it refers and it must accompany it
in case of sale or transfer. Keep this instruction manual for every future use. VALVOLMECCANICA
reserves the right to modify, at any time, the product's technical specifications.
READ CAREFULLY THIS INSTRUCTION MANUAL BEFORE THE
INSTALLATION OF THE PRODUCT
The observance of what is related in this instruction manual is an essential condition for the safety
of the operator, the integrity of the product and the maintenance of the general guarantee of sale.
Every other use has to be considerated improper and dangerous. VALVOLMECCANICA is not liable
for any damage due to alterations and improper uses.
The equipment complies with the following regulations:
•
BS EN ISO 16119-2 Agricultural and forester machines – Crop dusters and distributor of liquid
fertilizers – Environmental protection part 2 crop dusters in field.
VALVOLMECCANICA
USE AND MAINTENANCE
L007 – L007MAN

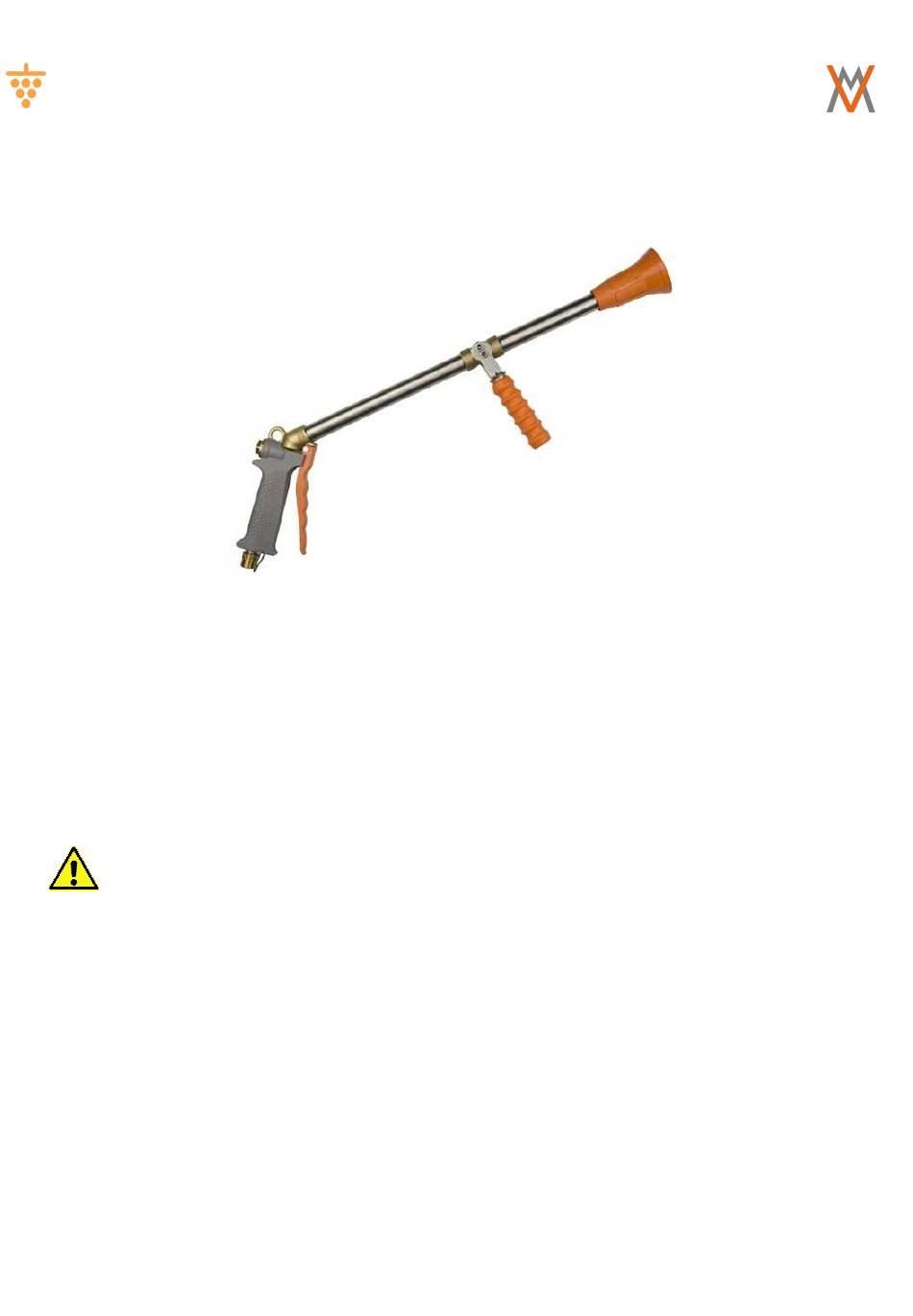

ANTARES SPRAY GUN
1
Advertisement
Related Manuals for Valvolmeccanica L007
Summary of Contents for Valvolmeccanica L007
- Page 1 This instruction manual is an integral part of the product to which it refers and it must accompany it in case of sale or transfer. Keep this instruction manual for every future use. VALVOLMECCANICA reserves the right to modify, at any time, the product’s technical specifications.
-
Page 2: Technical Data
SUMMARY 1. TECHNICAL DATA 2. INTENDED USE 3. USE 4. SAFETY REGULATIONS 5. MAINTENANCE 6. PROBLEMS AND POSSIBLE SOLUTIONS 7. DISPOSAL 8. GUARANTEE STATEMENT 1 – TECHNICAL DATA Max bar pressure Spray tip hole mm Inlet Max operating pressure psi Standard 2,5 G1/2M Swivelling joint Standard 2,5... -
Page 3: Safety Regulations
WARNING At the end of the work, always do a washing cycle of the spray gun with clean water in a field or in an appropriate place without obstacles, persons, animals, houses and streams. 4 – SAFETY REGULATIONS • Always wear proper individual protection garment; •... -
Page 4: Problems And Solutions
8 – GUARANTEE STATMENT This device is guaranteed for a 12 months period from the date of sale to the client user. The complete information about the guarantee statement are available in VALVOLMECCANICA’s general catalogue and on our web site:... - Page 5 ANTARES SPRAY GUN EXPLODED VIEW DRAWING...
-
Page 6: Parts List
PARTS LIST CODE DESCRIPTION QUANTITY A001PL0000 TURBO L046MI0000 TOP SPRAY GUN A059MI0000 CONVEYOR Ø 19 x 10 A062MI0000 SHAPED TUBE Ø 8 x 1 A013PI0025 CERAMIC SPRAY TIP A061MI0000 FRONT STAINLESS STEEL TUBE M23 x 1 L037CO0000 ANTARES BODY A071MI0000 STAINLESS STEEL TUBE Ø...
