SOUJAMAO B07VCNDQ7Z User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Alarm
Wireless Home Security
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the B07VCNDQ7Z and is the answer not in the manual?

Questions and answers

Summary of Contents for SOUJAMAO B07VCNDQ7Z

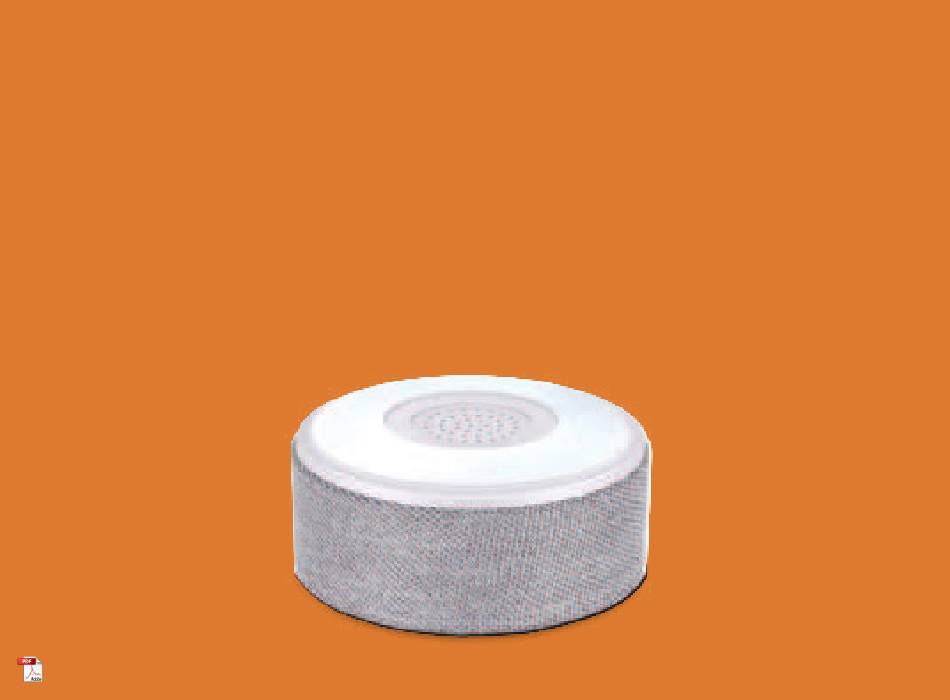

  • Page 1 Alarm Wireless Home Security User’s Manual...
  • Page 2 Protect your home intelligently. Alarm Base Station The central hub of your Alarm system. Connects all of your Alarm devices to the Smart Life app, so you’ll always stay in control of your home, wherever you are. Connects to power with the included power supply.

  • Page 3: Contact Sensor

    Contact Sensor Alerts you when a door or window is opened. Uses the Sensor magnet and mounting hardware included with the Contact Sensor Install Kit. Key Fob Gives you hands-on control of your Alarm system. Press the buttons to set the Alarm in 3 different Security Modes.
  • Page 4 1. Set up your Smart Life account. 1.First, download the Smart Life app for your iOS or Android device. Before setting up your Alarm, make sure you have the latest version of the Smart Life app from the app store. 2.Next, create your account.

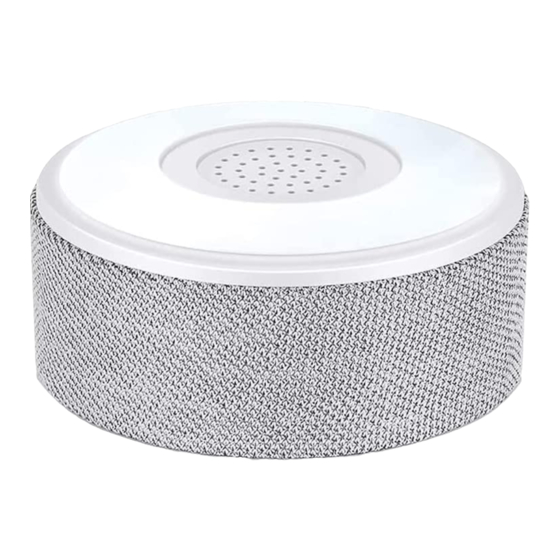

  • Page 5 2. Set up your Alarm Base Station. The Base Station is the brains and primary siren of your system. It communicates with all of your devices and sends us your alarm signals if you have activated alarm monitoring service. Place your Base Station in a central location in your house. DO NOT install it on the floor.
  • Page 6 3. Add Base Station to Smart Life app. 2. Select Add Manually, Security & 1. Launch the app and tap the Plus ( + ) in the top right corner to add a Sensors, then Alarm (Wi-Fi). Base Station device.
  • Page 7 3. Choose your Wi-Fi network and 4. Press and hold the SET button on Enter the password. Then tab Next. the Base Station (after beep sound), the light of Base Station is SLOWLY blinking (2s/time).
  • Page 8 5. Choose AP Mode and Select 6. Tap Go to Connect, select WLAN on Confirm indicator slowly blink. your mobile phone setting, choose SmartLife-XXXX network on the WLAN setting.
  • Page 9 7. Switch back to Smart Life app, 8. Now your Base Station is it will show Adding device on the successfully added to Smart Life app. Smart Life App. Tab Done.
  • Page 10 4. Set up your Sensors and Remote Device. Setting up your Alarm security devices involves two steps: Configure Connect the device to your any unique settings Alarm System. as needed. For the easiest setup, complete two steps for each device before moving on to the next one.
  • Page 11 Key Fob 1. Connect Tap Remotes, then tap + Add, then To connect a Key Fob, tap Accessories at the bottom to set there will be followed by a beeping up the key fob. sound from the Base Station. Now you need to press one of the remote button.
  • Page 12 Key Fob 2. Configure Using the app, choose the key fob, give it a unique name describing the key fob. Tap Remotes, then tap pen icon to edit the device name.
  • Page 13 Contact Sensor 1. Connect To connect a Contact Sensor, Now line up the Contact Sensor pull the tab out of the back. Tap (sensor and magnet) together (Fig.1). Accessories at the bottom to Tap Sensors, then tap + Add, then set up the contact sensor.
  • Page 14 Contact Sensor 2. Configure Using the app, choose the Sensor placement (Door or Window), give it a unique name describing the location, and assign it to a room. Tap Sensor, then tap pen icon to edit the device name.
  • Page 15 Motion Sensor 1. Connect To connect a Motion Sensor, Now turn on the Motion Sensor tap Accessories at the bottom (ON/OFF button on the back). to set up the motion sensor. Tap Sensors, then tap + Add, then there will be followed by a beeping sound from the Base Station.
  • Page 16 Motion Sensor 2. Configure Using the app, choose the Sensor placement, give it a unique name describing the location, and assign it to a room. Tap Sensor, then tap pen icon to edit the device name.
  • Page 17 Doorbell 1. Connect Tap Sensors, then tap + Add, then To connect a Doorbell, tap Accessories at the bottom to set there will be followed by a beeping up the doorbell. sound from the Base Station. Now press the Doorbell button.
  • Page 18 Doorbell 2. Configure Using the app, choose the Sensor, give it a unique name describing the doorbell. Tap Sensor, then tap pen icon to edit the device name.
  • Page 19 * Security Mode of Sensors Choosing which Sensors are monitored in each mode. Each Security Mode monitors specific groups of Sensors. By default, Away Mode and Home Mode arms only Contact Sensors used on doors and windows. You can customize which Sensors are armed in Away Mode.
  • Page 20 5. Learn to use Alarm System. Alarm Modes Your Alarm system has three Security Modes to choose from: Disarmed, Away, and Home. You can switch between them using the Key Fob and Away Modes the Smart Life app. When you arm in Away Mode, by default all Sensors are armed.
  • Page 21 How to Arm and Disarm your Alarm Using the Key Fob, simply press the Disarmed, Away, or Home Mode button. Using the Smart Life app, simply tap the Mode of your choice. Disarming will cancel your alarm signal. If you’re professionally monitored, disarming the system during an alarm cancels the alarm signal sent to the monitoring center.
  • Page 22 Understanding Entry & Exit Delay gives you a short period of Exit Delay time to leave your home once you’ve armed the Alarm. You’ll hear a beeping sound to remind you that there is only a few seconds to exit your home and close the door.
  • Page 23 Adding Shared Family Users Tap pen icon, tap Share Device, then tap Add Sharing to enter sharing user’s Smart Life account name. (Sharing users should sign up for a Smart Life account in advance.)
  • Page 24 How to trigger SOS alarm Alarm features a SOS Alarm just in case an emergency occurs while you’re at home. To trigger it, press the lightning button on the Key Fob, or tap SOS in the Smart Life app.
  • Page 25 6. Work with Alexa, and Google Home. Voice Control Connect Alarm System to select Alexa, or Google Home devices to easily set your Alarm in Home, Away, and Disarmed Modes and check the status of your security system with hands-free voice control.
  • Page 26 Alexa Voice Commands You can start controlling the Smart Alarm System with amazon Alexa using voice command. Such as： "Alexa, arm {Alarm Security System} in away mode” "Alexa, arm {Alarm Security System} in home mode” "Alexa, disarm {Alarm Security System} ” "Alexa, what's your voice code for my {Alarm Security System} ;...
  • Page 27 Google Home Voice Commands You can start controlling the Smart Alarm System with Google Home device using voice command. Such as: " Set the {Alarm Security System} to away mode.” " Set the {Alarm Security System} to home mode.” ”Disarm {Alarm Security System} ” * {Alarm Security System} is the default name of your alarm system.
  • Page 28 Customize your safer home. Keypad Key Fob Doorbell Motion Detector Alarm Horn Siren Contact Sensor Camera Water Leak Detector...
