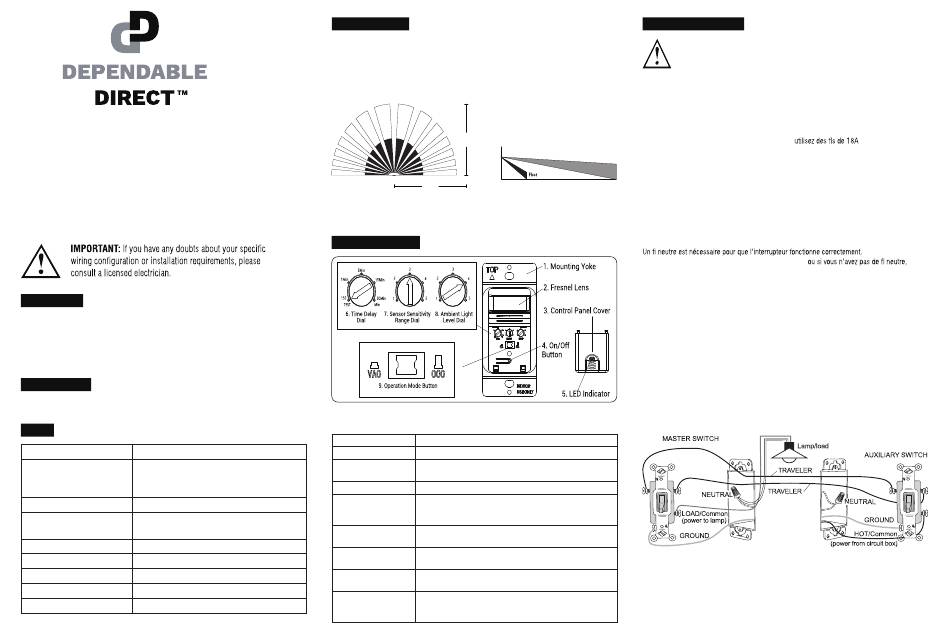

DEPENDABLE DIRECT YT-C2 Series Installation Instructions

YT-C2 Series
Installation Instructions for YT-C2 Series
Three-Way 180°Occupancy and Vacancy Sensor Switch
Please read all instructions before installing the YT-C2 Series sensor switch.
Thank you for your purchase from Dependabel Direct, your satisfaction
is our top priority. If you have any questions or concerns, please email
us at Support@DependabelDirect.com
DESCRIPTION

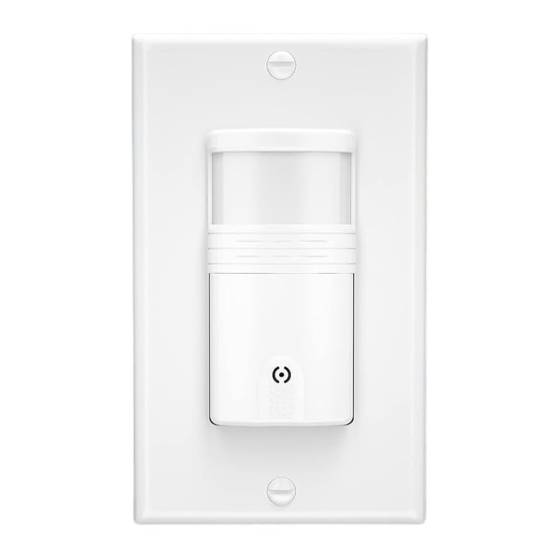

The YT-C2 Series sensor switch is designed to replace a standard light or fan switch. This device
can automatically turn lights or a fan on and off by detecting motion from a heat-emitting source
such as a person entering an area. The lights or fan will stay on until no motion is detected and
the time delay has expired. This product offers optimal coverage for random traffc areas such
as hallways, stairways, or large spaces with multiple entries. Use indoors only.
TOOLS NEEDED
You will need an insulated fathead screwdriver, wire strippers, and a small athead screwdriver
to adjust the sensor dials.
SPECS
Voltage 120V/277VAC, 60Hz
120V 800W Incandescent Lamp
Max Lamp Load 800VA Fluorescent Lamp (Rapid Start)
277V 1200VA Fluorescent Lamp (Rapid Start)
Max motor load 1/6 hp
Preset intervals of 15 sec (Test),1 min,
Time Delay Adjustment
5 min, 15 min, and 30 min
Indoor use only
Environment
Operating Temperature 32˚ to 131˚F (0˚ to 55˚C)
Humidity Range 95% RH, non-condensing
Coverage Range 180˚ (at optimal temperature of 20˚ to 25˚C)
Coverage Area
720 ft 2 (47m2 )
*Intended for use with electronic ballast, Type ICN-4S54-90C-2LS-G, manufactured by Philips
Lighting Electronics N A.
COVERAGE AREA
● The sensor must have a clear and unobstructed view of the area. If an object blocks the
sensor's lens, the sensor may not detect motion and may turn the lights or fan off even if
someone is in the area. Windows, glass doors, and other transparent barriers will
obstruct the sensor's view and prevent motion detection.
● The coverage area data is measured under the best temperature condition (20 to 25˚ C),
and a higher or lower temperature may not leadto an ideal coverage area (see fgures 1 and 2).
30ft
(9.1m)
4ft
(1.2m)
12ft
(3.7m)
Figure 1: Sensor coverage area Figure 2: Sensor coverage area
(top view)
SWITCH OVERVIEW
Figure 3: YT-C2 Series sensor switch diagram
1. Mounting Yoke Lets you mount the switch to the wall.
2. Fresnel Lens
Detects motion.
3. Control Panel Covers the switch's adjustment dials. Remove the cover to see
Cover the dials.
Lets you turn the light or fan on or off.
4. On/Off Button
Indicates when the sensor detects motion. The green LED lights
5. LED Indicator the On/Off button while the lights or fan are off. When they are
on, the LED turns off.
Controls how long the light or fan stays on after no motion is
6. Time Delay Dial
detected.
7. Sensor Sensitivity Adjusts the sensitivity setting to avoid unwanted detection
Range Dial such as hallway traffc or adjacent movement.
8. Ambient Light Prevents the sensor from automatically turning the lights or
fan on if the area has enough ambient lighting.
Level Dial
The sensor has two positions that correspond to operation modes:
9. Operation Mode
vacancy (when the button is pressed) and occupancy (when the
Button
button is released).
BEFORE INSTALLATION
WARNING:
● Before installing the YT-C2 Series sensor switch,disconnect power to the
wall switch box by turning off the circuit breaker or removing the fuse for the
circuit.
● For supply connections use 18AWG or larger wires suitable for at least 75°C
● Tightly secure the ground wire to ensure that thesensor functions properly.
AVERTISSEMENT:
● avant d'installer l'interrupteur du capteur de la série YT-C2, débranchez
l'alimentation du boîtier d'interrupteur mural en éteignant le disjoncteur ou
en retirant le fusible du circuit.
● Pour les connexions d'alimentation,
à au moins 75 ° C
30ft
(9.1m)
● fxez fermement le l de terre pour vous assurer que le capteur fonctionne
correctement.
6ft
(1.8m) IMPORTANT:
A neutral wire is required for the switch towork properly. If the existing wiring does not match
thedescription for a two-pole circuit, or if you do not have aneutral wire, consult a qualifed
(side view)
electrician.
IMPORTANT:
ne correspond pas à la description d'un circuit bipolaire,
consultez un électricien qualifé.)
● These instructions describe only the 3-way circuit applications.
● For information about other applications,
● consult technical support.
1. Prepare the switch box
● After the power is turned OFF at the circuit breaker box,remove the existing wall plate and
mounting screws. Pull the old switch out from the wall box.
2. Identify the type of circuit
● You may connect the YT-C2 to a single pole or multi-way circuit. If you are unable to clearly
identify some or all of the wires mentioned in this manual, you should consult with a qualifed
electrician.
● In a 3-way circuit (see Fig. 4), two traveler wires connect to both switches. Another wire provides
power from the circuit box to one of the switches. A wire connects from one switch to the load.
A ground wire may also be connected to a ground terminal on the old switches. A neutral wire
should also be present in both wall boxes.
WG ou plus adaptés
Si le câblage existant
Figure 4: Typical 3-way switch wiring
YM2108T
REV 1.1
