Page 1

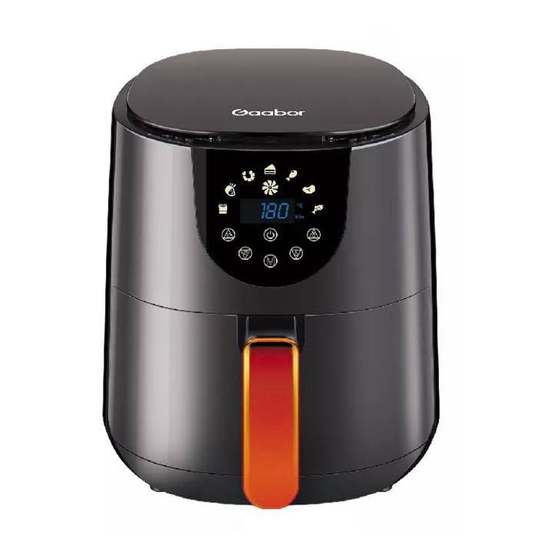

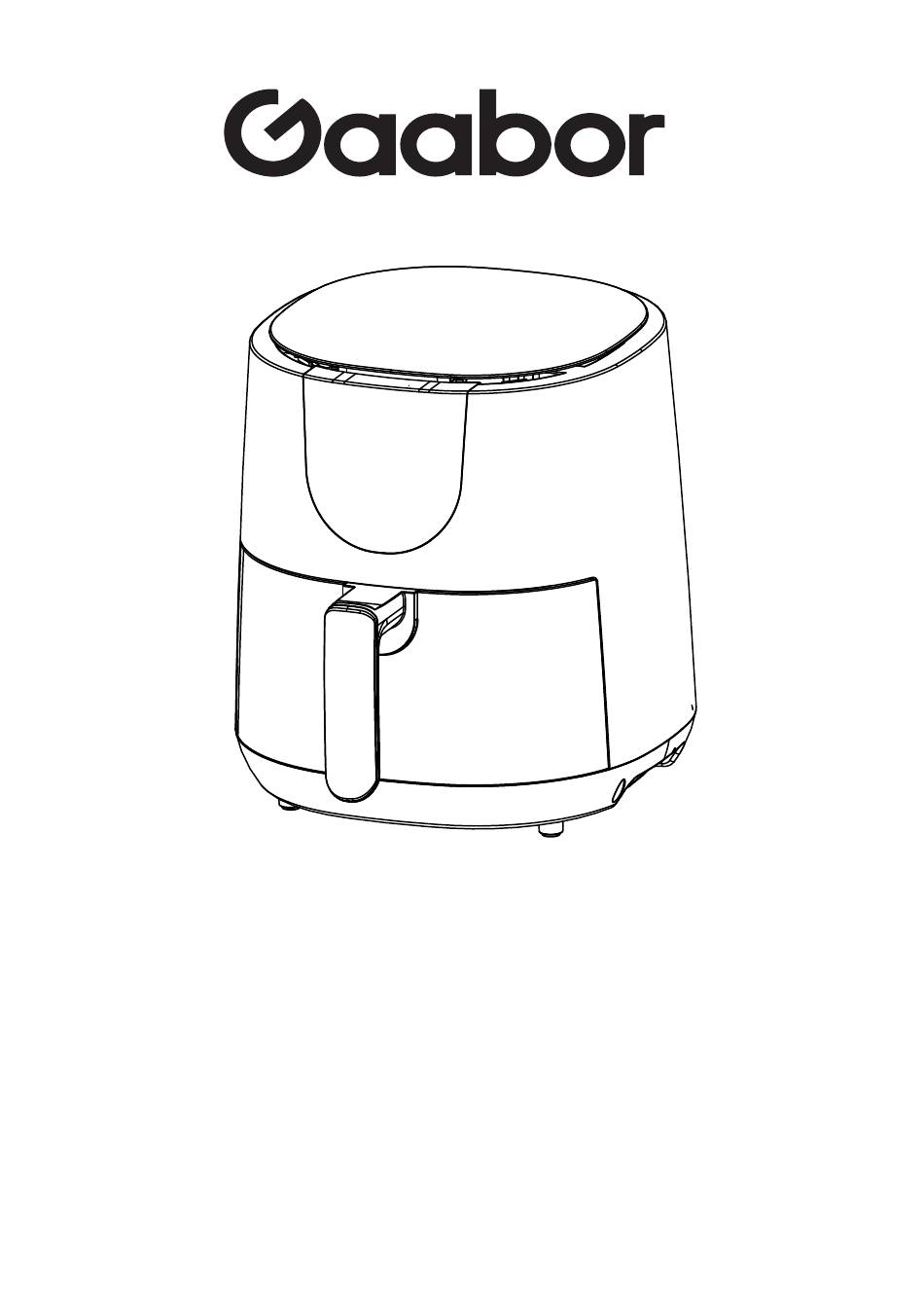

Instructions Electric Oven (Air Fryer) Model: GA-E5A Thank you for purchasing our product. Please read this manual carefully before use.
Page 3
The air flows in from the inlet and out from Air outlet the outlet to form a hot air circulation. Power line Power connection line. Model GA-E5A Standard IEC: 60335-2-9:2019 in conjunction with IEC: 60335-1:2010 Product Dimensions 350x290x318mm Net Weight About 4.2kg...
Page 4
GA-E5A Test Specifications and Standards IEC 60335-2-9: 2008 IEC 60335-1 : 2010 EN 60335-2-9: 2003 + A1 : 2004 +A2: 2006 +A12: 2007 +A13: 2010 EN 60335-1 : 2012 EN 62233: 2008...
Page 5
Precaution Before using this product, please read the operating manual carefully and properly keep it for future reference. Danger 1. Do not immerse the enclosure in water or wash it under the tap in case of fire, as electronic components and heating components are installed in the enclosure;...
7. The product includes a micro switch inside. If the frying tray is pulled out during use, the machine will be powered off. Overheating protection The product has an overheating protection system. If the internal temperature control system fails, the overheating protection system will start automatically.
Page 7
Frying by hot air (GA-E5A) 1. Insert the plug into a grounded power socket. 2. Carefully pull the fryer out of the air fryer. (Figure 1). 3. Place the food materials on the grill (Figure 2). Note: Do not overfill or exceed the amount shown in the table below (see "Settings" in this chapter) as this may affect the final frying quality.
Page 9
Minimum - Maximum Time Temperature Additional Menu Turn over (amount of food material/g) (min) (°C) Information Potatoes and French fries Thin frozen 300-700 9-16 Turn over French fries Thick frozen Add 1/2 300-700 11-20 Turn over French fries spoon of oil Home-made French Add 1/2 300-800...
Clean · The product should be cleaned immediately after each use. · The non-stick coating is coated in the fryer, the grill and the inside of the product. Do not clean with metalic kitc henware or abrasive cleaning materials as this may damage the non-stick coating. 1.
Page 12
Fault type and troubleshooting Reason Solution Problem The product power Insert the plug into a plug is not inserted. grounded power socket. Turn the timer knob to the desired You haven't set the timer yet. cooking time to turn on the product. The fryer is not properly Push the fryer completely The air fryer...
Page 13
Fault type and troubleshooting Reason Solution Problem When you cook high oil food mateials in the air fryer, a lot of smoke will seep into the frying tray. You are cooking food Oil will produce white smoke, and materials with a high oil content. the fryer may be hotter than normal, which will not affect the final frying White smoke emits...
Page 14
10 steps for operation of air fryer 1. Connect the power supply, and take out the fryer body; 2. Put the food materials into the fryer body; 3. Place the fryer body into the host machine; 4. Set the cooking temperature of the food materials (according to the amount of food materials); 5.
Page 27
Cửa thoát khí khí để tạo thành một vòng tuần hoàn nhiệt của không khí Cáp nguồn điện Đường dây kết nối bật nguồn. GA-E5A Loại hình sản phẩm IEC: 60335-2-9:2019 in conjunction with IEC: 60335-1:2010 Tiêu chuẩn thi hành 347x347x373mm Kích thước sản phẩm...
Page 28
GA-E5A Test Specifications and Standards IEC 60335-2-9: 2008 IEC 60335-1 : 2010 EN 60335-2-9: 2003 + A1 : 2004 +A2: 2006 +A12: 2007 +A13: 2010 EN 60335-1 : 2012 EN 62233: 2008...
Page 29
Những điều cần chú ý Trước khi sử dụng sản phẩm này, vui lòng đọc kỹ hướng dẫn sử dụng và cất giữ để tiện tham khảo về sau. Nguy hiểm 1. Không nhúng vỏ vào nước hoặc dưới vòi để rửa, vì trong vỏ có các linh kiện điện tử và tầm nhìn xa làm nóng; 2.
Page 30
Lưu ý 1. Đặt sản phẩm trên bề mặt bằng phẳng, nhẵn và ổn định 2. Sản phẩm này chỉ sử dụng trong gia đình. Nó không được sử dụng trong nhà ăn cửa hàng, văn phòng, trang trại hoặc các môi trường làm việc khác. Nó cũng không được phép sử dụng bởi khách trong khách sạn, nhà nghỉ, nơi cung cấp giường và...
Page 31
Rán không khí nóng (GA-E5A) 1. Cắm vào ổ cắm nguồn điện được nối đất. 2. Cẩn thận kéo nồi chiên ra khỏi nồi chiên không dầu. (Hình 1). 3. Đặt các nguyên liệu vào khay nướng. (Hình 2). Lưu ý: số lượng nguyên liệu không được quá đầy hoặc vượt quá số lượng được hiển thị trong bảng dưới đây (tham khảo phần "Cài đặt"...
Page 33
Đặt Bảng dưới đây sẽ giúp bạn chọn cài đặt cơ bản cho các nguyên liệu bạn muốn nấu. Lưu ý: Hãy nhớ những cài đặt này chỉ mang tính chất tham khảo. Do các nguồn, kích cỡ, hình dạng và nhãn hiệu nguyên liệu khác nhau, chúng tôi không thể...
Page 34
Thời gian Min-Max Nhiệt độ Thông tin Thực đơn Quay (lượng thành phần / g) (℃) kèm theo (phút) Khoai tay và khoai tay chiên Khoai tay đông lạnh nhỏ 300-700 9-16 Thêm 1/2 Khoai tay đông lạnh lớn 300-700 11-20 thìa dầu Khoai tay chiên tự...
Page 35
Khoai tây chiên nhà làm Để có kết quả tốt nhất, bạn nên sử dụng khoai tây chiên nướng trước (chẳng hạn như khoai tây chiên đông lạnh). Nếu bạn tự làm món khoai tây chiên, hãy làm theo các bước dưới đây. 1.
Page 36
Các dạng hư hỏng và phương pháp xử lý Nguyên nhân Giải pháp Vấn đề Cắm phích cắm vào ổ cắm điện Chưa cắm phích điện của sản phẩm được nối đất. Xoay núm hẹn giờ đến thời gian nấu Bạn chưa đặt bộ...
Page 37
Nguyên nhân Giải pháp Vấn đề Khi bạn nấu các nguyên liệu có hàm lượng dầu cao hơn trong nồi chiên không dầu, một lượng lớn khói dầu Bạn đang nấu các nguyên liệu sẽ xâm nhập vào nồi chiên. Dầu s có...
Page 38
10 bước vận hành nồi chiên không dầu 1. Kết nối nguồn điện và rút thân nồi ra; 2. Cho các nguyên liệu vào nồi; 3. Đặt chậu vào máy chủ; 4. Đặt nhiệt độ nấu của nguyên liệu (cài đặt theo số lượng nguyên liệu); 5.
Page 39
Monitor Bentangkan menu dan suhu waktu Beralir daripada inlet, bentukkan sirkulasi panas udara Outlet daripada outlet angin Sambungkan kabel. Kabel listrik GA-E5A Model produk IEC: 60335-2-9:2019 in conjunction with IEC: 60335-1:2010 Standar pelaksanaan 347x347x373mm Saiz produk Berat bersih produk Kira-kira4.0kg...
Page 40
GA-E5A Test Specifications and Standards IEC 60335-2-9: 2008 IEC 60335-1 : 2010 EN 60335-2-9: 2003 + A1 : 2004 +A2: 2006 +A12: 2007 +A13: 2010 EN 60335-1 : 2012 EN 62233: 2008...
Page 41
Perhatian Sebelum penggunaan produk ini, silahkan baca buku petunjuk ini secara teliti, untuk jaga dengan baik untuk referensi kedepannya. Bahaya 1. Jangan rendam produk ke air atau dibasahi air dengan kran, karena terdapat komponen elektronik dan aksesoris pemanasan; 2. Jangan biarkan air dan cairan lainnya masuk ke dalam produk ini, untuk menghindari sengatan listrik; 3.
Perhatian 1. Tempatkan produk pada permukaan yang rata, tidak licin dan stabil. 2. Produk ini hanya dibatasi untuk penggunaan normal. Mesin ini tidak boleh digunakan di toko, kantor, padang pertanian atau lingkungan kerja lain.Tidak dapat digunakan oleh hotel, motel, atau tempat yang memberikan akomodasi dan sarapan.
Page 43
Rán không khí nóng (GA-E5A) 1. Cắm vào ổ cắm nguồn điện được nối đất. 2. Cẩn thận kéo nồi chiên ra khỏi nồi chiên không dầu. (Hình 1). 3. Đặt các nguyên liệu vào khay nướng. (Hình 2). Lưu ý: số lượng nguyên liệu không được quá đầy hoặc vượt quá số lượng được hiển thị trong bảng dưới đây (tham khảo phần "Cài đặt"...
Page 45
Pengaturan Tabel di bawah akan membantu anda untuk melakukan pengaturan dasar saat memasak makanan. Catatan: Harap diingat bahwa pengaturan ini hanya untuk referensi. Karena sumber , ukuran , bentuk makanan dan merek berbeda, kami tidak menjamin dapat memberikan pengaturan terbagus bagi masakan anda. Karena teknologi pertukaran udara yang cepat dapat segera memanaskan kembali udara dalam produk, menarik alat penggoreng dari produk dengan cepat saat menggunakan udara panas untuk menggoreng hampir tidak mempengaruhi proses memasak.
Page 46
Waktu Minimum-Maksimum Suhu Informasi Menu Membalikkan (keberatan/g) (℃) tambahan (menit) Daging dan unggas Steak 100-500 8-12 Hamburger 100-500 7-14 13-15 Sosis 100-500 18-22 Paha ayam 100-500 10-15 100-500 Dada ayam Dim Sum Lumpia 100-400 8-10 Membalikkan Ayam frozen 100-500 6-10 Membalikkan Fillet ikan frozen 100-400...
Page 47
Batangan kentang buatan sendiri Untuk hasil yang lebih bagus, menyarankan anda menggunakan pemanasan terlebih dahulu untuk memanggang kentang(Misalnya kentang frozen).Jika ingin membuat kentang sendiri, silahkan lakukan berdasarkan langkah berikut. 1. Kupas kentang dan potongmenjadi bantangan. 2. Rendam batangan kentang ke dalam mangkuk sekurangnya 30 menit, kemudian ambil keluar di atas kertas dapur untuk mengeringkan.
Page 48
Jenis kegagalan dan metode pengobatan Sebab Cara penyelesaian Masalah Soket catu daya tidak tercolok Colokkan steker ke soket daya listrik. dengan baik Putarkan pengatur waktu ke waktu Oven panggang belum terpasang ke masak yang dibutuhkan, air fryer secara tepat untukmenyalakan daya produk. Air Fryer Tidak Sistem perlindungan suhu tinggi Dorong oven panggang ke dalam...
Page 49
Sebab Cara penyelesaian Soal Ketika anda memasak makanan lemak tinggi dalam Air Fryer, banyak asap akan menembus ke panci Anda sedang memasak bahan goreng. Minyak akan menghasilkan makanan yang banyak asap putih, dan penggorengan lemaknya mungkin lebih panas dari biasanya, Produk mengeluarkan namun tidak akan mempengaruhi hasil penggorengan.
Page 50
Cara 10 Langkah bagi Air Fryer 1. Sambungkan daya listrik, tarik oven keluar; 2. Masukkan bahan masakan ke dalam oven; 3. Masukkan oven ke dalam mesin utama; 4. Atur suhu memasak makanan (Pengaturan dengan jumlah makanan); 5. Atur waktu memasak makanan (Pengaturan dengan jumlah makanan); 6.
Page 52
UNITED GAIN LIMITED Manufactuer:HANGZHOU GLOBAL JET ECOMMERCE CO .,LTD Address:1-1407, 501 2nd Avenue,QianTang New Area, Hangzhou.P.R.China Telephone:0571-88269187...
