Mobifree M7110 Owner's Manual

Electric wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
M7110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobifree M7110

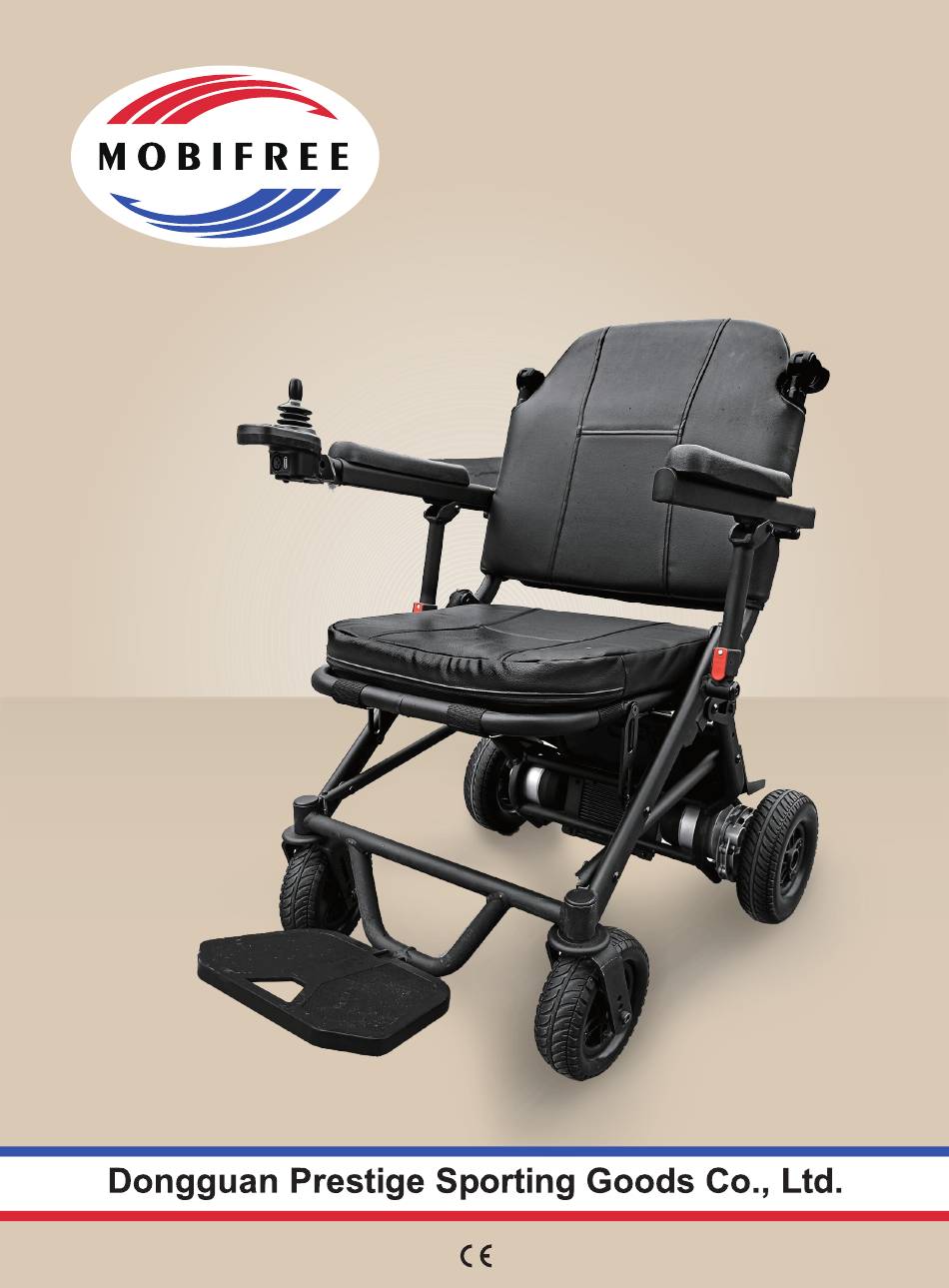

  • Page 1 Owner’s Manual M7110...

  • Page 3: Table Of Contents

    Content Issue 2020-09 REV1 Important information......................2 Safety instruction - overview....................2 1.1. Application scope......................2 1.2. Instruction on driving safety....................2 1.3. Instruction on safety precaution..................3 1.4. Instruction on practice......................3 Specification of design and function..................4 2.1. General overview of product.....................4 2.2. Description of structural composition and diagram..............4 2.3.

  • Page 4: Important Information

    Important information Issue 2020-09 REV1 Dear users, Thank you for selecting the electric wheelchair! You must read and understand the operating instruction, especially the “safety instruction” part before you use the electric wheelchair of the company. The main purpose of the operating instruction is to be familiar with the functions and characters of the electric wheelchair of the company and how to operate it by the best mode.

  • Page 5: Instruction On Safety Precaution

    Issue 2020-09 REV1 9). Do not drive at the gradient of more than 8°. Do not span across the groove that the span is more than 100 mm; Do not forcibly span across the step at the height of more than 40 mm. 10).

  • Page 6: Specification Of Design And Function

    Issue 2020-09 REV1 5). It is suggested to be accompanied by the “carer” in the whole process to avoid danger and accident in the initial practice and initial use. 6). The electric folding wheelchair is controlled by the user through fingers to move forward and backward and turn left and right, and master the speed, so the user must be capable of: Reading and understanding the operating instruction, distinguishing and evaluating the danger, safety awareness and rapid reaction.
  • Page 7 Issue 2020-09 REV1 Backrest Controller Armrest Motor Hand push Release handle button Foot rest Handle Battery Armrest adjustment switch Manual brake Anti-tilting wheel...

  • Page 8: Main Technical Parameters

    Issue 2020-09 REV1 2.3. Main technical parameters: Product Performance Specifications version ： A/0 Manual folding and unfolding Pedal can be extended forward 0-9CM (optional) Operation The controller end of the armrest can be Quick battery disassembly function adjusted forward Expand Size（mm) 820*610*970mm Maximum weight 125 kg Folded size （...

  • Page 9: Operating Instruction

    Operating instruction Issue 2020-09 REV1 3.1. Description of operator’s ability: 3.1.1. The electric wheelchair is controlled by the user through fingers to move forward and backward and turn left and right and folds and unfold, and master the speed, so the user must be capable of: - Be capable of reading and understanding the operating instruction - Be capable of distinguishing and evaluating danger...
  • Page 10 Issue 2020-09 REV1 3.2.2. Instructions for each setting: 3.2.2.1. Power switch, press once to turn on the power, then press again to turn off the power. 3.2.2.2. Horn button key, press the key horn to sound, release the key horn to stop. 3.2.2.3.

  • Page 11: Manual Folding And Unfolding

    Issue 2020-09 REV1 3.2.3. On the controller’s power indicator, the full green light indicates that the battery is fully charged, and the only remaining red light is on when the battery is low and you need to charge the battery. There is a charging jack at the bottom of the upper controller. When the car's battery level is insufficient, insert the charger plug into this hole to charge.
  • Page 12 Issue 2020-09 REV1 ③ Fold the pedal and finally fold the whole vehicle. 3.3.2. Unfold the wheelchair manually As shown below： ① Bend down, put the putter in both hands and lift it up. ② Continue to pull until the vehicle is fully deployed. If you feel that your wheelchair is not responding during the folding and unfolding process, please check if there are obstacles blocking it.

  • Page 13: Manual Brake Switching Function

    Issue 2020-09 REV1 3.4. Manual brake switching function: Press the Manual brake on both sides to switch to manual push mode： 3.4.1 You can use the handle for easy handling. 3.4.2 You can use the pusher to push the car around.

  • Page 14: Usb Interface

    Issue 2020-09 REV1 3.5. USB interface: The upper controller is equipped with a USB interface. 3.6. Foot rest: The front pedal can be folded away and opened during use. 3.7. Overcurrent protection: note! When you ride the electric folding wheelchair for a long time to climb the hill and it is overloaded or exceeds a certain current, the overcurrent protector will jump off.

  • Page 15: Instruction And Precaution Of Battery

    Issue 2020-09 REV1 4.1.5. The user shall often check the air pressure of the pneumatic tire, pay attention to checking the wear of pattern of tire, and replace it when necessary. 4.1.6. Often check the screw, and tighten it if the screw is loosened. 4.1.7.

  • Page 16: Transportation Condition And Storage Environment

    Issue 2020-09 REV1 3)If the wheelchair is not used for a long time, turn off the battery power, the power switch is installed on the battery shell. 5.3. How the battery is charged After the battery is used for a period, the electric quantity of the battery shall be timely checked, when the electric quantity is unsaturated or less, the battery shall be timely charged, and otherwise, the wheelchair will not run normally.

  • Page 17: Environmental Protection

    Environmental protection Issue 2020-09 REV1 Treatment of wastes: The battery wastes of the electric wheelchair shall be properly treated according to the local laws and regulations after the end of service life, such as solidification and deep burying, storage in the waste mine and recycling, and cannot be randomly abandoned. Description of replacement of vulnerable parts under normal use environment The damaged materials are provided and replaced by the manufacturer in normal use.

  • Page 18: Contact Information Of Technical Support

    Issue 2020-09 REV1 4). When the brake is invalid, check whether the clutch is switched to the correct position. Check whether the “control lever” of the controller is normally rebounded to the middle position. The brake or clutch may be damaged, send it back to the factory for maintenance. 5).

  • Page 19: Interpretations Of Graphics, Symbols, Abbreviations And Other Contents Used For The Labels Of Medical Devices

    Interpretations of graphics, symbols, Issue 2020-09 REV1 abbreviations and other contents used for the labels of medical devices Appendix Warranty Card User name ID Card No. Domicile Contact number Machine type Vehicle No. Purchase date MM/DD/YY Warranty period 12 months from the date of purchase (6 months for battery) Manufacturer Dongguan Prestige Sporting Goods Co., Ltd.
  • Page 20 www.solaxtech.com TEL: +86 0769 8592 2501...
