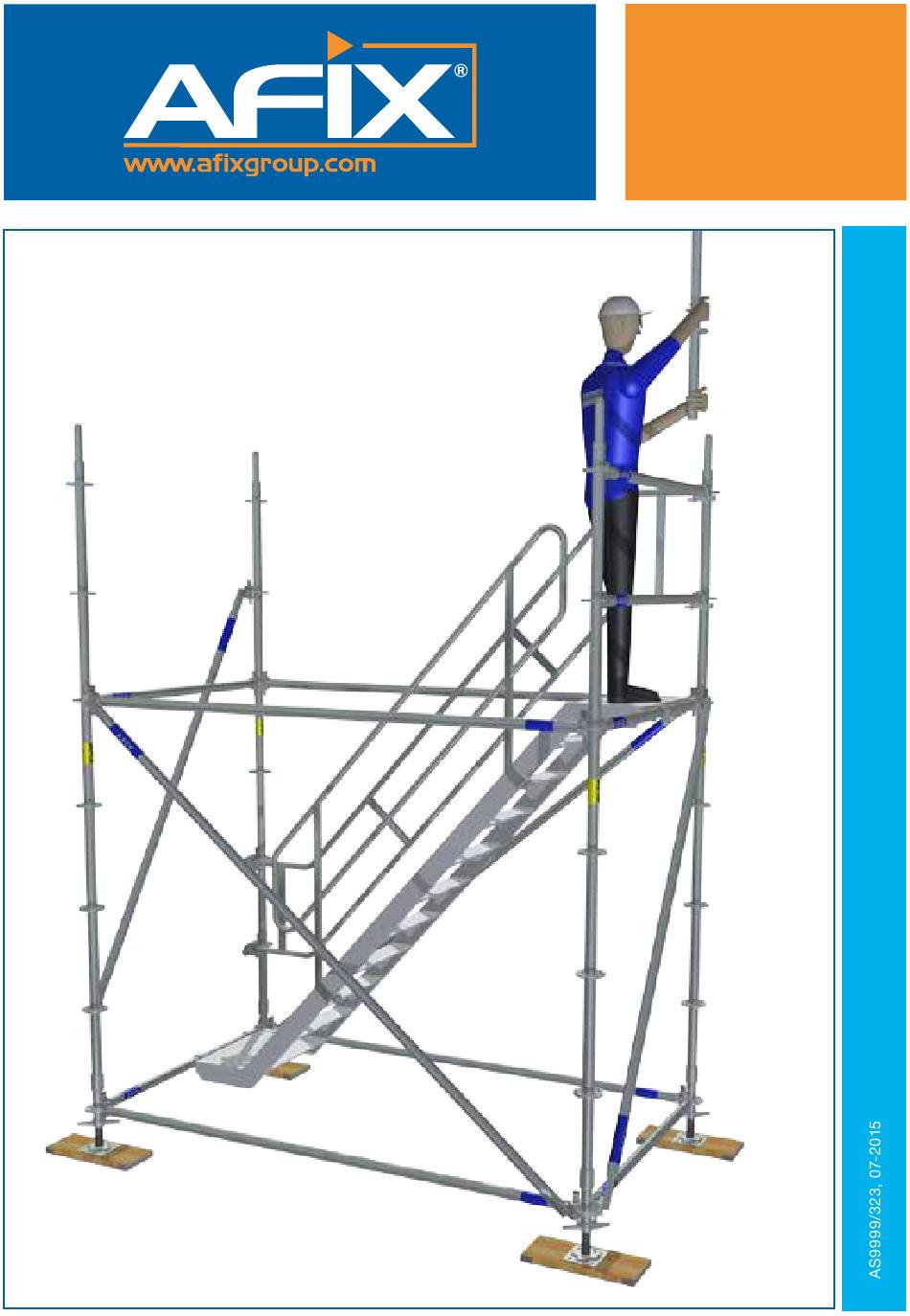

- Page 1 FAST FIX ACCESS LADDERS ASSEMBLY GUIDE...
- Page 2 The AFIX FAST FIX system scaffold is tested according to the norms: NBN EN 12810-1, NBN EN 12810-2, NBN EN 12811-1, NBN EN 1288-2, NBN 1288-3 This means that the AFIX FAST FIX scaffold may be used in: Austria, Belgium, the Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, the Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
-
Page 3: Before You Start
Do not let anyone, who has not read the user guide thoroughly, work with or on the scaffold. All components should be checked for damage at the time of assembly. Damaged components should be repaired by certified personnel or destroyed. Study the FAST FIX assembly and user guide. Fit the collars over the adjustable base plates and swivel the wing-nut (+50mm) upwards. - Page 4 ASSEMBLY INSTRUCTIONS Place the 3m standards in the collars of the base. At a height of 2m, fit ledgers in longitudinal and cross direction. Place the first alu. plat- form stair and slide it to the outside of the scaffold. 21-07-2015...
- Page 5 ASSEMBLY INSTRUCTIONS Mount a ledger as the first guard rail in the 1st ro- sette 0.5m above the plat- form stair. Subsequently, guard rail mount your 2 0.5m higher. Place 2 stairway guard rail adapters at a height of 0.5 and 1.0m. internal Slide the guard rail over internal...
- Page 6 ASSEMBLY INSTRUCTIONS Place another 2.0m standards on each 3.0m standard. Mount the necessary ledgers at 2.0m above the 1 platform stair. Mount the next plat- form stair in opposite direc- tion. Mount at one side 2 led- gers at 0.5 an 1.0m above the platform level.
- Page 7 ASSEMBLY INSTRUCTIONS Fit the platform stair with a internal- and stair guard rail. Be sure that all the guard rails are secured. Fix diagonal braces all 4 sides. Repeat step 9-14 un- til you reach the required height. Mount 2 steel decks next to the platform stair.
- Page 8 Afix advise customers to use standards with dismantable spigot. The special Fast FIX-fix- ture prevent losing collars and adjustable base plates during lift up.
- Page 9 België: Durmelaan 20 Tél. +32 9 381 61 01 9880 Aalter +32 9 381 61 00 België E-mail info@afixgroup.com Nederland: Koopvaardijweg 6 Tél. +31 162 43 51 51 4906 CV Oosterhout +31 162 43 98 28 Nederland E-mail info@afixgroup.com Mauritius: C/O Interface Management Services LTD 9th Floor, Raffles Tower 19 Tél.
