Applications
Cable Interface Definition
Monitor
Red
Black Ground
Brown TIRG1
Blue TIRG2
DC:8-32V
DC12V
Camera
Power
Features
★
ABS
monitor housing endure high temperature.
★7" High Resolution color 1024RGB(H) X 600(V) TFT-LCD.
★ Power input:8V-32V DC.
★Monitor circuit has protector for battery reverse(+/-).
★LED backlight display with constant voltage constant current circuit protection. It can solve
LED working temperature problems (the limit of LED backlight's current) and prolong life.
★Monitor OSD menu can set each channel camera image in 4 mode NOR/MIR/UP/DOWN;the
priority for each mode; each trigger cable can be set to trigger to any display mode; time delay
Red Power
setting.
Black Ground
★Two channels digital wireless signal transmission. It supports sub-screen and two screens.
★ 720P Wireless car camera waterproof stainless steel forklift level IP69K.

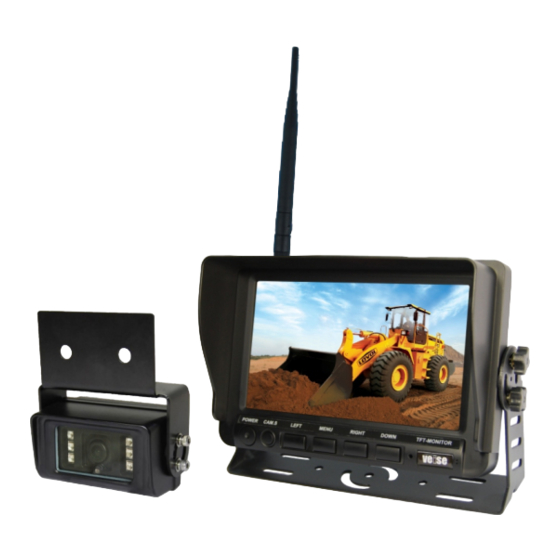

720P Digital wireless system
User Manual
Advertisement
Summary of Contents for veise HDWS-772S231M1-10W
- Page 1 Applications 720P Digital wireless system User Manual DC:8-32V DC12V Features ★ monitor housing endure high temperature. ★7" High Resolution color 1024RGB(H) X 600(V) TFT-LCD. ★ Power input:8V-32V DC. Cable Interface Definition ★Monitor circuit has protector for battery reverse(+/-). ★LED backlight display with constant voltage constant current circuit protection. It can solve LED working temperature problems (the limit of LED backlight’s current) and prolong life.
- Page 2 Digital wireless system technical Parameters Monitor menu operation instructions Display Device Color TFT-LCD Size 7" Digital Screen MODE Image Operation Frequency 2400 ~ 2483.5MHz Mirror Automatic Function Multi screen On the code Setting conversion settings settings mode setting settings ≤-86dBm(1MHZ QPSK MD300RE) Receiving Sensitivity 1)Code settings: Enter the menu, check the code options menu, press the confir...
