Summary of Contents for SunRADON Radon Sentinel 1030

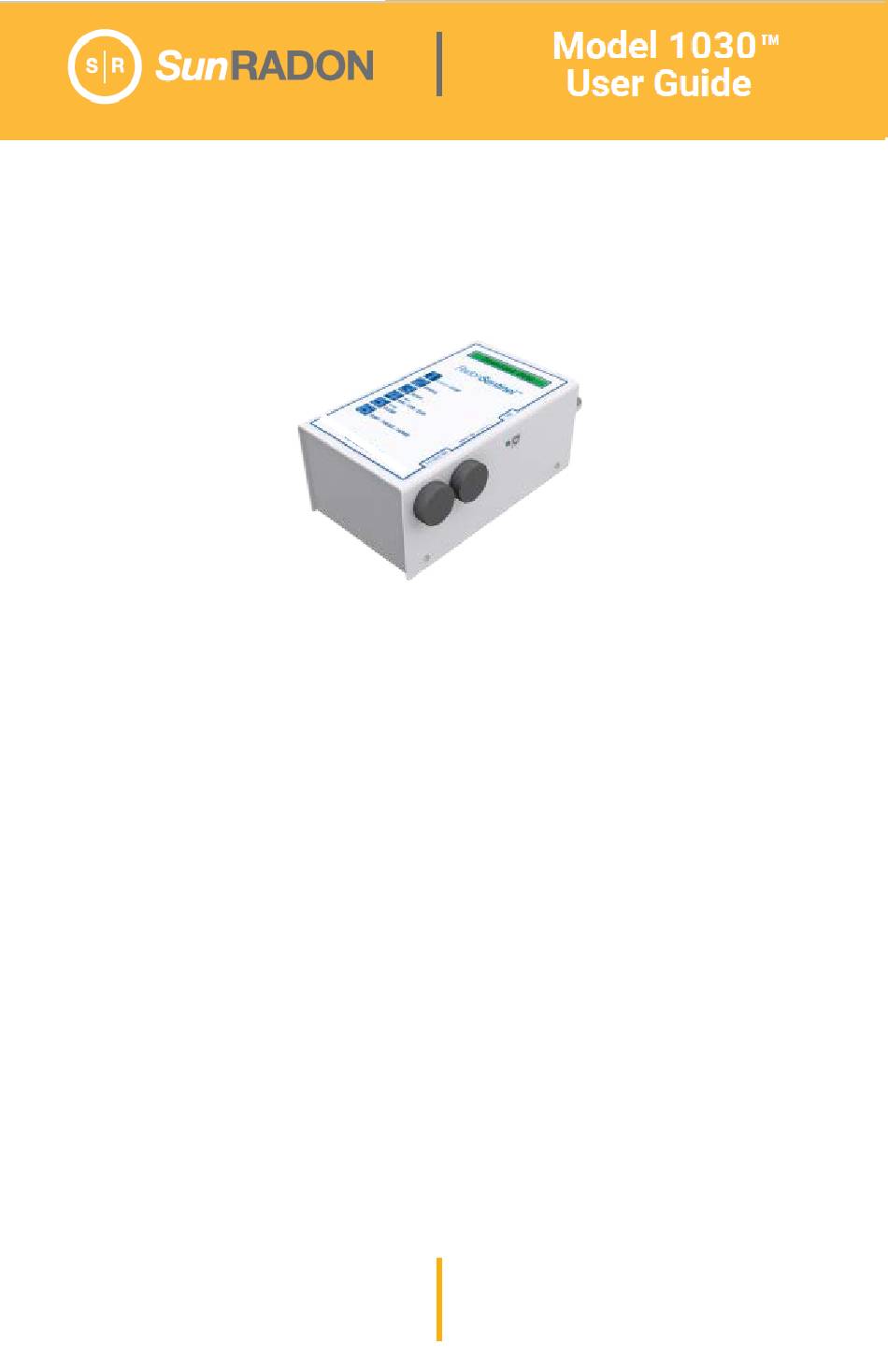

- Page 1 Our Most Sensitive Monitor Yet SunRADON LLC +1 321 255 7011 425-B Pineda Ct. sunradon.com Melbourne, FL 32940 USA...
- Page 2 © 2021 by SunRADON LLC. All rights reserved. The information contained in this manual and the accompanying software program is copyrighted and all rights are reserved by SunRADON LLC. Copying, duplicating, selling, or otherwise distributing any part of this product without the prior written consent of SunRADON is prohibited.
-
Page 3: Preface
Inspect all cables periodically for damage. Do not use any cable that is damaged or has broken insulation. Replace the cable immediately. If any mechanical or electrical degradation is suspected, contact SunRADON LLC for repair or replacement. Never pull on a cable to disconnect it. Always grasp the plug or connector. -
Page 4: Finding Additional Information
Finding Additional Information Online Help — Help is available by selecting Help > Contents from the Continuous Radon Monitor software application menu. SunRADON website — Additional information is available on the SunRADON website: https://sunradon.com/resources-support The U.S. Environmental Protection Agency (EPA) maintains a comprehensive radon website at: https://www.epa.gov/radon, where you can find EPA... -
Page 5: Table Of Contents
Contents Retrieving Data From the Monitor . . 16 Preface ......iii Displaying Test Summary Data ..16 Intended Use . - Page 6 This page is intentionally left blank.
-
Page 7: Introduction

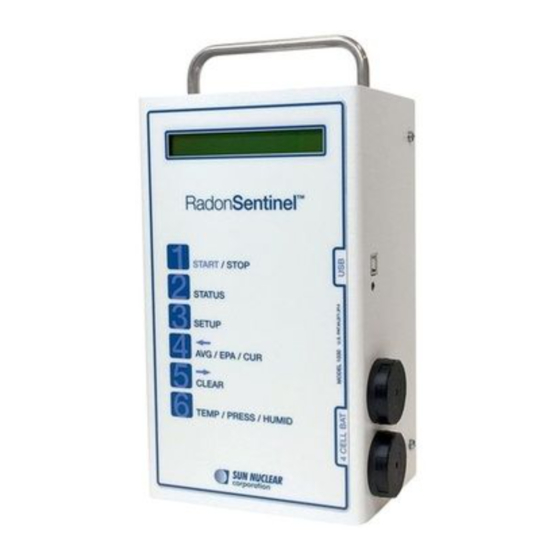

Unpack the Radon Sentinel and verify that the parts described below Model 1030 are included in the package. When unpacking, save the packing material to use when sending the Model 1030 Radon Sentinel to SunRADON for annual calibration. Part Number Description... -
Page 8: Options And Accessories
1028130 Sign, vinyl static cling, “Warning, Closed Building Procedure” 1030000-SC Heavy duty case (for Radon Sentinel, Model 1030 only) Radon support is available 24 hours a day, 7 days a week on the SunRADON Support website: https://sunradon.com/resources-support For more information, see Contacting SunRADON Support on page 28. -
Page 9: Model 1030™ Operation
Model 1030 Radon Sentinel Operation Connecting Power The Radon Sentinel can be operated on battery power or AC power. When the Radon Sentinel is connected to AC power, the battery provides back-up power. Inserting Batteries Disconnect the Radon Sentinel from AC power before installing batteries. A new set of four size C alkaline batteries will operate the device for 300+ hours. -
Page 10: Connecting The Ac Adapter
Connecting the AC Adapter Use these instructions when using AC power for the primary power source and the batteries as backup. Connect USB cable type A connector to USB port on AC adapter. Type A Type B connector connector USB indicator – illuminates when USB cable is USB port on connected to PC... -
Page 11: Controls
The display prompts for the PIN (personal identification number) entry (see Personal Identification Number on page 7). Then, the company name displays momentarily (if set up) followed by the message: Ready to Test. If a test is not started, the settings for Duration, Interval, and Delay appear. If there is data in memory, the message Data in Memory! appears. -
Page 12: Configuring Parameters
Configuring Parameters Note: Changes to parameters affect future tests only. Measurements taken prior to the change will not be affected. General parameters for the Model 1030 Radon Sentinel can be configured using a computer. A limited set of parameters can be entered using the keys on the device (see Setting Parameters Using Model 1030 Radon Sentinel Keys on page 6). -
Page 13: Personal Identification Number
Personal Identification Number The prompt for entering the PIN appears when: The Model 1030 Model 1030 Radon Sentinel is turned on • A test is started • A test is stopped • The setup is accessed • EPA, average, or current value is requested during a measurement •... -
Page 14: Starting A Test
Starting a Test When “Ready to Test” appears on the display, press Start / Stop (1) to start a test. ”Starting Test” appears on the display followed by the settings defined for the test: Memory One Memory is checked. If data is found, memory must be cleared. See Clearing Memory on page 9. -
Page 15: Clearing Memory
Clearing Memory Note: Before clearing the memory, ensure that any test data that you wish to save has been downloaded to your computer. When the memory is full (that is, there are two tests in memory), the messages “Memory Full” and “Download Data” alternate on the Radon Sentinel display. These messages will appear when both memory slots have stored test data. -
Page 16: Computer
Connecting Model 1030 Radon Sentinel to Computer Connect the Model 1030 Radon Sentinel to a computer using the USB cable (furnished with the device). Multiple radon monitors may be connected simultaneously using the available USB ports on the computer, or using an external USB hub. -
Page 17: Sentinel
• perform the installation. Setting Up the Software The software is available on the SunRADON Support website. To download the software from the website, open an internet browser and navigate to https://sunradon.com/resources-support Under Radon Downloads, click the 1030 Software<version_number> and download and Save the file. - Page 18 Note: Two device drivers are installed so the ‘SunRADON Driver Installer’ may run twice. When the drivers are installed, the ‘SunRADON Driver Installer’ window displays drivers that were installed. Click Finish. The ‘Radon Monitor - InstallShield Wizard’ window displays.
-
Page 19: Launching The Software
Launching the Software Launch the software application by double-clicking the Radon Monitor desktop shortcut or by selecting Start > All Programs > Sun Nuclear > Radon Monitor. The Model 1030 Radon Sentinel does not have to be connected when the software is launched. For details about the software, see Software Setup, below. - Page 20 Note: The only data required on the Company Information panel is the Personal Identification Number (PIN). By default, the PIN is set to 1111. The company name, address, telephone number, and license number are optional; however, if this information is not entered, reports that are generated using the Continuous Radon Monitor software will not display the company information.
-
Page 21: Radon Monitor Details
Radon Monitor Details The Inspection Company tab displays details about the Radon Sentinel: model number, serial number, calibration factors (determined during factory calibration), battery voltage, calibration date, and the date and time from the Radon Sentinel. This view can also be used to synchronize the date and time from the computer with the Radon Sentinel. -
Page 22: Retrieving Data From The Monitor
Retrieving Data From the Monitor Note: To retrieve data from the Radon Sentinel, the display on the unit should show READY TO TEST, TEST COMPLETE, or MEMORY FULL. Connect the Radon Sentinel to the computer and launch the Continuous Radon Monitor software. The serial number of the device appears in the text box above the toolbar when the monitor is detected. -
Page 23: Setting Up Customer Information
If more than one device is connected, select the device to work with from the drop-down list above the toolbar and then click Get Data. A summary of any downloaded tests appears in the Test Summary panel on the Inspection Company tab. Start Time Date and time the test started. -
Page 24: Test Chart Views
If a radon mitigation system was installed at test site, select the check box associated with Mitigation System Exists? If a radon mitigation system was working, select the check box associated with Mitigation System Working? To add photo(s): Enter an optional caption in the Picture Caption text box. Note that the first image imported will appear on the cover page of the report. -
Page 25: Saving A Test
• Check boxes below the chart can be used to select the components that are visible in the chart. Radon <pCi/l or Bq/m3> Displays radon measurements graph line for the duration of the test. Motion Errors Displays vertical motion error lines (motion errors occur when device is moved during the test). -
Page 26: Previewing And Printing Test Data
Launch the Continuous Radon Monitor software. On the toolbar, click Open. When the ‘Open Past Inspection’ window displays, browse to the directory where the text files are stored, select the desired file, and then click Open. The data is populated in the software. Previewing and Printing Test Data Raw data is the test data that is downloaded from the Radon Sentinel and saved to a *.txt file on the computer. -
Page 27: Customer Reports
The ‘Print’ dialog opens with your default printer selected. Configure printer properties if necessary and click OK. Customer Reports Data that has been downloaded and saved is used in the customer report, and can be used to create a PDF of the customer report. Previewing Reports The Preview Customer Report option opens a window so you can view the report before printing it. -
Page 28: Printing Reports
Select Test 1 Toolbar for or Test 2 data viewing report Maximize window Data opens in new window Figure 15. Preview Report Printing Reports Download test data and save it or open a saved file. On the toolbar, if there are two reports open, select the radio button for the test to print: Use Test 1 For Customer Report or Use Test 2 For Customer Report. -
Page 29: Specifications
Specifications Model 1030 Radon Sentinel Specifications Description Value Measurement Range 0.1 to 9999 picocuries/liter (pCi/l) or 1 becquerels per cubic meter (Bq/m ) to 99.99 kilo becquerels per cubic meter (kBq/m Accuracy ±20% or 1 pCi/l, whichever is greater after 24 hours Detector •... -
Page 30: Recommended System Requirements
Recommended System Requirements Characteristic Recommendation Operating system Windows 7 or Windows 10 (32-bit or 64-bit) Note: Windows XP is not recommended since Microsoft and no longer support it. RADON Computer hardware • Hard disk space: 850 MB • CPU speed: 1.6 MHz •... -
Page 31: Support And Maintenance
The Radon Sentinel software downloaded from the SunRADON Support website is the latest released version. However, upgrades or patches may become available later. These upgrades can also be downloaded from the SunRADON Support website. For more information, see Support Website on page 28. -
Page 32: Verifying Software Version
Verifying Software Version Launch the Continuous Radon Monitor software. Connect to the radon monitor. Select Help > About from the menu. The About Radon Monitor message displays the version number of the software. Removing Software To remove the Continuous Radon Monitor software from the computer, use the instructions below for the operating system installed on the computer. -
Page 33: Service And Calibration
Connect power and/or insert missing or discharged. four fully charged size C alkaline batteries. Unit will not turn Internal short or disconnection. Contact SunRADON Support. Unit will need to be returned. on with power connected or good batteries System error... -
Page 34: Radon System Error Codes
To open a new support case, click the New Case form link, enter your email address and the serial number of any SunRADON instrument used at your facility, then click Log in to open the Support Dashboard. Warranty The Sun RADON Product Warranty can be found on the SunRADON website, https://sunradon.com/pages/product-warranty... -
Page 35: Regulatory Supplement
Regulatory Supplement SunRADON LLC Symbols The following symbols are used in this document and in SunRADON LLC's product labels. WARNING: This symbol indicates a risk of electric shock. WARNING: This symbol indicates a hazard that could result in major injury or equipment damage. -
Page 36: Operator Responsibility
Reporting Health or Safety Related Issues or Concerns Should the need arise to report any safety or health related issues or concerns regarding the use of SunRADON products, SunRADON should be contacted directly. See Contacting SunRADON Support on page 28. Modifications to Equipment Any changes or modifications to the device that are not expressly approved by SunRADON LLC could void your warranty. -
Page 37: Index
Index AC adapter, connecting 4 ending a test 8 accessories 2 EPA, AVG, CUR 8 additional information error message hardware 27 application help iv software 27 on the web iv errors, system 28 application iii humidity, affects battery 3 batteries inserting 3 replacing 9 information... - Page 38 radon monitor removing 26 AC power 4 requirements 24 battery retrieving data from monitor 16 requirements 3 upgrade 25 calibration 27 using 11 connecting power 3 verifying version 26 description 1 specifications details 15 technical 23 disposal 25 standalone operation 3 intended use iii starting a test 8 introduction 1...
- Page 39 +1 321-255-7011 www.sunradon.com...
