Summary of Contents for POWERLOK Rack PDUs
- Page 1 Installation & Operating Manual Ver. 1.4.3 PowerLok Rack PDUs POWERLOK RACK POWER DISTRIBUTION...
-
Page 2: Table Of Contents
Rack PDU Installation & Operating Manual Contents Introduction ..............................3 Safety Precautions ............................3 Equipment grounding ..........................4 Product Specifications........................... 4 Mechanical Specifications ......................... 4 Electrical Specifications..........................4 Packaging ..............................5 Regulatory Compliance ..........................6 Installation ..............................6 Power Monitoring ............................. 7 Ethernet Communication .......................... -
Page 3: Introduction
Any use outside of these constraints may void the warranty. • Rack PDUs rated for 240/415VAC may be fitted with a NEMA L22-20 or L22-30 plug that is rated for a higher voltage. Caution must be taken to assure that the rating of the Rack PDU and the supply voltage match. -
Page 4: Equipment Grounding
80% of the PDU’s plug rating. Rack PDUs rated 30A-60A line current contain 20A circuit breakers for receptacle group protection. The circuit breakers are UL-489 Listed and rated 5 or 10kAIC depending on model. -
Page 5: Packaging
Rack PDU Installation & Operating Manual Packaging Rack PDUs are shipped in molded 1.8 EPS foam and 200 double-wall corrugated cartons. 72L Package Dimensions Approx. Lifting Maximum PDUs Maximum height per Ship Weight Handles per pallet 44” x 82” pallet... -
Page 6: Regulatory Compliance
Regulations. Installation Installation of Rack PDUs into a server rack is performed by using the buttons that are already attached to the back surface of the Rack PDU. These buttons mate with keyhole slots located in the server rack. Mounting button detail:... -
Page 7: Power Monitoring

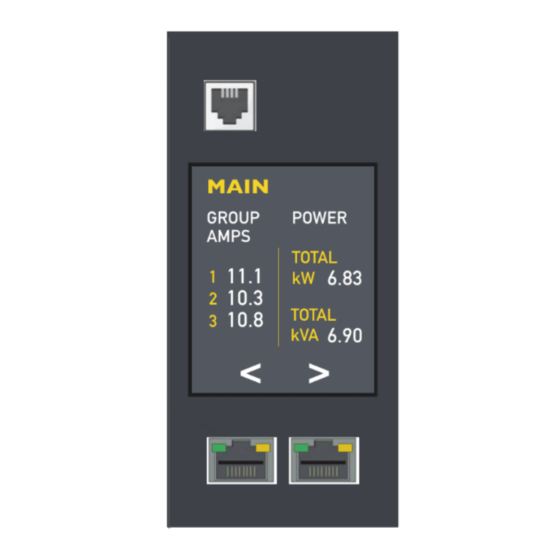

Rack PDU Installation & Operating Manual Power Monitoring PowerLOK models with monitoring include a local touchscreen display and ethernet communication. Monitoring accuracy • Voltage: ± 0.5% at nominal • Current: ± 1.0% of measurement from 250 mA – 1A •... -
Page 8: Ethernet Communication
Rack PDU Installation & Operating Manual Ethernet Communication The Rack PDU is equipped with two RJ45 10/100Base-T Ethernet ports to attach to an existing local area network (TCP/IP v4). This connection allows access to the Rack PDU via a web browser or SNMP client. The PDU has two RJ45 connectors that are bidirectional;... -
Page 9: Web Browser
PDU IP address. If the PowerLok web page does not appear, the PDU is not connected or the network does not recognize the PDU. See section: How to connect your PC/laptop with Linked local and Static IP option or call your network administrator. -
Page 10: How To Connect Your Computer With Linked Local And Static Ip Option
Rack PDU Installation & Operating Manual Admin section of the Web server How to connect your computer with Linked local and Static IP option Linked local Once the user is connected to the network, go to the touchscreen display to identify the assigned linklo IP address. - Page 11 Rack PDU Installation & Operating Manual Open a new browser tab and enter the linklo IP address: 169.254.70.53 to view the web server page as shown in the example below: Static IP The following section describes how to set the user’s computer for a static IP. The PDU has a static IP of 192.68.29.101 as shown in the touchscreen example below:...
- Page 12 Rack PDU Installation & Operating Manual Step 1: Go to control Panel...
- Page 13 Rack PDU Installation & Operating Manual Step 2: Select network and internet Step 3: Select Network and Sharing Center...
- Page 14 Rack PDU Installation & Operating Manual Step 4: Select Ethernet Step 5: Select Properties and then Options...
- Page 15 Rack PDU Installation & Operating Manual Step 6: Select Internet Protocol Version 4 (TCP/IPv4) Step 7: Enter IP address, Subnet mask and Default gateway with numbers as shown and select OK.
- Page 16 This completes the necessary steps to configure for static IP. Open a browser and enter the static IP address to access the PowerLok web server as shown below: How to setup the PDU with the Static IP to the router To setup the PDU for your router follow these steps: Step 1: Use the command prompt and type ipconfig to view the assigned IP address.
- Page 17 Rack PDU Installation & Operating Manual Step 2: To setup the PDU with the IP address in the address block, I used: 192.168.1.10. To determine if the IP address in not in use, type arp-a command as shown below: Step 3: Open the web server using your IP address and open the Admin section to select Edit.
- Page 18 Step 4: Enter your IP address, subnet mask and default gateway and then select Apply. This should complete the necessary steps to configure for the router. Connect the PDU to the router, open a browser and enter the static IP address to access the PowerLok web server as shown below:...
-
Page 19: Firmware Updating
Technologies be liable for damages resulting from any omission in this document. Gateview and the PowerLok logos are registered trademarks of Gateview Technologies. Use of the logos for commercial purposes without the prior written consent of Gateview Technologies may constitute trademark...
