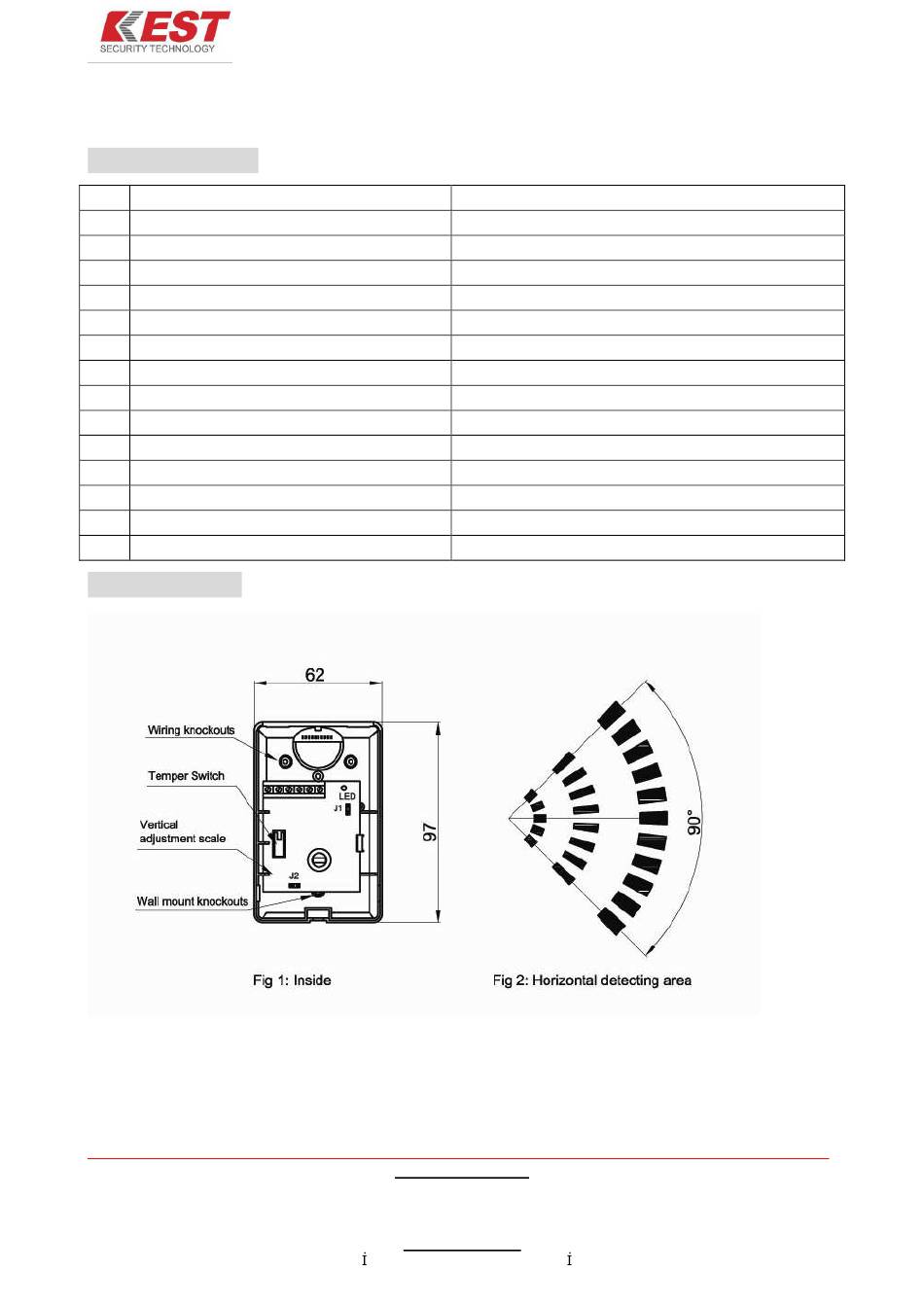

KEST KT-B10W Quick Start Manual

SPECIFICATIONS
No. Items
1 Operating voltage
2 Supply voltage ripple
3 Standby current
4 Current in alarm
5 Operating temp.
6 Storage temp.
7 Operating humidity
8 Storage humidity
9 RF immunity
10 Static immunity
12 Transient immunity
13 Walk detection speed
14 Coverage angle
15 Mounting heights
INSTALLATION
To open the case, use a small flat blade screwdriver and gently push in the tab at the bottom of the case and lift the
cover upwards.
Bracket Mounting Pull back the PCB retaining clip on the right hand side of the housing and lift out the PCB.
Hold the rear housing down on its back on a flat surface. Position the blade of a flat head screwdriver at the mid
point of the groove located between the housing and the swivel knockout. Press down on the screwdriver to pierce
Address : No.25 Baoyuan Road Dongqian Lake Industry Area ,Dongqian Town Ningbo City / CHINA
Phone
Phone : +90 (212) 659 50 98 - (212) 659 45 29 - Fax
KT-B10W Dual Passive Infrared Detector
HEAD QUARTER :
: 0086 574 88366066 - Fax
KEST TURKEY :
Adress : stoç 37 Ada No:5 Bağcılar / STANBUL
Specification
9.5VDC~14.5VDC
3.0Vpp@ 12VDC
16mA
20mA
0 ~50
-40 ~60
5~95% RH.
up to 99% RH.
10V/m with 80% AM from 80MHz~1GHz
8kV contact 15kV air
2.4kV@ 1.2 joules
0.15~3.0 m/s
75°(Min.)/90°(Max.)
1.8~3.2M
: 0086 574 88327726
: +90 (212) 659 39 77
