Summary of Contents for BRIA YM-8368

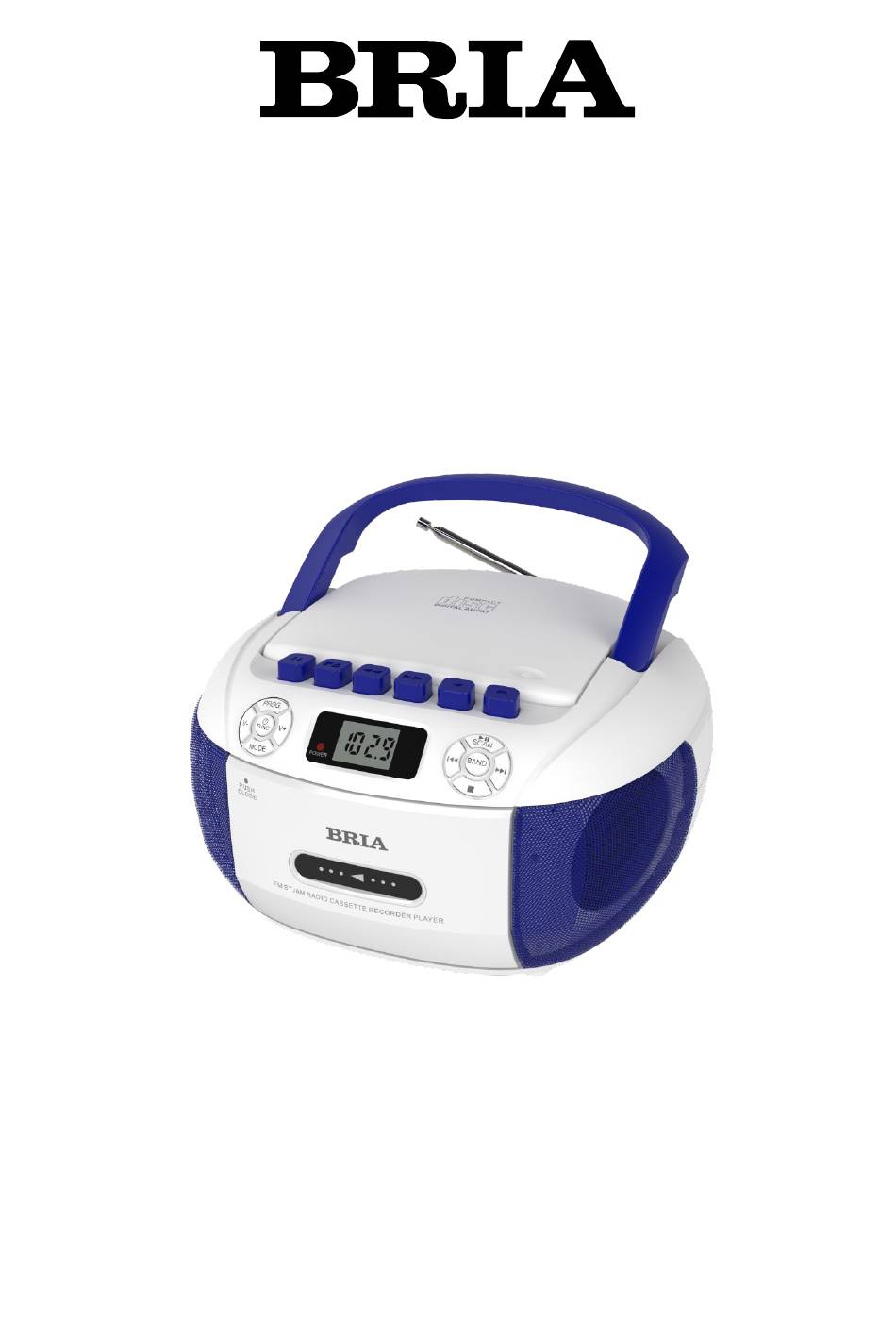

- Page 1 CD/Cassette Boombox YM-8368 User Manual...
-
Page 2: Warnings And Precautions
Warnings and Precautions This symbol ,located on the This symbol, located on the This product utilizes a Class back or bottom of the unit, back orbottom of the unit, 1 laser to read Compact Discs. This laser Compact is intended to alertthe user is intended to alertthe user to to the presence of uninsulated the presence of... -
Page 3: Location Of The Controls
Location Of The Controls 1. FM antenna 2. Handle 3. CD door open/close 4. Cassette stop buttons 5. Cassette stop/EJECT 6. Cassette previous button 7. Cassette forward button 8. Cassette play button 9. Cassette recording button 10. Volume – 11. Playing mode 12. - Page 4 24. AUX jack 25. Earphone jack 26. AC socket 27. Battery door 28. USB port CD Operation 1. Move the function switch ( ) to CD/MP3 position. 2. Press CD door/off button ( ), open the CD door, insert the disc (label side up) and close the door.
-
Page 5: Radio Operation
B. Press the button a second time, it will repeat the whole disc, the LCD will show “REPEAT” as in figure 2. C. when you press the button for the third time, the player will randomly playback, the LCD will show “RAN” as in figure 4. D. -
Page 6: Cassette Operation
2. The LCD will be shown FM or AM with playing stations code. 3. Automatic search; Long press CD play/pause button ( ) to start scan and save the program, it could save up to P01-P20 programs. press button (PROG) to find already stored program and press ( ) or ( ) to play the stored program as desired. -
Page 7: Usb Operation
) key to switch to the Bluetooth mode. When "bt" flashing, it is waiting for connection. Search for the pairing name: "BRIA" PB277" to connect; 2. When the pairing successfully, you can hear a "beep" sound, and the character "bt" light on 3. -
Page 8: Specifications
Specifications Power AC: ~110V/60Hz 10W DC: 9V(UM-2*6pcs) Output power: RMS 1.2 W x2 CD playback frequency: 31.5Hz-16kHz±3dB CD signal/noise ratio: ≥40dB CD sampling frequency: 44.1kHz Frequency range: FM: 87.5-108MHz AM: 520-1710kHz Speaker impedance: 8Ω+8Ω Dimensions: 214.5(L)*215.5(W)*121.5(H)mm Weight: about1.44kg The device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacture will be voided. -
Page 9: Troubleshooting Guide
Troubleshooting Guide Symptom Possible cause Solution No working -Power cable not in AC -Put the AC power cable in jack correctly correctly way CD player will -CD is not loaded properly -Load CD with label side up not play -CD may not be -Use better quality blank media compatible with the player and re-test... - Page 10 SAFETY INSTRUCTIONS READ INSTRUCTIONS: Read all safety and operating instructions prior to use. RETAIN INSTRUCTIONS: The safety and operating instructions should be saved for future reference. FOLLOW INSTRUCTIONS: All operating and safety instructions should be followed. CLEANING: Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners.
- Page 11 Refer all service to a qualified technician. LIMITED WARRANTY Bria provides a limited warranty of 60 Days for all of its products. Bria Warrants this product to the original purchaser ONLY, to be free from defects in materials and workmanship originating from the manufacturer. Bria agrees, at its discretion during the warranty period, to repair or replace the product if it is determined to be defective at “no charge”.
- Page 12 No return will ship back to a PO Box. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. BRIA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OF THIS PRODUCT .
