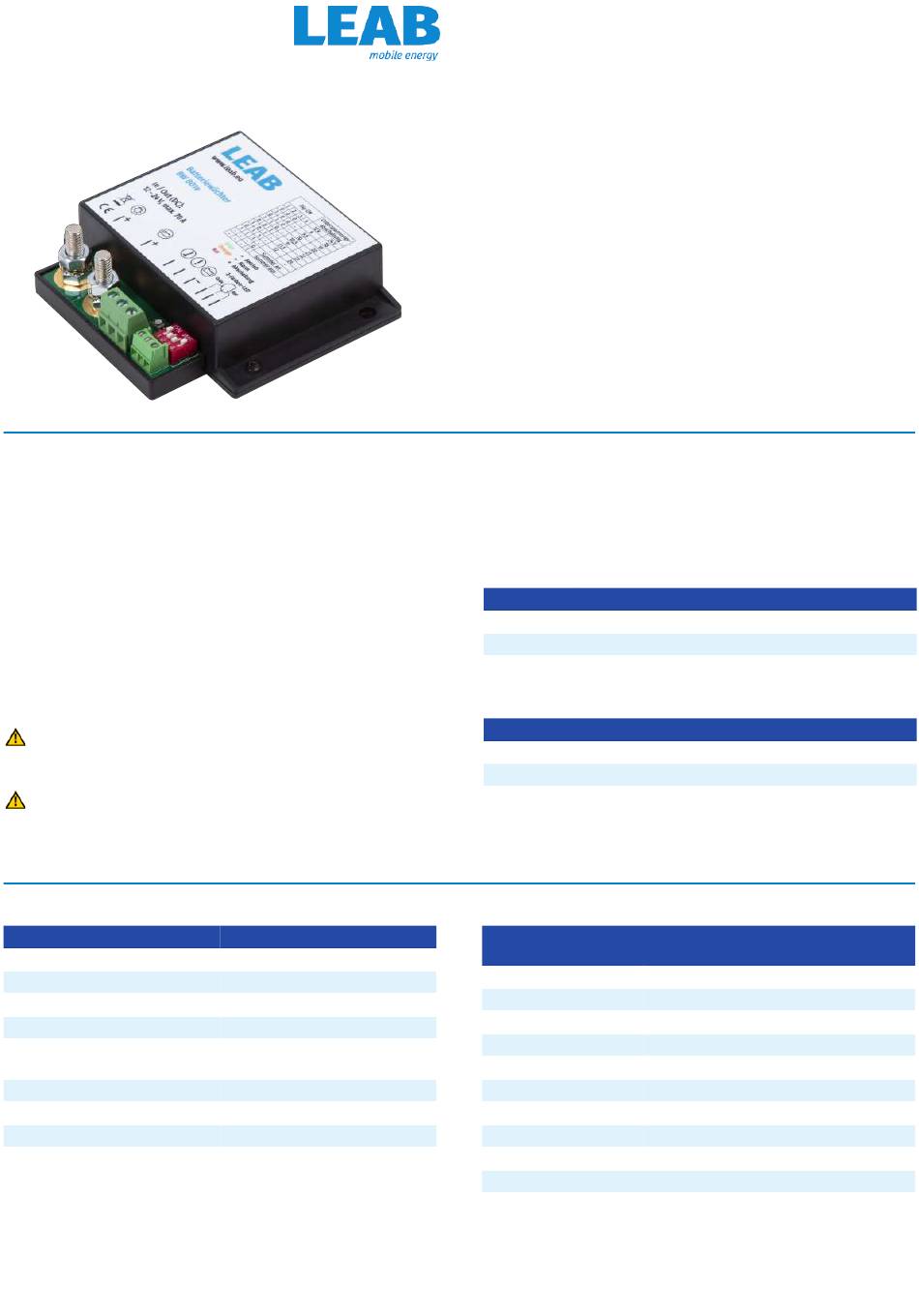

LEAB BW 801e Quick Start Manual

Battery Watch
BW 801e
Quick start guide
V 1

General Safety

This guide supports safe handling of the product. Use the product only in
accordance with its intended use:

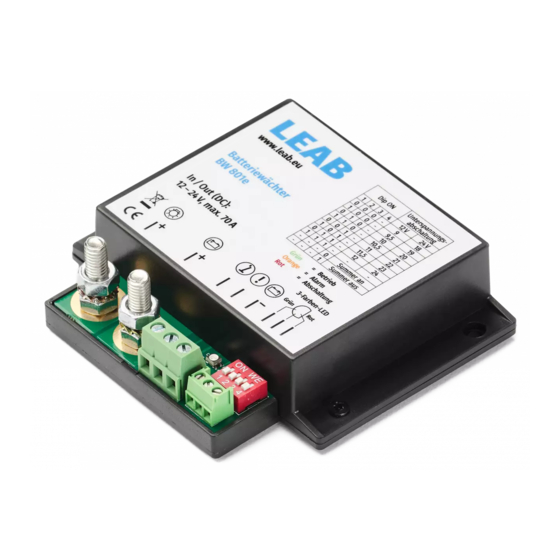

The BW 801e battery monitor is a two-stage safety system for preventing
deep discharge for batteries with a nominal voltage of 12 V or 24 V.
Audible and visual alarms warn you of an approaching deep discharge. If
power continues to be removed from the battery, the battery monitor dis-
connects consumers from the battery to prevent deep discharge. The
threshold values for the alarm and for switching off the consumers are
set via DIP switches.
Any modifications to the product or its components are prohibited and
do not conform to its intended use. Only use original LEAB or LEAB-ap-
proved accessories.
Observe the safety instructions:
WARNING! Incorrect assembly or inadequate wiring can cause a
fire: Only install the unit as described in these instructions and select a
sufficient cable cross-section for connecting the device.
WARNING! Risk of injury from electric shock: Disconnect the bat-
tery negative lead prior to assembly/disassembly.

Technical Specifications

Modell
Nominal voltage (DC)
Continuous load
Overload (10 s)
Switch-off voltage
Betriebstemperatur
Internal consumption
Dimensions (L x W x H)
Weight
Part no.: 1305041043
BW 801e
12 V or 24 V
50 A
70 A
12 V: 9 V ... 12 V; 24 V: 18 V ... 24 V (ad-
justable)
-30 °C ... +70 °C
6 mA
100 mm x 90 mm x 25 mm
0.11 kg
It is prohibited to copy, duplicate, translate or otherwise pass on
the content of this guide to third parties without the express writ-
ten permission of LEAB.
We make energy mobile.
LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
Tel: +49 (0) 4621 9 78 60-0
Fax: +49 (0) 4621 9 78 60-260
info@leab.eu
NOTE! Incorrect usage can damage the device: Only use the device
within the specified operating parameters.
NOTE! Install the device in a dry and cool location.
NOTE! Residual voltage can cause damage: Do not place the positive
lead on the vehicle bodywork.

Package Contents

No. Name
1x BW 801e battery monitor
2x Insulating cap (400N9V02)
1x 3-colour LED

Accessories

Part number Name
1401036701 3-colour LED in socket with cable (5m)
1401036702 3-colour LED in socket with cable (1m)

Setting the Threshold Values (DIP Switches)

DIP ON Switch-off
voltage [V]
1 2 3 4 12 V
0 0 0 - 9
1 0 0 - 9.5
0 1 0 - 10
1 1 0 - 10.5
0 0 1 - 11
1 0 1 - 11.5
0 1 1 - 12
1 1 1 - -
- - - 0
- - - 1
Alarm threshold Switch-on
[V] voltage [V]
24 V 12 V 24 V 12 V
18 9.5 19 10.5
19 10 20 11
20 10.5 21 11.5
21 11 22 12
22 11.5 23 12.5
23 12 24 13
24 12.5 25 13.5
- - - -
Internal buzzer on
Internal buzzer off
24 V
21
22
23
24
25
26
27
-
