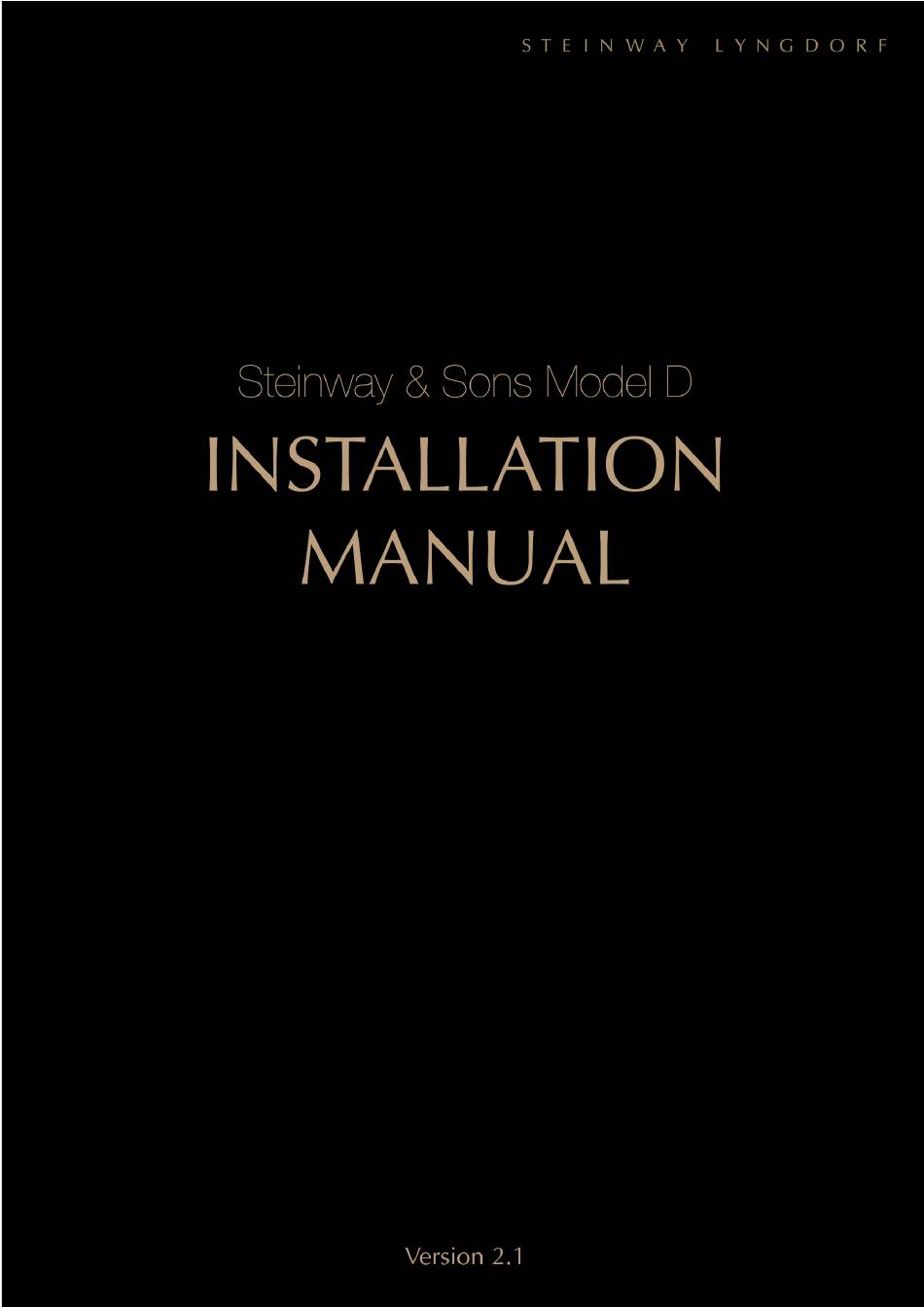

- Page 1 [Skriv tekst]...
-
Page 2: Table Of Contents
CONNECTION OF EQUIPMENT ..............10 ROOM CORRECTION INTRODUCTION ............13 CLEANING THE SPEAKER ................13 STORING THE SPEAKER ................13 REPACKING OF MODEL D MUSIC SYSTEM ..........13 SERVICE INFORMATION ................. 14 Steinway & Sons Model D – Installation Manual, version 2.1... -
Page 3: Introduction To The Model D
Cable for connecting the Model A1 amplifier to the speaker If the speakers are part of a total Model D System, the crate might also include the Model A1 amplifier. Steinway & Sons Model D – Installation Manual, version 2.1... - Page 4 Be very careful when you unlock the clips. They are firmly fixed and may cause damage when they spring open, unless you keep the clips in place with your free is active. hand as illustrated Steinway & Sons Model D – Installation Manual, version 2.1...
- Page 5 Remove your watches, buckles, rings etc. before handling the lacquered system components. Carefully slide out the speaker from the opened box. Carefully lift the speaker completely out of the box. You can now move it using the supplied levers. Steinway & Sons Model D – Installation Manual, version 2.1...
- Page 6 The speaker stand is extremely heavy. To avoid potential damage when removing the transport protection plate, place one of the foam protection plates from the shipping crate below the speaker stand for secure support. Use the supplied Unbraco (Hex/Allen) key to release the bolts. Steinway & Sons Model D – Installation Manual, version 2.1...
- Page 7 28 mm high spikes for wooden floors or floors covered with ordinary carpet. b. 48 mm high spikes for floors covered by thick carpet. c. Non-penetrating feet mainly for marble, granite or similar floor materials. Steinway & Sons Model D – Installation Manual, version 2.1...
- Page 8 NOTE: The feet have rubber facing to protect the floor. Do not push or drag the speakers when they are standing on the feet, as the rubber may be ripped off and damage may occur to the floor. Dimensions: Steinway & Sons Model D – Installation Manual, version 2.1...
-
Page 9: System Placement In The Room
If a symmetrical position is impossible and the distance from each speaker to the listening position is different, then this can be compensated digitally by adjusting the setup in the processor. The speaker should be moved back following the guide-lines for toe-in. Steinway & Sons Model D – Installation Manual, version 2.1... -
Page 10: Connection Of Equipment
CONNECTION OF EQUIPMENT Speaker Cable Wiring The Model D Speaker holds an A1 amplifier in the box behind the speaker. The amplifier connects to the speaker through wires fitted with speakON connectors. A1 DIP Switchboard Addressing The DIP switchboard on the back of each A1 amplifier must be set for correct identification of the speaker connected to it. - Page 11 Left Side / Stereo Setup A Model A1 amplifier is powering the Model D speaker. The amplifier is mounted together with the crossover for the mid-high section in a chassis, which is fixed to the top of the box with two M4 screws.
- Page 12 Right Side / Stereo Setup A Model A1 amplifier is powering the Model D speaker. The amplifier is mounted together with the crossover for the mid-high section in a chassis, which is fixed to the top of the box with two M4 screws.
-
Page 13: Room Correction Introduction
STORING THE SPEAKER The Model D features wooden constructions with high gloss lacquered finish as well as high end electronics. Electronics as well as wooden constructions are vulnerable for sudden changes in temperature as this will cause cracks in the wooden constructions and cause serious degradation of the lifetime of the electronic circuitry. -
Page 14: Service Information
Lyngdorf will not be responsible for any damage due to unauthorized packing or shipment in non-original packing materials. If return is made in authorized packaging, risks are borne by Steinway Lyngdorf. Additional charges may occur if new packing materials are required for return shipment. Steinway & Sons Model D – Installation Manual, version 2.1... - Page 15 Steinway & Sons Model D – Installation Manual, version 2.1...
