Summary of Contents for uneron eSOM3735z
- Page 1 Quick Start Guide...
-
Page 2: Table Of Contents
Quick Start Guide Contents Introduction ..........................2 Features ............................ 2 Specification ..........................3 Block Diagram ......................... 4 Mechanical Drawing ........................ 4 Power ON ..........................5 Essentials You Need ......................5 Development Board Setup ....................7 OS Installation ........................10... -
Page 3: Introduction

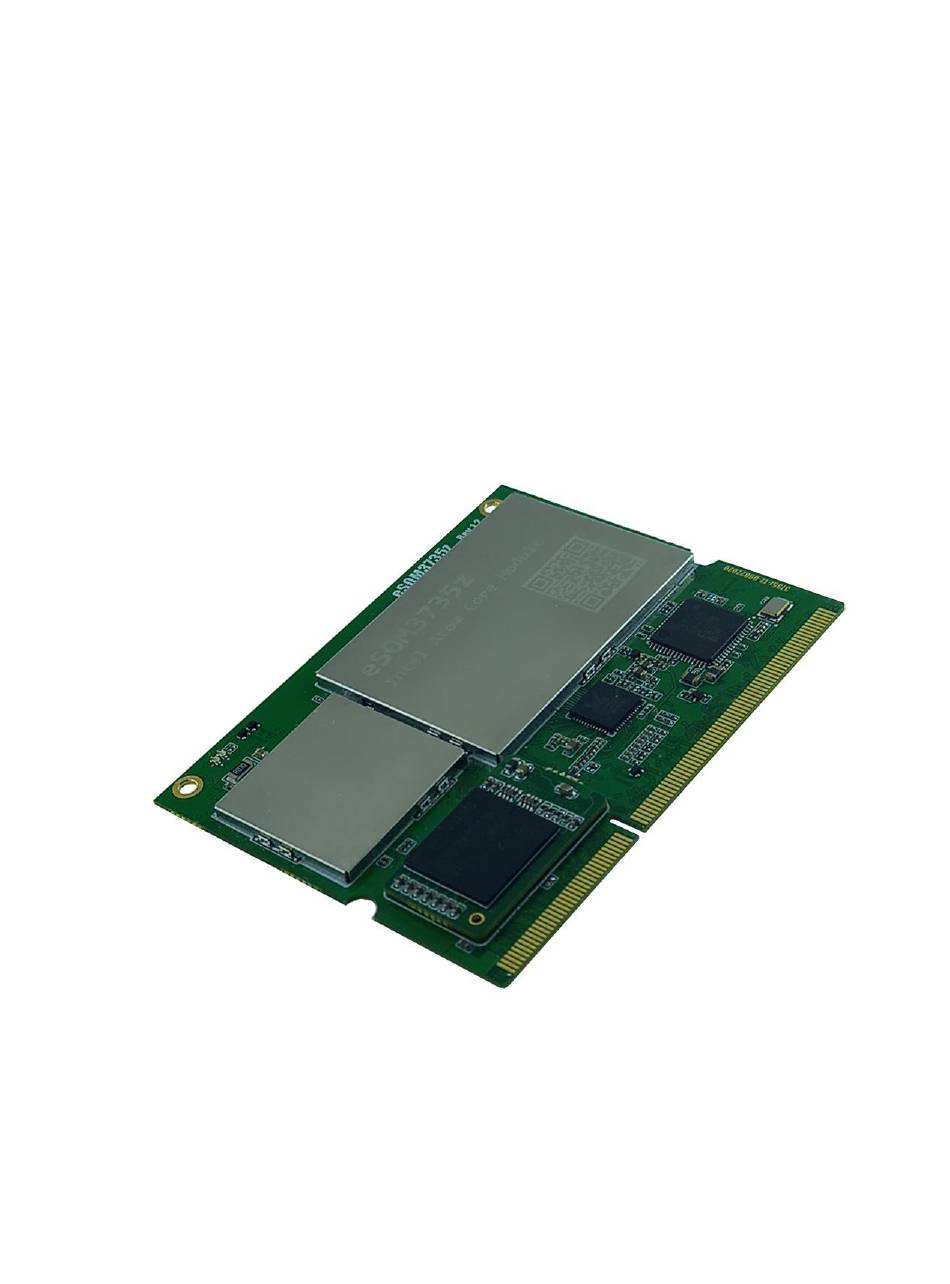

Quick Start Guide Introduction The eSOM3735z is an easy to use 204 pin core board based on the power-efficient quad-core Atom Z3735G processor from Intel’s 22nm Bay Trail line clocked at 1.33 - 1.83 GHz. It has 2MB L2 cache and integrated Intel HD Graphics GPU clocked at 311MHz to 646MHz. -
Page 4: Specification
Quick Start Guide Specification Characteristic Standard Customizable Processor Details Intel Z3735G (Atom Z Series) 1.33 to 1.83 GHz CPU Name Quad Core AI-Compatible 32KB L1 + 24KB L1 Per Core Cache 2MB L2 Total Memory 1GB DDR3L with 32bit RAM BUS Width... -
Page 5: Block Diagram
Quick Start Guide Block Diagram Mechanical Drawing Dimension 6 Layer, ENIG, 0.8mm Weight Size 67.6mm × 52.41mm × 3.9mm... -
Page 6: Power On
Quick Start Guide Power ON Essentials You Need Users need to following items to power on eSOM3735z Board: eSOM3735z core board and development board((eDVK3735z is recommended)) HDMI or LCD display Proper power adaptor (if using eDVK3735z proper power supply is 7.5V to 24V DC) - Page 7 Quick Start Guide Resources files of eSOM3735z is uploaded to network drive, and users can access them from here. Following figure shows contents of eSOM3735z network drive. Documents, drivers, Windows 10 OS image, sample codes and tools are resources files that users can download them for using with coreboard.
-
Page 8: Development Board Setup
Development Board Setup Follow these instructions to power on your board: Plug eMMC module into your eSOM3735z eMMC connector, a hole in eMMC module and corresponding hole on coreboard is considered to users can install eMMC module in the relevant position For using eSOM3735z coreboard you need to expansion board, eDVK3735z is recommended. - Page 9 FPC cable to corresponding slot as shown in the following image (MIPI LCD connection in eDVK3735z). The eSOM3735z support both HDMI and MIPI LCD simultaneous with special Windows 10 that released for this board. Plug core board into corresponding slot of your development board: Plug USB mouse and keyboard.
- Page 10 If you are using eDVK3735z press power button to power on the board, after a few time eSOm3735z launch Windows 10 smoothly. If your board did not launch with Windows 10, refer to next section and install an OS for...
-
Page 11: Os Installation
Quick Start Guide OS Installation A customized Windows 10 image file is ready for eSOM3735z. Installation routine is very easy just using a flash memory with at least 4GB memory capacity. Run Rufus application and from Boot selection section, choose your image file with eSOM3735z_Win10LTSC1809328.iso, then click START button to bootable flash... - Page 12 Quick Start Guide Board start loading OS file, after a while a dialog box is opened, for OS installation click on Win10LTSC1809328 Install. (by default, if you press on Enter Button on keyboard this button is clicked).
- Page 13 Quick Start Guide OS installation is started and a cmd is opened that shows how percent of OS installation is done. In the end of installation process, a dialog opened that shows succussed burning, you should remove flash and click on Reboot System.
