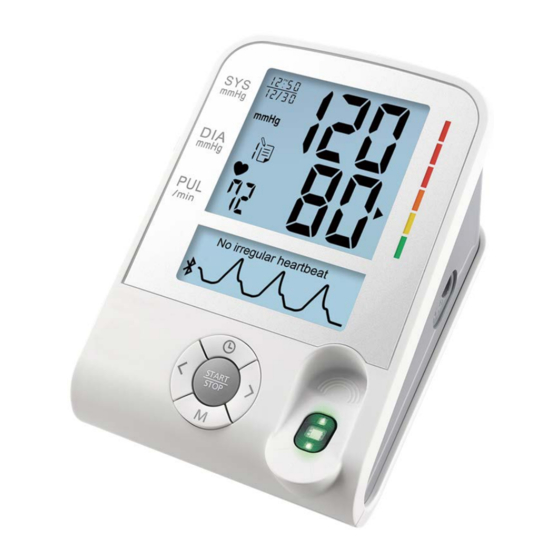

Automatic Health & Life HL858DM Instruction Manual

Automatic upper arm blood pressure monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Automatic

Upper Arm Blood Pressure Monitor

Model No. HL858DM

VER: A001 202101

Table of Contents

Need help?

Do you have a question about the HL858DM and is the answer not in the manual?

Questions and answers

Summary of Contents for Automatic Health & Life HL858DM

Page 1 Automatic Upper Arm Blood Pressure Monitor Model No. HL858DM VER: A001 202101...
Page 2: Table Of Contents
Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method……………………………………………………………………06 Accuracy……………….…………………………………………………………………07 Pr e caut io n s… … … … … … … … … … … … … … … … … … … … … … … … … … … … .0 8 Device Overview……………………………………………………………………………….11 Symbol Definitions………………………………………………………………………….13 Features……………………………………………………………………………………………14...
Page 3: Medical Disclaimer
HL858DM is equipped with an Advanced IHB detection feature to collect and analyze pulses. If the specific irregular heartbeats are detected and it may affect blood pressure reading with deviation, the device will give the user a warning signal.
Page 4: About Blood Pressure
About Blood Pressure A. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
Page 5 About Blood Pressure A. WHO blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the World Health Organization (WHO), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.
Page 6: Measurement Method
Measurement Method HL858DM Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts.
Page 7: Accuracy
Accuracy HL858DM Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL858DM Automatic Upper Arm Blood Pressure Monitors have performed equivalent to measurements taken with this scientific...
Page 8: Pr E Caut Io N
Precautions Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider. Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time.
Page 9 Precautions  For those who have had a mastectomy or lymph node clearance, it is recommended to take a measurement on the unaffected side.  When used among medical electronic equipment on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
Page 10 Precautions *Attention ！ Do not use the device on infants, children, or those who cannot express their own intention. To avoid accidental strangulation, keep this product away from children and do not drape tube around neck. The medical device should not used adjacent to or stacked with other equipment. In case adjacent or stacked use is necessary.

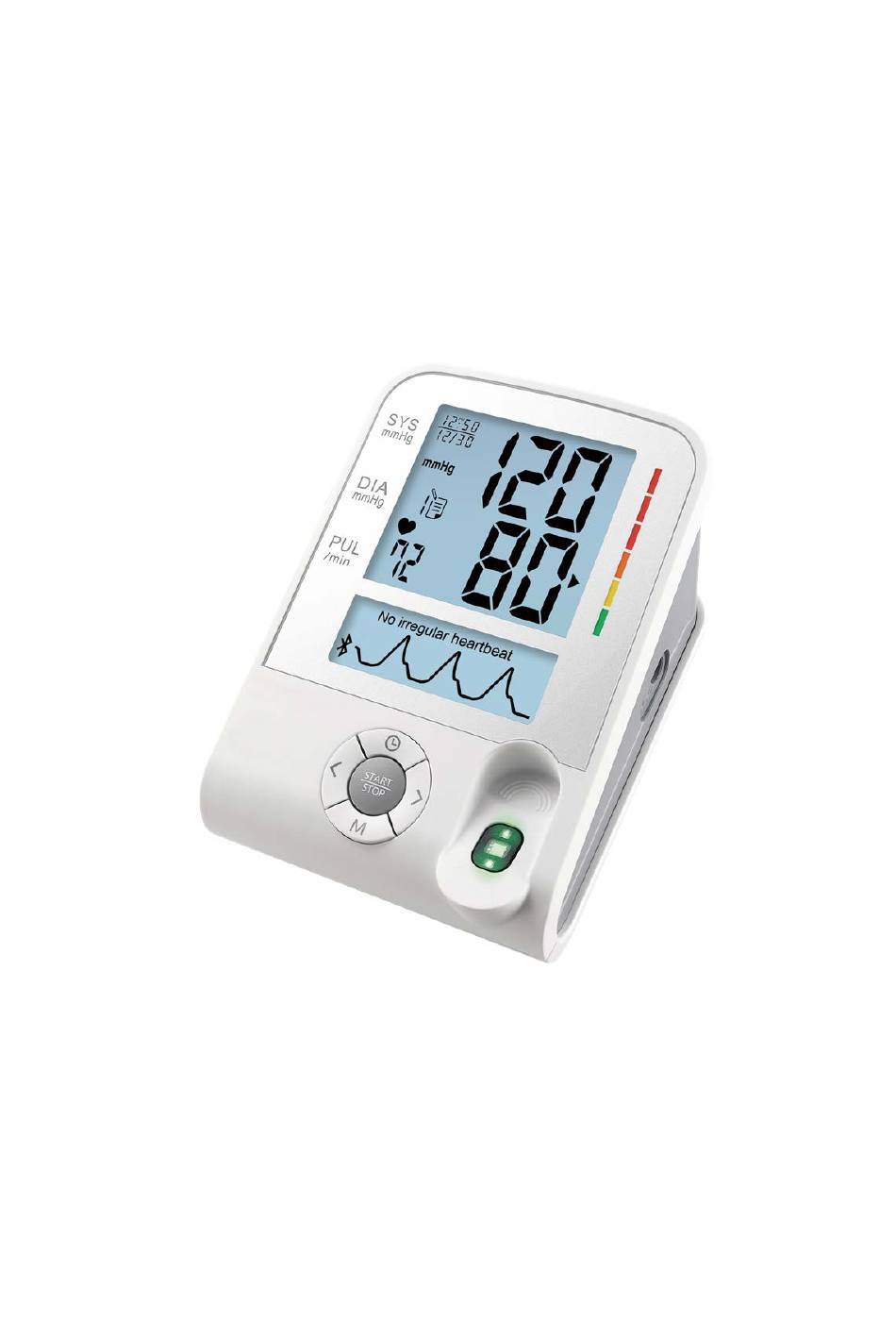

Page 11: Device Overview
Device Overview  Part names and product components DISPLAY BP Category Arm Cuff hole Indicator BAR TIME BUTTON DC JACK START / STOP BUTTON DOWN BUTTON 6V 1A AC/DC Adapter (Optional) LCD DISPLAY MEMORY (Advanced IHB) BUTTON BUTTON (Advanced IHB) DETECTION AREA ARM CUFF WITH TUBE AAA “LR03”...
Page 12 Device Overview  Unit display Hour : Minute (Also represents YEAR in Setting Mode) Heart Rate Month / Date Systolic Pressure Memory Average Blood Pressure Unit Low Battery Symbol BP Category Indicator Memory Record Number Pulse Symbol Diastolic Pressure Heart Rate VER: A001 202101...
Page 13: Symbol Definitions
Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses.  We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat.
Page 14: Features
Features BP Category Indicator  This device is equipped with BP Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Stages of Blood Systolic Diastolic Recommendations by Color Pressure Levels (mmHg) (mmHg) SIGN 49: Hypertension in older people...
Page 15 Features For adults 18 and older who are not on medicine for high blood pressure, are not having a short-term serious illness, and do not have other conditions, such as diabetes and kidney disease. To determine category of risk when systolic and diastolic readings fall into two areas, use the higher of the two numbers for classification.
Page 16 Features Advanced Irregular Heartbeat Detector  This device equipped an Advanced IHB detection feature. The symbol Advanced IHB appears on screen indicates the specific heartbeat irregularity was detected during measurement. The Advanced IHB is designed to enhance the detectability on irregular heartbeats that arise from the internal causes of human body and tend to affect the blood pressure reading during the measurement.
Page 17: Installing Batteries
Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either.
Page 18: Using The Ac/Dc Adapter
Using the AC Adapter This monitor is designed for operation with batteries or an AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. *Note ！ ‧ No batteries are needed when operating with an AC/DC adapter.
Page 19: Applying The Cuff
Applying the Cuff  Wrap the cuff on a bare arm or over thin clothing. Thick clothing or a rolled up sleeve will cause inaccurate blood pressure measurements.  Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on the inside of your left arm to determine where your strongest pulse is.
Page 20: Measurement Procedure
Measurement Procedure  Switch on the Monitor A. Put in 4 AAA “LR03” (1.5V) alkaline batteries. B. Press START/STOP button to switch on the monitor. The monitor will automatically turn to standby mode.  Setting Year, Date and Time STANDBY MODE A.
Page 21 Measurement Procedure B. With the cuff wrapped around your upper arm, and place the finger gently on the Advanced IHB detection area, then make sure the finger place at the correct position, press button to start measurement. All display units appear on the screen. *Note ！...
Page 22 Measurement Procedure E. LCD screen displays your systolic rate, diastolic rate, pulse, Risk Category Indicator Bar, Advanced IHB Detection feature-related symbol and Irregular Heartbeat Detector symbol (if any) with date and time for 1 minute. (Year and Date / Time display alternate automatically) *Note ！...
Page 23: Memory Function
Memory Function  Storing data After each measurement, the systolic and diastolic pressure, heart rate, pulse, Risk Category Indicator Bar, Advanced IHB Detection feature-related symbol and Irregular Heartbeat Detector symbol (if any) with date and time will be automatically stored. The monitor can store up to 120 memories for 3 users, and automatically replace the oldest data with new one.
Page 24: Storage And Maintenance
Storage and Maintenance  General Use  Do not in any way twist the cuff.  Do not press button if the cuff is not wrapped around your upper arm.  Do not drop the product and avoid any strong impacts. ...
Page 25: Bluetooth Communication
Bluetooth Indicator lit constantly Bluetooth feature OFF Bluetooth feature ON When connection established, HL858DM will light Bluetooth indicator if it’s in a reachable range (no more than 10 meters) with each other. Date/Time, Measurement and User Selection Synchronization The BPM’s Date/Time Setting and User Selection can be synchronized by Bluetooth device which have downloaded the software application.
Page 26 Date/Time, Measuring, or  Memory Mode, and the device will turn to Standby Mode . HL858DM can only pair up with one Bluetooth device at a time.  *Note！  HL858DM is subject to and complies with electromagnetic compatibility (EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 300 328 and U.S.
Page 27: Troubleshooting
Troubleshooting INDICATION/ SYMBOLS/SYMPTOMS CONDITIONS/CAUSES CORRECTION Unit does not turn on when Replace them with 4 Worn-out batteries. new AAA (LR03) button is pushed. alkaline batteries. Re-insert the Battery polarities have been batteries in the positioned incorrectly. correct positions. Wrap the cuff Cuff has been placed incorrectly.
Page 28: Limited Warranty
Limited Warranty Warranty For Two Years from the manufacturing date  Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply;...
Page 29: Specifications
Specifications Model Number HL858DM Measurement Method Oscillometric Rated Range of Cuff 0 ~ 300 mmHg Pressure Rated Range of 40 ~ 280 mmHg Determination Measurement Range of 40~199 beats/minute Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max.
Page 30: Note
Note Explanation of symbols : Symbol Explanation Health & Life Information Refer to instruction manual/booklet TYPE BF Applied Part Warning: Portable RF communications equipment (including peripherals such as antenna cables and external To avoid inaccurate results caused antennas) should be used no closer than 30cm (12 inches) to any part of the device, Otherwise, by electromagnetic interference degradation of the performance of this equipment...
Page 31 *Note！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment” HL858DM essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from ...
Page 32: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions  The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Emissions test Compliance Electromagnetic environment – guidance RF emissions RF energy is used only to maintain device’s operation.
Page 33 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity  The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Compliance Electromagnetic environment – Immunity test IEC 60601 test level guidance level Portable and mobile RF communications 3V rms...
Page 34 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. IMMUNITY Test frequency Modulation TEST LEVEL (MHz) (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 1845 Pulse modulation 217 Hz 1970...
Page 35: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
