ADDIMP 3D CURTISS H-75 Assembly & User's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ADDIMP 3D
CURTISS H-75
Assembly userguide
ADDIMP 3D Original
Version 1.0
Une création originale ADDIMP 3D

Advertisement

loading
Need help?

Need help?

Do you have a question about the CURTISS H-75 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADDIMP 3D CURTISS H-75

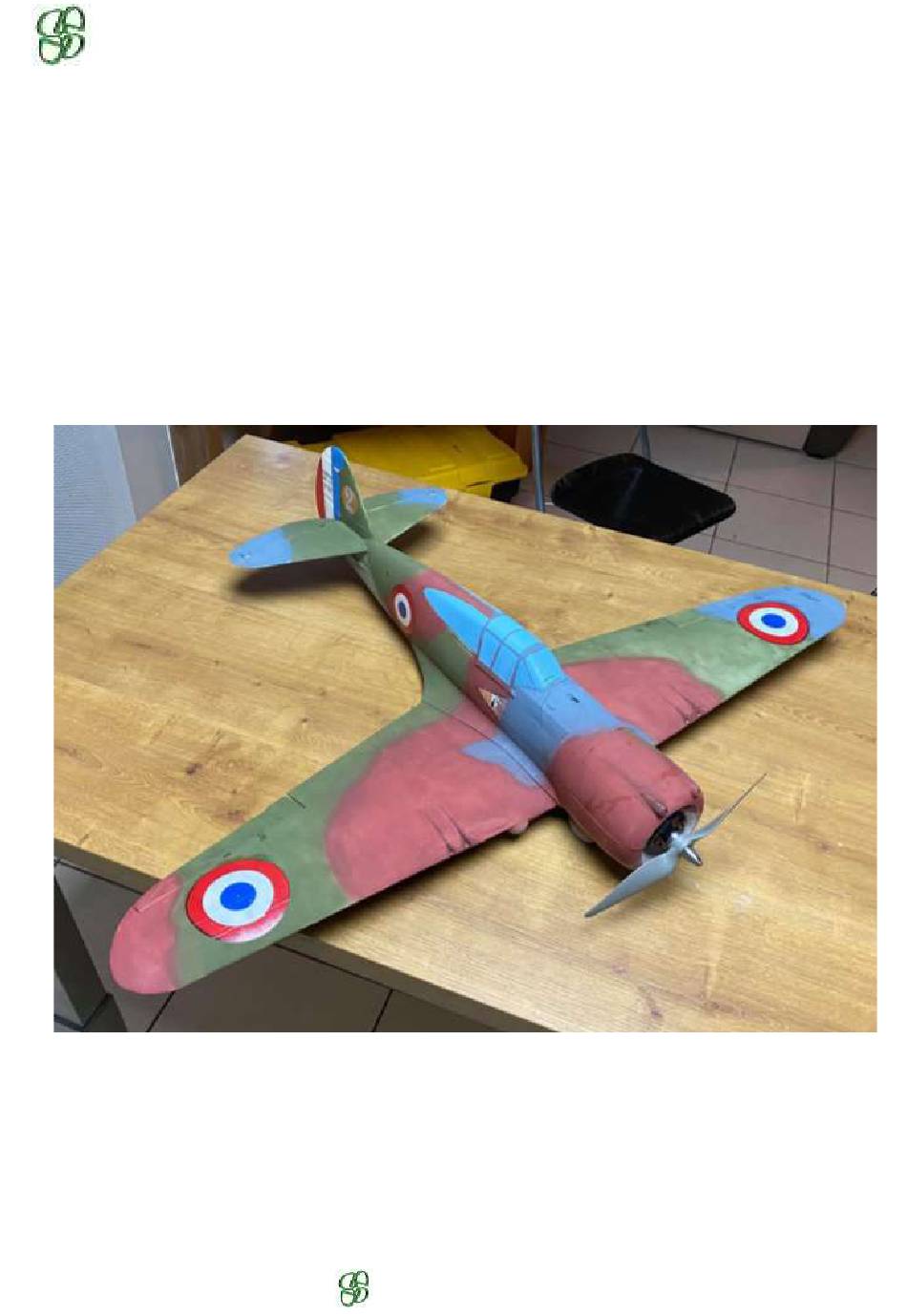

  • Page 1 ADDIMP 3D CURTISS H-75 Assembly userguide ADDIMP 3D Original Version 1.0 Une création originale ADDIMP 3D...
  • Page 2 1- History The Curtiss H-75 Hawk was developed in the USA in the mid-1930s on the basis of the Curtiss P-36. It was of the same generation as the Hawker Hurricane and Messerschmitt Bf 109. It was then part of the generation of modern single-plane fighters, of all-metal construction.
  • Page 3 Center of gravity at 52 mm from the leading edge at root. Construction skill Experience with building some wood or fiber kits Flying skill Flying experience like aerobatic aircraft Versions History Version 1.0 2021, january First Version Une création originale ADDIMP 3D...

  • Page 4: Content Of The Pack

    There are two variants, the Wright R-1830 engine version, type A-1 to A-3 with the rounded engine cover and the Wright R-1820 engine version, type A-4 and A-5 with the more angular engine cover. H-75 A-1 to A-3 H-75 A-4 and A-5 Une création originale ADDIMP 3D...
  • Page 5 Battery LiPo 3S - 1800 à 2200 mA – 45C, dimensions maxi : L 140 x l 55 x h 55 mm  Pay attention to the connectors between the ESC and the battery. Une création originale ADDIMP 3D...

  • Page 6: Paramètres D'impression

    Nozzle diameter = 0.4 mm General layer thickness = 0.25 mm Extrusion width = 0.42 mm Default printing speed = 60 mm/s 1st layer thickness = 80% or 0.2 mm 1st layer width = 105% Une création originale ADDIMP 3D...
  • Page 7 1 + 1 H-75A-4-1_12-Hatch H-75A4-1_12-hatch-rear Fuselage common ../accessoires/H-75-1_12- fishplate F1 / F2 H-75-1_12-F1-F2-eclisse pieces-PLA H-75-1_12-F2 H-75-1_12-F2 H-75-1_12-F3 H-75-1_12-F3 H-75-1_12-F4 H-75-1_12-F4 Elevator cap H-75-1_12-F4-stab-cover Can be printed Canopy H-75-1_12-canopy H-75-1_12-canopy with clear PLA ../accessoires/H-75-1_12- lock hatch-lock pieces-PLA Une création originale ADDIMP 3D...
  • Page 8 Symetrics H-75-1_12-H-stab-G-raccord pieces-PLA Vertical fin H-75-1_12-V-stab-fixe H-75-1_12-V-stab H-75-1_12-Rudder-D1-2X H-75-1_12-Rudder-D2-2X Rudder (2x) H-75-1_12-Rudder-2x H-75-1_12-Rudder-D3 H-75-1_12-Rudder-D4 H-75-1_12-Rudder-D1-3X H-75-1_12-Rudder-D2-3X Rudder (3x) H-75-1_12-Rudder-3x H-75-1_12-Rudder-D3 H-75-1_12-Rudder-D4 Accessories ../ motors-mounts 1_12-MM-« length of motor »- Supports 1_12-MM-Template « screw pattern » Une création originale ADDIMP 3D...
  • Page 9 To facilitate the mount and setup of the servo, it is used a special mount with cover. Each part is labelled with « R » for right side and « L » for left side Une création originale ADDIMP 3D...
  • Page 10 Install the aileron, check all the passage holes of the hinge pin, glue the 2 parts of the aileron together. On the wing, there is 1 Ø2 x 15 x 6.4 hinge to present and adjust. Do not stick it. Une création originale ADDIMP 3D...
  • Page 11 Then assemble the two parts of the wing. Do not forget the Ø3mm carbon tube if necessary (recommended for LW and PETG filaments). Do not glue the lower wing fairings at this time. Une création originale ADDIMP 3D...
  • Page 12 • install the rudder pushrod (if used) in the fuselage and connect it to the horn Rudder • install the hinges in the rudder with the carbon axis • glue the hinges into the fuselage Une création originale ADDIMP 3D...
  • Page 13 ADDIMP 3D Version A1 to A3 Battery hatch Version A4 & A5 Battery hatch Une création originale ADDIMP 3D...
  • Page 14 ADDIMP 3D Une création originale ADDIMP 3D...
  • Page 15 ADDIMP 3D Horizontal Stabilizer Rudder Une création originale ADDIMP 3D...
  • Page 16 Check the two servo housings and the electrical wire passages. Check the two fishplate housings. Install the strap for the battery, provide hook-and-loop strips in the bottom of the battery compartment. Battery strap Fishplate housings Une création originale ADDIMP 3D...
  • Page 17 ADDIMP 3D 9.2- F2 Preparation Check the two fishplate housings. Fishplates housings Une création originale ADDIMP 3D...
  • Page 18 ADDIMP 3D Check the pushrod passages (yellow circles) and the 4 holes for centering (green circles). Une création originale ADDIMP 3D...
  • Page 19 The centering of the sections F3 and F4 is effected by peripheral ribs. Check that they are in good condition when printed as well as that of the receptacle part in the adjacent section. Une création originale ADDIMP 3D...

  • Page 20: Horizontal Stabilizer

    Use CA glue for assembly, Check the passage of the Ø2 mm rod in all the hinge pin holes and the bearings / horn. The length of the axle is 300mm Hinge length 5mm Passages d’axe carbone Une création originale ADDIMP 3D...
  • Page 21 If using a "Z" folded wire, insert it before gluing into the elevator control horn, then insert the wire pushrod into the fuselage. Glue first the left side, fitted with the articulation rod, then the right side. Check the general geometry ⊥ Une création originale ADDIMP 3D...

  • Page 22: Install The Rudder

    The fuselage and the fin receives the two long hinges + the 5mm long one, they must fit into the housing without play. Do not glue them. Long hinges Check that the cap is open for the axle Hinge length 5mm Une création originale ADDIMP 3D...
  • Page 23 If using a "Z" folded wire, insert it before gluing into the rudder control horn, then insert the wire pushrod into the fuselage. Present the rudder with the hinges. Everything must be able to turn without friction. Glue the hinges into the fuselage, check the general alignment. Une création originale ADDIMP 3D...

  • Page 24: Final Assembly

    Glue the lock support in its housing under the hatch. Be careful not to stick the lock. Finish with the assembly of the exhausts and the installation of the engine on its support. The latter sticks into the fuselage and is held by 2 self-tapping Ø3x20 screws. Une création originale ADDIMP 3D...
  • Page 25 ADDIMP 3D Wing belly The bellies are glued together, use 2 pins Ø2mm for helping to center, then glue under the wing. Working with the wing under the fuselage is better to help center. Une création originale ADDIMP 3D...
  • Page 26 H-75 French colors, G-CCVH, https://www.airliners.net/search?registrationActual=G-CCVH&display=detail P-36C, NX80FR, https://www.airliners.net/search?aircraft=18123&display=detail P-36A, Wright-Patterson AFB, https://www.airliners.net/search?registrationActual=38-0001&display=detail The P-36 / H-75 Channel at iModeler Books Monografie Lotnicze n°61 à 63 - P-36 & H-75 Profils : http://www.aeroprofils.com/galerie-122-13-curtiss-h-75-h75a3-301-i-4b.jpg.html Profile publications n°80, Curtiss Hawk 75 Une création originale ADDIMP 3D...
  • Page 27 ➔ Be vigilant and careful when you practice this type of flight, no express or implied warranties do not engage ADDIMP 3D or its partners. - Respect your local reglementation for flying.
