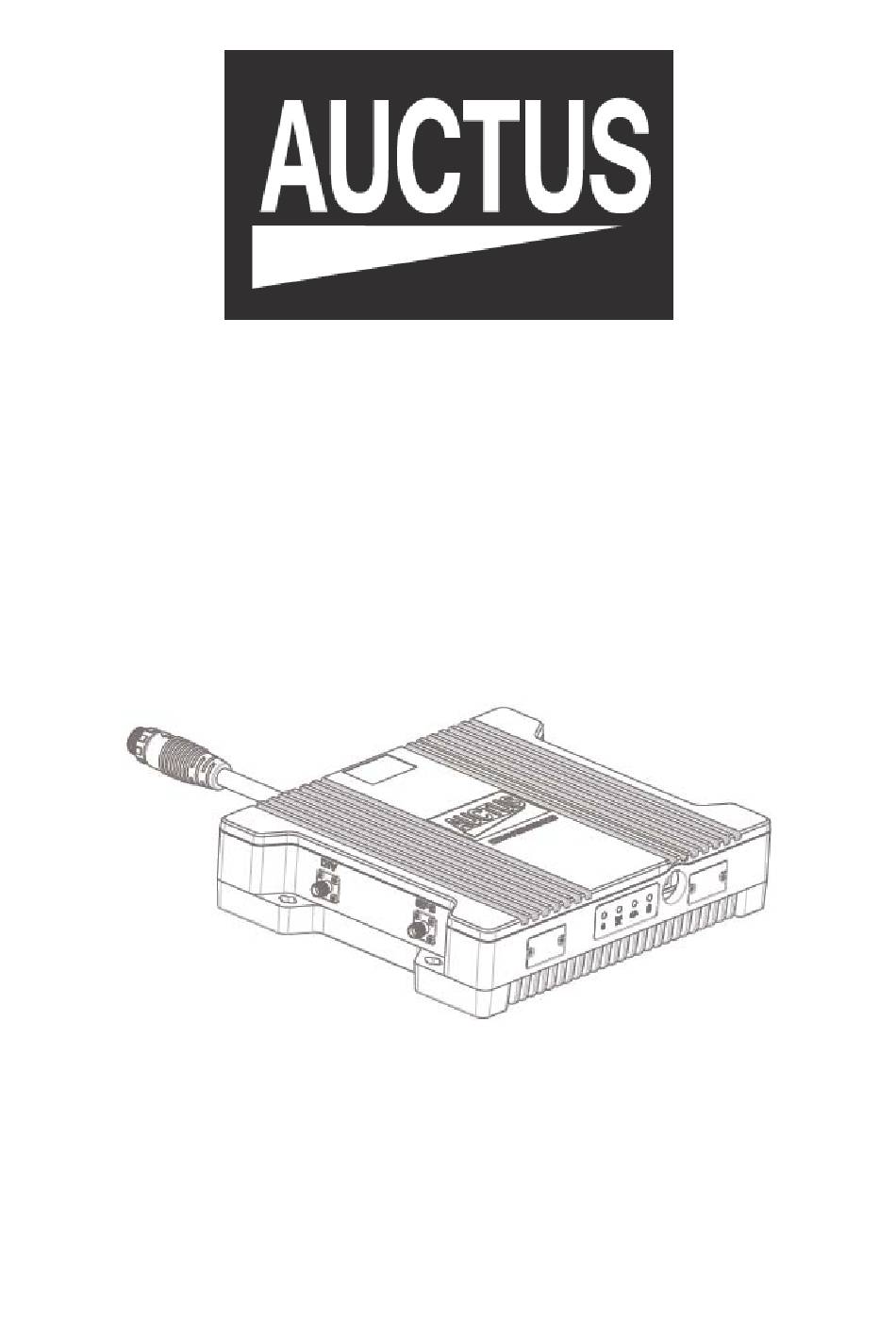

Page 1 Convergence User Manual 335100390_RevA...
Page 2 Thanks for Using! The Manual introduces the information about CONVERGENCE installation and use.
Page 3: Fcc Notice
To User Thank you for purchasing our intelligent converged communication device CONVERGENCE (hereinafter referred to as “the Product”). The Product greatly simplifies your life and work based on advanced techniques and exquisite craft. Please read the Manual carefully before using the Product to master the use and avoid personal injury or property loss due to miss operation.
Page 4: User Safety Information
User Safety Information Please read the following safety information for using the Product at higher efficiency.  The radio can only be maintained by professional technicians. Do not disassemble the radio without permission.  Only designated power adapter, antenna and components should be used. ...
Page 5: Overheat Warning
Package Item Inspection Package items are as follows. For any loss or damage, please contact the dealer from which the product is purchased. Convergence ×1/ Adapter ×1/ RF antenna ×1/ Manual ×1/ Screw kit ×1...
Page 6: Device Overview
Device Overview Part List Part No. Part Name Graded antenna connector (DIV) * Locating antenna connector (GPS) * USB1 connector (for parameter configuration or software upgrading of narrow-band mode) Power indicator LAN Indicator Narrow-band Tx / Rx Indicator Backup battery indicator LAN Ethernet port (RJ45) USB-2 connector (for parameter configuration or software upgrading of broadband mode)
Page 7: Installation Preparation
Installation Preparation  Voltage Inspection Check if voltage of DC power or external power supply is within the range of the Product’s working voltage (13.5 V±10%).  Product Inspection Power on and check if the Product is running normally by inspecting the status of all indicators on front panel.
Page 8  Assemble/Disassemble of LAN Cable Insert LAN cable into LAN Ethernet port (RJ45). Remove the LAN cable connector to disassemble the LAN cable.  Assemble/Disassemble of Backup Battery (Optional) Connect the connector of backup battery to the female connector of backup battery and fasten it clockwise.
Page 9 Parame eter Config guration portant: Ple ease contact local dealer to configure e the followin ng paramete ers before use nfiguration o f Intelligent Relay 1. C onfigure the following par rameters of th he Product vi ia programmi ing software: ...
Page 10 Basic Functional Operation Ensure Product is connected to LAN cable and power supply. Note: Once LAN connection setup completed, LAN network (Ethernet) will auto connect to server when power on  Press Power switch to power on, power indicator will be turn in blue and narrow-band indicator will flicker slowly in green (1.0s on, 5.0s off).
Page 11: Status Indicator
Normally on Slow flickering Quick flickering Status Indicator Power indicator Host Status Power Indicator Status Flicker Period Power off Blue indicator off Power on Blue indicator on Narrow-band Tx / Rx Indicator Host Status Narrow-band Indicator Status Flicker Period Standby Green indicator flickering 1.0s on, 5.0s off Call...
Page 12 Normally on Slow flickering Quick flickering Back Up Battery Notice Please firstly charge the battery before use for it is uncharged before delivery. The battery service life can be affected if battery is long idled or consumed up. The battery should be given one circle of charging/discharging on a semiannual basis to maintain the optimal status of battery capacity.
Page 13 Call The Handset can realize no-difference intercom between Handset at long distance or under strong interference through two Convergences. For example, press the PTT key of Handset A for emission and in the emission process, the indicator on the corresponding relay A will be normally on (green). Handset B will receive the call voice, and the Handset indicator on relay B corresponding to B will be normally on in red.
Page 14: Wall Mounting
 Then re-install the seal cover. Installation  There are 2 ways to mounting the Product to （1） wall or （2） Cylindrical Post/Rod.  Note: During the installation, ensure the RF antenna side is always facing upward. (1) Wall Mounting ...
Page 15 Plane Mountin  For installat tion , ensure t the RF antenn na side is alw ways facing up pward. Cylindrica al/Rod Mou unting  Fix the cylin ndrical moun nting on the P Product using g 4 pieces of M M3*8 washer r head screws s and...
Page 16: Optional Components
Optional Components The main accessories of the Product are included in the product box. For more information about accessories, please consult your local dealer. Note: Please use the accessories specified by our company, if unauthorized use of unauthorized accessories, the consequences are the responsibility of the user. Troubleshooting Fault Cause...
Page 17 socket Backup battery is not installed Install backup battery correctly or it has abnormal voltage and make sure it has sufficient power Receiving and transmission Check if frequency points are frequency point of the Product matched and reconfigure them is unmatched with handset if necessary Find the interference signal sources, or apply for changing...
Page 19 Auctus Technologies Co., Ltd. Building 17, Phase 3, China Academy of Science & Technology Development (CASTD), Gaoxin South No. 1 Road, Nanshan District, Shenzhen Tel.: +86 755 2606 8685 Fax: +86 755 2640 5328 E-mail: info@auctus.cn Website: www.auctus.cn...
