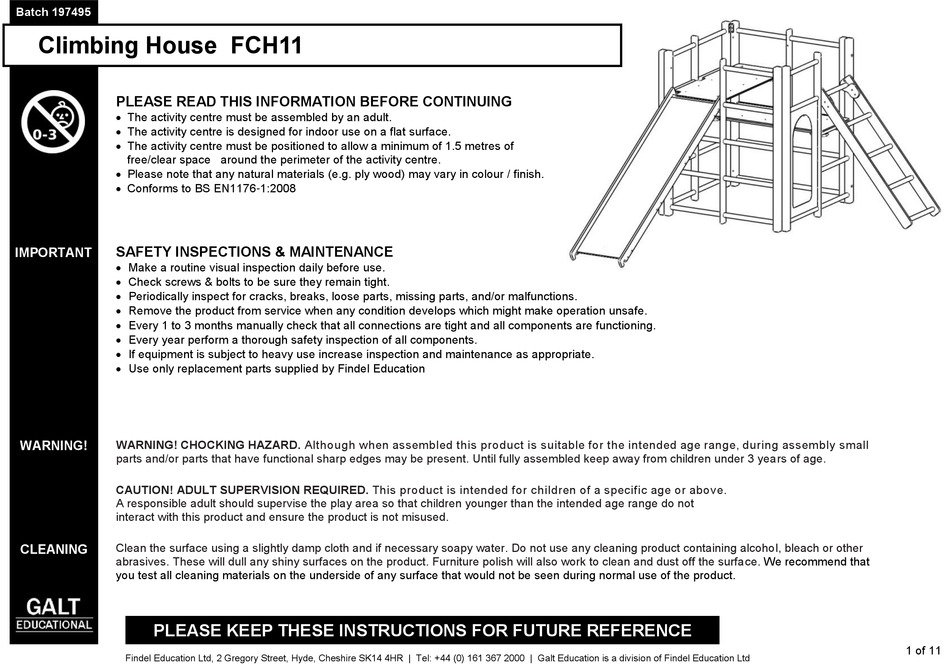

Batch 197495
Climbing House FCH11
PLEASE READ THIS INFORMATION BEFORE CONTINUING
 The activity centre must be assembled by an adult.
 The activity centre is designed for indoor use on a flat surface.
 The activity centre must be positioned to allow a minimum of 1.5 metres of
free/clear space around the perimeter of the activity centre.
 Please note that any natural materials (e.g. ply wood) may vary in colour / finish.
 Conforms to BS EN1176-1:2008
SAFETY INSPECTIONS & MAINTENANCE
IMPORTANT
 Make a routine visual inspection daily before use.
 Check screws & bolts to be sure they remain tight.
 Periodically inspect for cracks, breaks, loose parts, missing parts, and/or malfunctions.
 Remove the product from service when any condition develops which might make operation unsafe.
 Every 1 to 3 months manually check that all connections are tight and all components are functioning.
 Every year perform a thorough safety inspection of all components.
 If equipment is subject to heavy use increase inspection and maintenance as appropriate.
 Use only replacement parts supplied by Findel Education
WARNING!
WARNING! CHOCKING HAZARD. Although when assembled this product is suitable for the intended age range, during assembly small
parts and/or parts that have functional sharp edges may be present. Until fully assembled keep away from children under 3 years of age.
CAUTION! ADULT SUPERVISION REQUIRED. This product is intended for children of a specific age or above.
A responsible adult should supervise the play area so that children younger than the intended age range do not
interact with this product and ensure the product is not misused.
Clean the surface using a slightly damp cloth and if necessary soapy water. Do not use any cleaning product containing alcohol, bleach or other
CLEANING
abrasives. These will dull any shiny surfaces on the product. Furniture polish will also work to clean and dust off the surface.
We recommend that
you test all cleaning materials on the underside of any surface that would not be seen during normal use of the product.
0
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
1 of 11
Findel Education Ltd, 2 Gregory Street, Hyde, Cheshire SK14 4HR | Tel: +44 (0) 161 367 2000 | Galt Education is a division of Findel Education Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the GALT EDUCATIONAL FCH11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Findel Education GALT EDUCATIONAL FCH11

  • Page 1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE 1 of 11 Findel Education Ltd, 2 Gregory Street, Hyde, Cheshire SK14 4HR | Tel: +44 (0) 161 367 2000 | Galt Education is a division of Findel Education Ltd...
  • Page 2 Box Contents Top Platform Bottom Platform 80mm Brass Hex. Head Bolt (83) 4mm Allan Key Frame B Frame A 50mm Brass Hex. Head Bolt (80) 2 of 11...
  • Page 3 WARNING ! Securing the Platforms The Platforms must be used when the frame is in use. The Platforms must always be connected to the frame in the position shown. Failure to use and position in this way is in violation of the European safety standards (EN1176) and could result in the child being injured.
  • Page 4 50mm Brass WARNING ! Hex. Head Bolt THIS LOCATION ON- WARNING ! Securing the Platforms The Platforms must be secured to the frame as illustrated in steps 4 & 5 WARNING ! Securing the Platforms Failure to secure using the supplied bolt is in violation The Platforms must be used when the frame is in use.
  • Page 5 30mm Second toggle only required when used as a Bridge between two frames WARNING ! THIS LOCATION ON- WARNING ! Securing the Slide A Slide must always be connected to the frame when the frame is in use. The Slide must only be secured to the frame in the position shown. Failure to use and position in this way is in violation of the European safety standards (EN1176) and could result in a child being injured.
  • Page 6 35mm WARNING ! Securing the Slide The Slide must be secured to the frame as illustrated in steps 3 and 4. This can be achieved with or without the platforms in place. Failure to secure using the supplied bolt is in violation of the European safety standards (EN1176) 6 of 11...
  • Page 7 WARNING ! Securing the Platforms The Ladder must always be connected to the frame when the frame is in use. The Ladder must only be secured to the frame in the position shown. Failure to use and position in this way is in violation of the European safety standards (EN1176) and could result in a child being injured.
  • Page 8 WARNING ! Securing the Ladder The Ladder must be secured to the frame as illustrated in steps 3. Failure to secure using the supplied bolt is in violation of the European safety standards (EN1176) and could result in the slide detaching in use. 8 of 11...
  • Page 9 WARNING ! Attaching multiple Accessories Only 1 accessory (ex. Climbing wall) can be attached to any one side of a frame. Failure to do this is in violation of the European safety standards (EN1176) and could result in a child being trapped and/or injured ...
  • Page 10 Recommended Configuration 1 10 of 11...
  • Page 11 Recommended Configuration 2 11 of 11...
