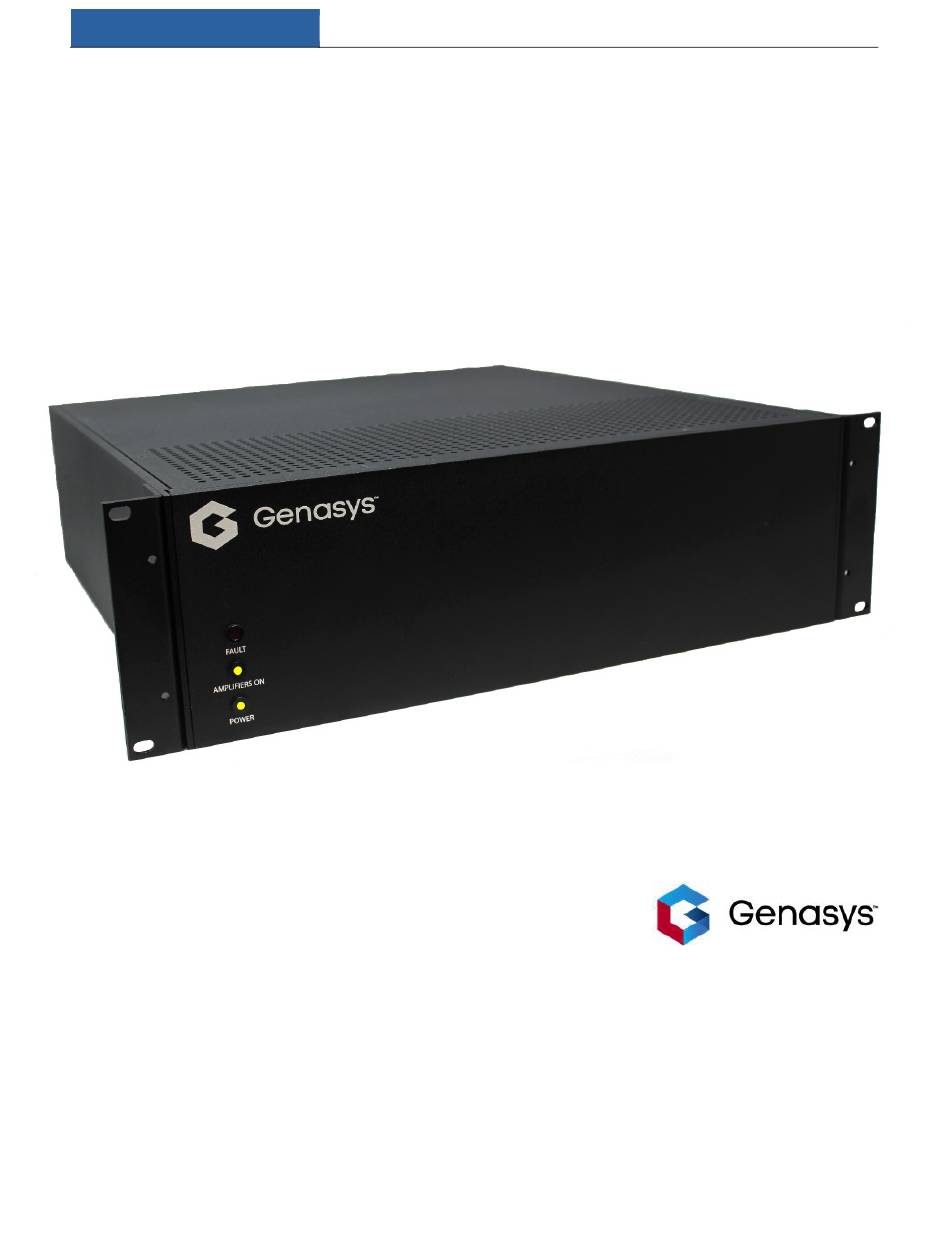

- Page 1 3RU AMPLIFIER GENASYS INC. GENASYS 3RU AMPLIFIER USER MANUAL FAULT AMPLIFIER ON POWER 16262 West Bernardo Drive San Diego, CA 92127 www.genasys.com Manual Part No.: 119456-00 Rev. B Revised: Oct. 2020 CAGE: 1K3W7 Copyright, 2020, Genasys Inc.
-
Page 3: Table Of Contents
4.0 Parts List ........................... 7 5.0 Installation ..........................8 6.0 Connect 3RU to 2RU ........................ 9 7.0 Connect 3RU to 3RU (3RU Daisy Chain) ................. 10 8.0 Connecting Array of Units ...................... 12 9.0 Connecting 3RU to DS-60XL Horn Speaker(s) ................ 13 10.0 Contact Closure Remote Interface .................. -
Page 4: Safety Information
Note the following safety instructions when assembling, operating, and storing the Genasys 3RU Amplifier. • Read and adhere to the instructions detailed in this manual. Keep this manual with the 3RU Amplifier at all times. • Make sure all steps are properly taken during assembly and operation. Failure to follow these steps may result in damage to the device. -
Page 5: Overview

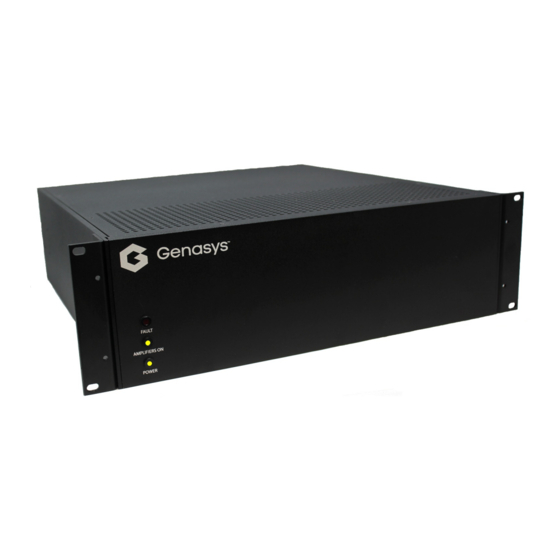

3RU AMPLIFIER GENASYS INC. 2.0 Overview The Genasys 3RU is a compact, rugged amplifier designed to connect to one or more Genasys speaker devices. There are two different options for the 3RU Amplifier, an AC Version (118924-00) and a DC Version (118925-00). -
Page 6: System Details
3RU AMPLIFIER GENASYS INC. 3.0 System Details This section illustrates the various interfaces and components found within the 3RU Amplifier Unit. 3.1 Front Panel POWER LED illuminates green when power is present AMPLIFIER ON LED illuminates green when the amplifier is turned on... -
Page 7: Rear Panel: Ac
3.3 Rear Panel: DC SPEAKER OUTPUTS Sends audio out to Genasys speakers CONTROL: INPUTS Receives control connections from other 3RU or 2RU units CONTROL: OUTPUTS Sends control connections to other 3RU or 2RU units AUDIO: INPUTS Receives audio signals from other 3RU or 2RU units... -
Page 8: Connectors: Plugs, Housings, Adaptors
3RU AMPLIFIER GENASYS INC. 3.4 Connectors: Plugs, Housings, Adaptors 110984-00: CONNECTOR, PLUG, Speaker Output Connector 5.08mm, 4 POS, SCREW TERM 110220-00: CONNECTOR, PLUG, Control Input and Output Connector 5.08mm, 8 POS, SCREW TERM 118662-00: HOUSING, CONNECTOR, DC only: Power Input... - Page 9 3RU AMPLIFIER GENASYS INC. 117329-00: CONN, ADAPTER, RCA Audio Input and Output Connector TO RCA, PANEL MOUNT, FEMALE 117333-00: CONN, PLUG, XLR Audio Input Connector PANEL MOUNT, 3POS, FEMALE 118911-01: CONN PLUG, XLR PANEL Audio Output Connector MOUNT, 3POS, BLACK, MALE...
-
Page 10: Parts List
119456-00 Manual, Printed, 3RU Amplifier Before beginning installation, make sure the 3RU Amplifier was shipped with everything included in the parts list and that there was no damage sustained during shipment. If there are any issues, contact your Genasys sales representative. -
Page 11: Installation
Make sure the 3RU is installed in a location with good ventilation and air flow. Make sure power cord is properly grounded before turning on the 3RU. If the provided plug does not fit into your outlet, consult an electrician. -
Page 12: Connect 3Ru To 2Ru
In most amplifier arrays, the 3RU Amplifier(s) will be connected to a 2RU Command and Control Unit. The 2RU acts as the audio source, as well as the control unit, for all the rack-mounted 3RU units. To connect the 3RU to the 2RU, take the following steps: 1. -
Page 13: Connect 3Ru To 3Ru (3Ru Daisy Chain)
This daisy chain configuration also maximizes the number of speakers that can connect to an array. NOTE: 3RU Unit 1 must already be connected to the 2RU Unit (see previous diagram) or another audio source. Take the following steps to create a 3RU daisy chain. - Page 14 3RU Amplifier Unit 2 (AC) ON FAULT NOT USED ON FAULT NOT USED 3RU Amplifier Unit 3 (AC) ON FAULT NOT USED ON FAULT NOT USED These connections will continue to subsequent 3RU units, following the same pattern. Manual Part NO.: 119456-00 Rev. B...
-
Page 15: Connecting Array Of Units
GENASYS INC. 8.0 Connecting Array of Units When an array of units (made up of a 2RU Command and Control Unit and one or more 3RU Amplifier Units) is connected, it will appear as shown in the diagram below. Though the following wiring diagram uses DC Units, AC Units follow the same pattern. -
Page 16: Connecting 3Ru To Ds-60Xl Horn Speaker(S)
The DS-60XL horn speaker has a two-conductor speaker cable. To connect the speaker to the 3RU, connect this cable to one of the speaker output channel plugs on the back of the 3RU. Each of the two pins on the cable must be inserted into the corresponding (+) and (-) plugs in the desired speaker output channel. -
Page 17: Contact Closure Remote Interface
3RU AMPLIFIER GENASYS INC. 10.0 Contact Closure Remote Interface The 3RU amplifier utilizes Phoenix Contact Connectors for remote monitoring and control of the following functions via contact closures: Remote Power ON/OFF Closed = ON Open = OFF Non-latching Fault Closed = Amplifier Faulted 11.0 Frequency Response... -
Page 18: Maintenance
• Clean surfaces and connectors with a dry, soft cloth. Never use thinners, benzene, alcohol, or any other chemicals. 13.0 Troubleshooting If you experience any of the issues listed below while operating your 3RU Amplifier, follow the provided troubleshooting procedures. If these procedures do not remedy your issue, contact your Genasys sales representative. -
Page 19: Specifications
3RU AMPLIFIER GENASYS INC. 14.0 Specifications Mechanical Weight AC: 22.7 lbs. (10.3 kg) DC: 17.0 lbs. (7.7 kg) Dimensions H=5.25” W=19” D=18” (13.3 cm x 48.3 cm x 45.7 cm) Construction Aluminum Chassis; RoHS compliant Airflow Requirement 32 CFM Electrical... -
Page 20: Technical Support
3RU AMPLIFIER GENASYS INC. 15.0 Technical Support Contact information for Genasys Technical Support is listed below. Genasys Inc. 16262 West Bernardo Drive San Diego, CA 92127 858-676-0574 Technical@genasys.com Manual Part NO.: 119456-00 Rev. B...
