Summary of Contents for Farnear Electronics FN01-4GWB

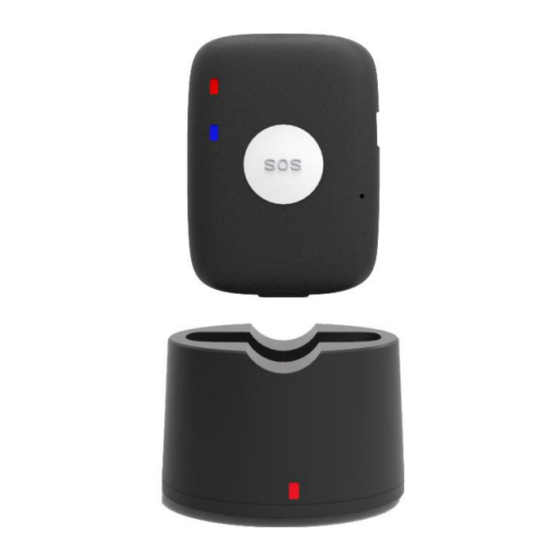

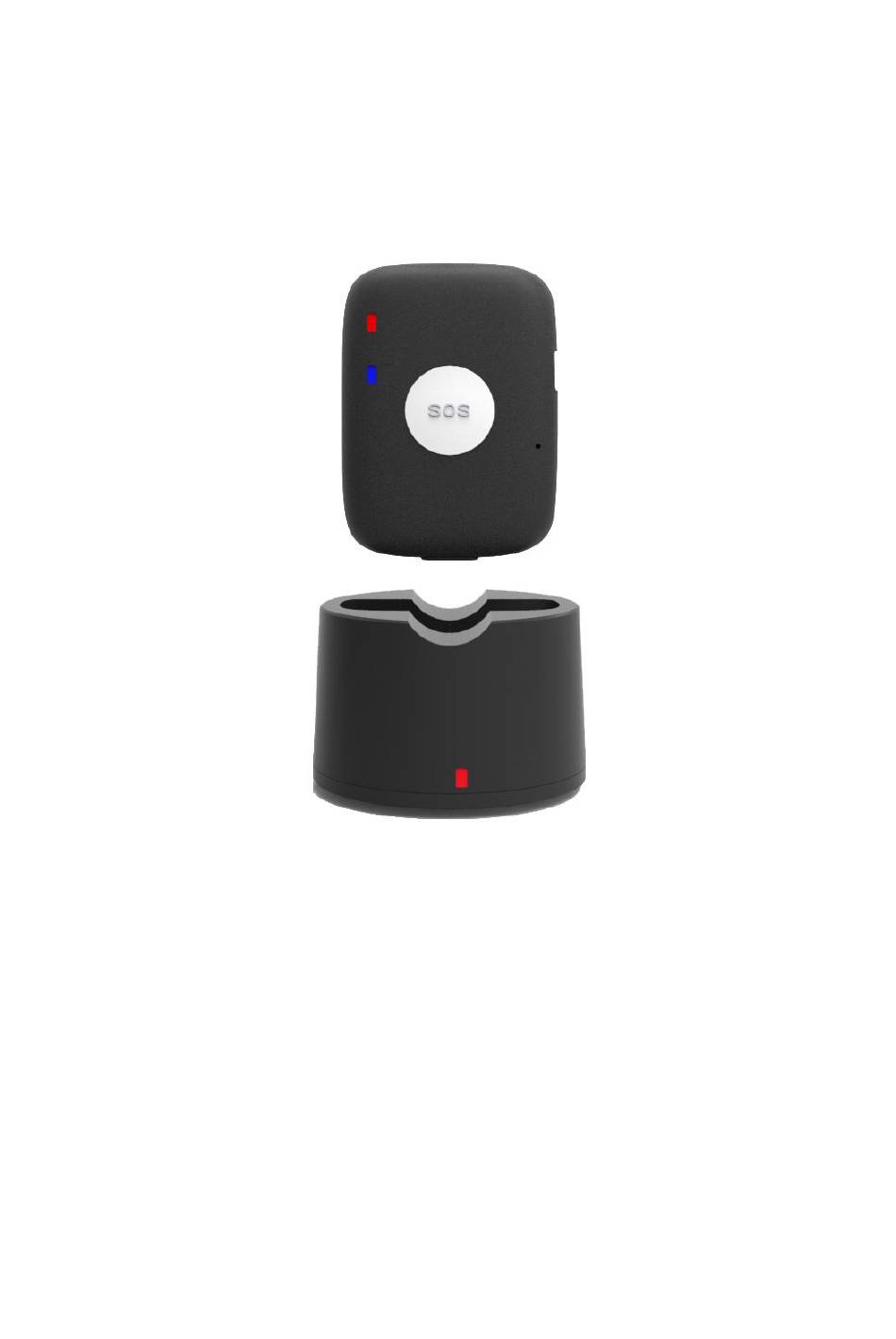

- Page 1 Farnear Personal GPS Tracker GPS Tracker Model: FN01-4GWB Version: V1.2 Date: Feb 20 Farnear IOT Terminal...
- Page 2 Copyright and Disclaimer All copyrights belong to Farnear Technology Co., Limited. You are not allowed to revise, copy or spread this file in any form without consent of Farnear. is trademark of Farnear, protected by law. Please read this user guide carefully before using or installation to avoid any possible personal injury or property loss.
-
Page 3: Table Of Contents
Content 1. Introduction ................1 2. Main function ................2 3. Hardware ..................2 4. Specification ................3 5. Operation ..................3 6. Switch ON/OFF ................5 7. Set by SMS .................. 5 8. Command List ................9 9. Cautions ..................14 10. -
Page 4: Introduction
1. Introduction FN01 is a personal remote location device with small size, IP67 case, build-in long standby time battery and easy to use. This tracker can be used as an emergency cellular phone and allows speed dialing authorized numbers for 2-way voice communication, of course, you can define the dialing yourself. -
Page 5: Main Function
Farnear Electronics Co., Ltd FN01 User Guide 2. Main function 2.1 IP67 Real waterproof 2.2 3G/2G full band and 4G 2.3 Real Time Tracking on PC/Tablet/Mobile 2.4 One week battery life 2.5 Voice monitoring 2.6 Two way talking 2.7 SOS/GEO-Fence/Fall down alarm 2.8 Speed/Low battery Alarm... -
Page 6: Specification
Farnear Electronics Co., Ltd FN01 User Guide 4. Specification Item Specification Case Real IP67 (1m deep water, stay 30m) Dimension 61*45*19mm Weight Device is 50g, Full box is around 250g GSM Chip Qualcomm(4G) GPS Chip Qualcomm/Ublox, Accuracy: 5m-15m Charging Voltage... - Page 7 Farnear Electronics Co., Ltd FN01 User Guide 5.2 Installing SIM Card FN01 is suitable to Nano SIM Card only, and it support 2G/3G band. Ensure the sim card is available and has enough fee. Ensure PIN code is closed. Caller ID service is necessary to FN01.
-
Page 8: Switch On/Off
Farnear Electronics Co., Ltd FN01 User Guide 6. Switch ON/OFF 6.1 Press the side button till the tracker vibrate, two LED will bright during this time. 6.2 When you loose the button, Red led will blink fast. 6.3 Work mode:... - Page 9 Farnear Electronics Co., Ltd FN01 User Guide 7.3 Checking Firmware Version :123456B Reply: #867688033841044,CMD-B,V1.01,S:FN01- NM-20190423C,01# 7.4 Set Fall Down and Fall Down Alarm :123456K2,X X=1 Open, X=2 Close Example: :123456K2,1 #867688033841044,CMD-K2,OK# Alarm:ALM-F2,A, http://maps.google.com/maps?f=q&hl=en&q=22.7198618,114.3877993&ie=UTF8&z=16&iw loc=addr&om=1Speed:000.3 7.5 SOS Alarm Press the big SOS button till you feel vibrate, then loose it.
- Page 10 Farnear Electronics Co., Ltd FN01 User Guide Example: Send: :123456E1,1,1,22.7198011N,114.3878008E,50 Reply: #867688033841044,CMD-E,OK# Rectangle Fence: :123456Ix,y,z,aa.aaaaaaaN/S,bbb.bbbbbbbE/ W,cc.cccccccN/S,ddd.dddddddE/W x is fence number; y is switch, y=1 on, y=0 off z is alarm mode, 1 go in alarm, 2 go out alarm, 3 go out and in alarm aa.aaaaaaaN/S,bbb.bbbbbbbE/W,cc.cccccccN/S,ddd.dddddddE/W is the two coordinate of...
- Page 11 Farnear Electronics Co., Ltd FN01 User Guide There are many 3 parties platform. So, we don’t offer Platform and App. As a gps tracker factory, we only focus at gps tracker. We offer OEM, ODM and Customization, so you can test...
-
Page 12: Command List
Farnear Electronics Co., Ltd FN01 User Guide 8. Command List Function Command Explain Example x can be 1,2,3,4,5,6,7,8,L means A1,A2,A3,A4,A5,A6,A7,A8,AL(All number) :123456Ax,Country code,phone :123456A1,,13823561161,20 m is call in: 0-listen in, 1-hang off, 2-wait for number,mn the user press button answer, 3-answer... - Page 13 Farnear Electronics Co., Ltd FN01 User Guide :123456F :123456F CMD-F,A,http://maps.google.com/ma GPRS:#IMEI,CMD-F,A,DATE,TIME,L Location ps?f=q&hl=en&q=22.7198011,114.38 AT,LON,Speed,Batter-Signal,HDOP# 78008&ie=UTF8&z=16&iwloc=addr&o SMS:CMD-F,A,Google link m=1Speed:000.1 :123456G :123456G #IMEI,CMD-G,A1:-:30,A2:-:20,A3:-:20 ,A4:-:20,A5:-:20,A6:-:20,A7:-:20,A8:-: #867688033841044,CMD-G,A1:-1382 Ask for 20,IP;Port,Password,APN:,name,pass 3561161:30,A2:-:20,A3:-:20,A4:-:20,A Parameter word,Report time-unit,Ask for 5:-:20,A6:-:20,A7:-:20,A8:-:20,IP:0.0.0 GPS-unit,Reconnect time-unit,time .0:0,123.249.83.8:10385,123456,APN zone,speed value,low battery :,,,5-M,10-M,10-M,+08:00,80,30,3-M# value,Heart beat-its unit#...
- Page 14 Farnear Electronics Co., Ltd FN01 User Guide Set the sensitivity, :123456K1,1,3 a is the height level, range: 1-9 (Default: 2) b is the movement times after falling down. #867688033841044,CMD-K1,OK# (Default is 4 times) Switch of fall down: a=1 on, a=0 off...
- Page 15 Farnear Electronics Co., Ltd FN01 User Guide x is switch, x=1 open, x=0 close #IMEI,CMD-NL,x,yy# #867688033841044,CMD-NL,1,30# yy is the percentage #867688033841044,CMD-T,A,DATE: #IMEI,ALM-A1,A,DATE,TIME,LAT,LO 190624,TIME:141556,LAT:22.719566 N,Speed,Battery-GSM Signal,HDOP# 8N,LON:114.3877683E,Speed:001.8, 100-18,04.62# 123456OAPN,User name,Password :123456O3gnet,, Most of User name and Password is Null. So, you have to check with your SIM Card...
- Page 16 Farnear Electronics Co., Ltd FN01 User Guide closing WiFi data. Set WiFi #IMEI,CMD-Sx,y,OK# #862831030183839,CMD-S1,3,OK# (Available for WiFi model) x=0 (Normal mode) x=1 Smart mode(Judge dynamic or non-dynamic by G-sensor, send continuous tracking data in dynamic, send hear beat :123456Ux :123456U0...
-
Page 17: Cautions
Farnear Electronics Co., Ltd FN01 User Guide CALL,A,http://maps.google.com/maps Call the tracker and Get location ?f=q&hl=en&q=22.7198721,114.3877 Others When you set Authorized number, you CALL,A,Google linke 820&ie=UTF8&z=16&iwloc=addr&om can set this function. =1Speed:001.6 9. Cautions 1. Don’t put the unit in overheated or overcooled places. - Page 18 Farnear Electronics Co., Ltd FN01 User Guide § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 19: Support
Farnear Electronics Co., Ltd FN01 User Guide Support Thanks for choosing our device, enjoy your safe time from now on. If you have any questions or problems, please feel free to contact us Farnear Electronics Co., Ltd www.szfarnear.com kaisen@szfarnear.com +86 13823561161...
