Summary of Contents for Sita AL2 Series

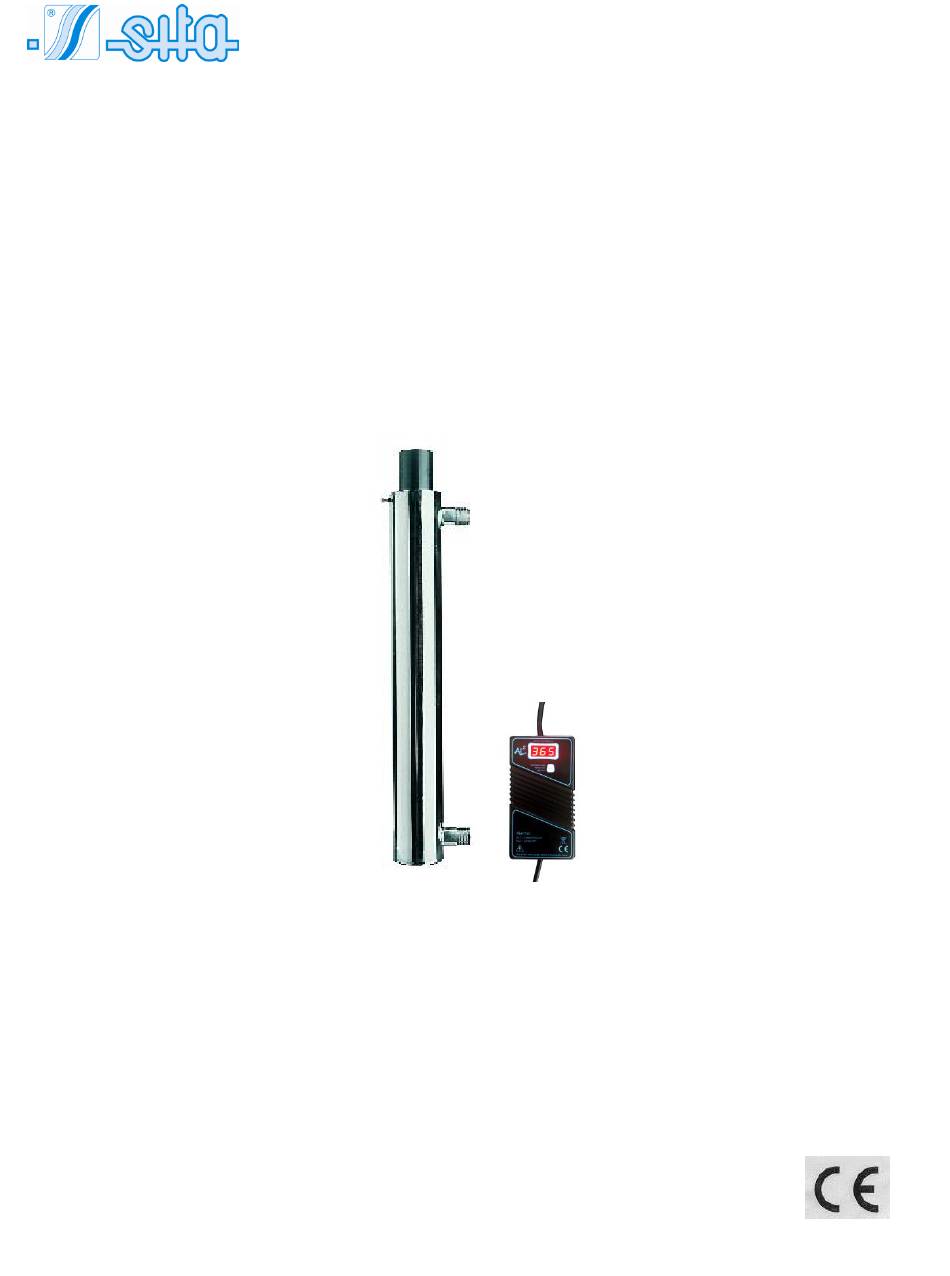

- Page 1 ULTRAVIOLET DISINFECTION EQUIPMENT FOR THE TREATMENT OF DRINKING WATER SINGLE LAMP AL SERIES 405C AL - 405 AL - 412 AL MANUAL OF INSTALLATION, USE AND SERVICING English 08-2019 Rev.D...
-
Page 2: Table Of Contents
INDEX Introduction ................................. 2 General Principles ..............................3 Instruction for installation and setting at work ......................5 3.1 Installation scheme recommended ......................7 3.1. UV Chamber Installation ............................8 4.1 Assembling of the UV chamber ....................... 8 4.1. 4.2 Detailed drawing of the UV-C chamber ....................8 4.2. -
Page 3: Introduction
1. Introduction This manual is for the following models of SINGLE LAMP AL SERIES: – 412 AL UV 405C AL - UV 405 AL This Pressure UV Systems is manufactured by S.I.T.A. s.r.l. Warning: This equipment requires regular maintenance to ensure the requirements of the drinking water treated and the maintenance of the improvements as stated by the manufacturer. -
Page 4: General Principles
2. General Principles Information about UV irradiation The UV sterilizers of the SINGLE LAMP series have been planned specially for destroying harmful bacteria and viruses present in your water. Their working is based on a physical principle which is a warranty of security: the output of ultra- violet irradiation. - Page 5 Please contact your municipality, or local authority, for all information regarding the separate collection systems available in the area. The retailer is obliged to collect the old equipment free of charge when buying new equipment of an equivalent type, for the purpose of starting the correct recycling / disposal.
-
Page 6: Instruction For Installation And Setting At Work
3. Instruction for installation and setting at work General premise: The installation of the SINGLE LAMP sterilization units must be carried out by specialized staff, scrupolously following the instructions hereby given. It has been moreover considered necessary to give some general information about the electrical and water connections. Cautions: check that the UV panel is not connected to the power supply and that the tap of the water to be treated is turned off. - Page 7 Procedure for the quartz sleeve cleaning 1) disconnect the electrical box from the electrical grid and turn off water 2) remove the lamp, as for the replacement 3) unscrew the sleeve-bolt and extract the quartz sleeve with care 4) clean the quartz sleeve by wiping it with a cloth soaked with an acid solution such vinegar or lemmon 5) reassemble the sleeve being sure to center the guide-spring fixed on the bottom, put the o-ring...
-
Page 8: Installation Scheme Recommended
3.1. 3.1 Installation scheme recommended... -
Page 9: Uv Chamber Installation
ASSEMBLING OF THE UV-C CHAMBER 4. UV Chamber Installation 4.1. 4.1 Assembling of the UV chamber Extract the PVC contact cover 4.2. 4.2 Detailed drawing of the UV-C chamber Unscrew the nylon sleeve bolt 5. Models drawing Avvitare il bloccaguaina in nylon Insert the quartz sleeve paying attention in centering the guide spring placed on the bottom of the chamber Inserire la molla di appoggio della lampada nella guaina al quarzo... - Page 10 • Screw nylon sleeve bolt Avvitare il bloccaguaina in nylon Avvitare il bloccaguaina in nylon Inserire la molla di appoggio della lampada nella guaina al quarzo • Insert the sping Inserire la molla di appoggio della lampada nella guaina al quarzo Inserire la lampada UV-C nella guaina Inserire la lampada UV-C nella guaina Perform hydraulic test and check there is no leaks.
-
Page 11: Uv Chamber Drawing
4.2. UV chamber drawing... - Page 12 5. Models drawing...
-
Page 14: Electrical Scheme
6. Electrical scheme... -
Page 15: Display Information (Troubleshooting)
7. Display Information (Troubleshooting) DISPLAY MESSAGES – Start up: No Power (Connect to power supply) 01.0 Identification of the software revision Working days count down (lamp life 1 year) DISPLAY INFORMATIONS – Working days: ◄┘ Press for less than 1 sec to show the lamp working days: Press Ok <... - Page 16 N.B. if within 5 sec it is not "confirmed", the days-meter comes back to the current counting value Indicates lamp failure. Check: AL2: Lamp connection. If lamp is burned by testing another lamp. If lamp starter has failed by testing a new lamp. ◄┘...
-
Page 17: Technical Data Sheet
230 V - 50/60 Hz Lamp cable length Power supply cable Feed plug SCHUKO, UK or passing wires Monitor display Digital SITA Days meter Yes for total system life Resettable days meter Yes for lamp life control Audio alarm With silence options... -
Page 18: Uv 405C Al
230 V - 50/60 Hz Lamp cable length Power supply cable Feed plug SCHUKO, UK or passing wires Monitor display Digital SITA Days meter Yes for total system life Resettable days meter Yes for lamp life control Audio alarm With silence options... -
Page 19: Uv 412 Al 2
230 V - 50/60 Hz Lamp cable length Power supply cable Feed plug SCHUKO, UK or passing wires Monitor display Digital SITA Days meter Yes for total system life Resettable days meter Yes for lamp life control Audio alarm With silence options... -
Page 20: Warranty Conditions
The stainless steel chamber is covered by warranty of 5 years only if used for compatible liquids and correctly installed. In no case the integral replacement of the product is forseen and any responsibility of sita is excluded for delays in the delivery of the goods to the customer, for claims of third parties towards the customer, for losses of goods, costs (installation, servicing and maintenance, transports, and so on) and damages of the customer due to the defect. -
Page 21: Declaration Of Conformity Ec
Declaration of Conformity EC Unit produced in the factory of: S.I.T.A. Italian Company for Water Treatment EC DECLARATION OF CONFORMITY The undersigned hereby declares, under full responsibility, that the unit: UV STERILIZER SINGLE-MULTILAMP SERIES MODELS IS IN COMPLIANCE WITH • 2014/35/UE (low voltage directive) •...
