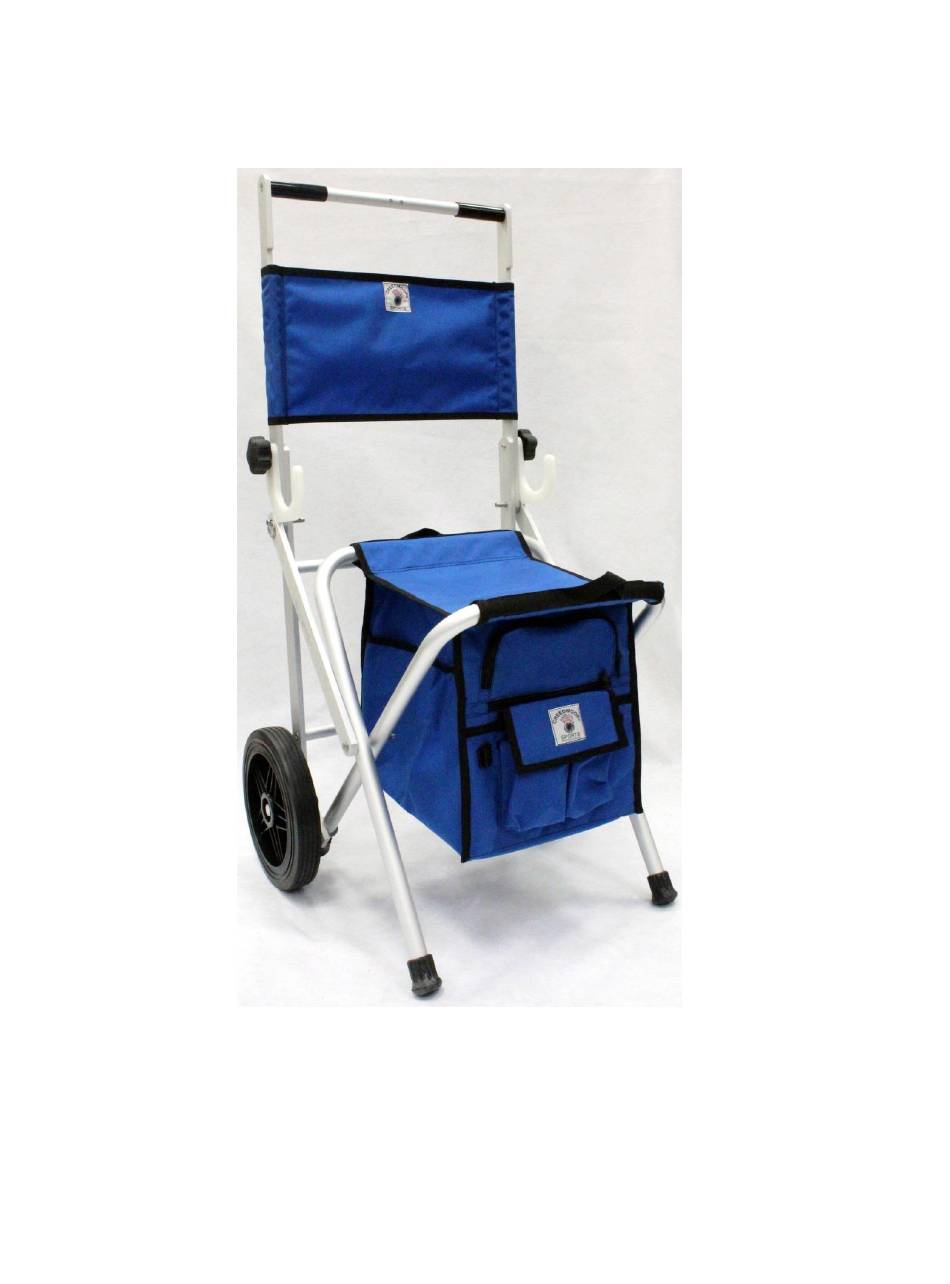

Creedmoor Deluxe Cart Conversion Kit
(Shown with optional stool)
Congratulations
on the purchase of your new Creedmoor Deluxe Cart Conversion Kit.
Before you begin lay out all the parts as shown in Figures 1, 2 and 3 to ensure you received all necessary
parts.
th
Tools needed for assembly: Allen wrench (included), 7/16
" wrench and socket, ¾" wrench and socket,
10mm wrench.
Advertisement
Summary of Contents for Creedmoor Deluxe Cart Conversion Kit
- Page 1 Creedmoor Deluxe Cart Conversion Kit (Shown with optional stool) Congratulations on the purchase of your new Creedmoor Deluxe Cart Conversion Kit. Before you begin lay out all the parts as shown in Figures 1, 2 and 3 to ensure you received all necessary parts.
- Page 2 Figure (1) Figure (2) Figure (3) Step 1: Assuming you already have the stool, remove the crutch tips from the narrower of the two stool frames. This will/should be the back of your cart once assembled.
- Page 3 Step 2: Once the crutch tips are removed, measure 2 ½” from the bottom and put a small mark in the inside of the frame. This is where the u-bolts will be positioned. Step 3: Insert the u-bolts (A13) into the two small aluminum pieces (wheel anchors A8) that will be used to attach the wheels.
- Page 4 Step 6: Attach the steel washer and the nut. Step 7: Using a ¾” wrench and socket tighten the nut. The axle bolt should still spin freely even after tightening the nut. Step 8: Assemble the lower portion of the handle/frame using 4 of the supplied allen screws (A10) and wrench.
- Page 5 Step 9: Position the lower handle/frame so the holes line up with the axle mount holes on the wheel anchors you previously mounted to the stool frame. Step 10: Using a ¾” socket attach the axles to the wheel anchors and tighten, then loosen ¼...
- Page 6 Step 12: Assemble the upper handle by attaching the handle to the two notched aluminum bars. The notches should be assembled to face the stool bag. As with the lower handle the screw holes are easily identifiable being countersunk. Step 13: Slide the cloth cart back onto the upper handle with the notches and the tag facing forward.
- Page 7 Step 15: Align and insert the locking pins (A9) into the non-threaded holes in the lock bar, the upper handle, and the lower handle. Step 16: Rotate the handle up to its upright position, align the threaded holes with the non-threaded hole in the rifle rack hook, and insert the large star knob.
- Page 8 Step 18: Replace the crutch tips you previously removed. Optional Scope Stand Mount Instructions Tools needed: 5mm allen wrench, 4mm allen wrench Step 1: Using the 5mm allen wrench attach the scope clamp so that it’s facing away from the stool bag. Step 2: Remove one of the wheels.
- Page 9 Step 3: Separate the bar from the frame and slide the scope stand bracket over the bar. Step 4: Reattach the bar and wheels, then position the bracket near the center of the bar and snug the allen screws using the 4mm allen werench. Step 5: Place the 1”...
