Summary of Contents for FloCat C-TJ60 Smart Series

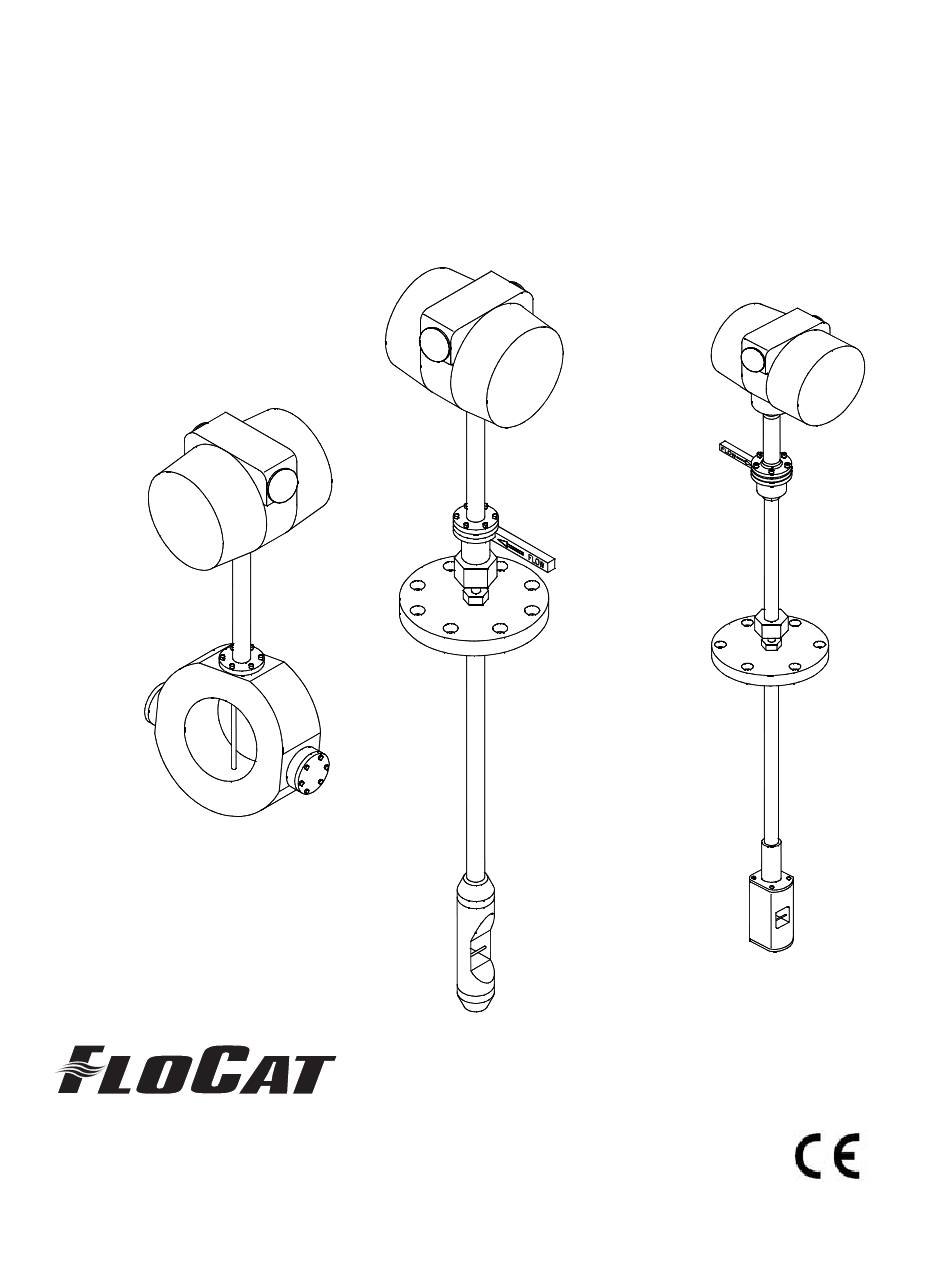

- Page 1 Operator's Manual for the C-TJ60 Smart Series Flowmeters 8 Leroy Road PO Box 1073 Williston, VT 05495 USA voice: 888-FLOW-888 or 802-863-0085 fax: 800-775-3179 or 802-863-1193 email: sales@flocat.com www.flocat.com Revision E...
- Page 2 Should this product fail to be in good working order at any time during the warranty period, FloCat will, at its option, repair or replace it at no additional charge, except as set out below. This warranty does not cover products damaged from accident, disaster, misuse, abuse or unauthorized modifications.
- Page 3 After removing the equipment from the package, carefully examine it for mechanical damage. If the equipment is found to be damaged, immediately notify both the carrier and FloCat or their representative. DO NOT ATTEMPT TO OPERATE ANY EQUIPMENT...
-
Page 4: Table Of Contents
TABLE OF CONTENTS HEADING PAGE INTRODUCTION ........................SPECIFICATIONS ........................INSTALLATION ........................Mechanical Installation ....................... Installation Location ......................Sensor Installation ......................Electrical Installation ......................Flowmeter Wiring ........................ OPERATION ..........................Power Terminals ......................... Current Output ........................Hart Communication ......................TROUBLESHOOTING ......................Preliminary Checks ......................REVISION B... - Page 5 LIST OF FIGURES FIGURE TITLE PAGE Internal Alignment of C-TJ60 Series Flowmeters ..........B1-B4 Outline Dimensions for C-TJ60 Series Flowmeters ........Flowmeter Terminal Functions ............... Load Resistance Chart .................. Sensor Wiring Diagram ................. Sensor Wiring Diagram ................. Hart Communication Menu Tree ..............Hot Tap Configuration for Insertion Style ............
- Page 6 LIST OF TABLES TABLE TITLE PAGE Specifications ....................Flow Range Charts ..................Flow Profile (Raw Data) ................... Flow Profile (Normalized Data) ................ LIST OF APPENDIXES APPENDIX TITLE PAGE ADDITIONAL INSTALLATION REQUIREMENTS ........... Introduction ....................Turbulence ....................Swirl ......................Sonic Noise ....................Velocity Profile...................
- Page 7 REVISION STATUS OF SHEETS PAGE REVISION PAGE REVISION REVISION E...
-
Page 8: Introduction
INTRODUCTION The Insertion style Flowmeters are retract- able flowmeters that are installed through the This family of flowmeters is designed to walls of a pipe or duct larger than four inches. provide accurate and repeatable gas flow These Flowmeters can be installed through a measurement. -
Page 9: Specifications
SPECIFICATIONS Wafer-Style Wafer-Style Insertion-Style Insertion-Style PARAMETER GAS/AIR STEAM STEAM GAS/AIR Accuracy Mounting Requirements Mount between two 150 lb. flanges Mounting plate is standard 2-inch, 150lb flange Repeatability +0.5% Reading Input Power +15 to +24 VDC * Output PRIMARY: 4 to 20 mA, 2 wire Operating Pressure -5 to 125 PSIG (-0.34 to 8.6 BAR G) -5 to 250 PSIG... -
Page 10: Flow Range Charts
STEAM APPLICATION GAS/AIR APPLICATION FLOW RANGE FLOW RANGE PIPE SIZE PIPE SIZE inch (mm) inch (mm) 1/2” (13mm) 0.4 (0.7) 10 (17) 1/2” (13mm) 0.4 (1) 16 (25) 1” (25mm) 1” (25mm) 1.3 (2) 35 (59) 1.2 (2) 45 (72) 1 1/2”... -
Page 11: Installation
flow. An ultrasonic noise present, flow straighteners should be used. can interfere with this technique, therefore high Consult FloCat for shorter upstream/down- intensity ultrasonic noise sources should not stream configurations. See Appendix C for be located upstream or downstream from the additional installation information. -
Page 12: B1-B4 Outline Dimensions For C-Tj60 Series Flowmeters
All dimensions are in inches (mm) DIM C GAS/AIR STEAM 3.50 (88.83) 0.50 (12.69) 5.60 (142.13) 9.47 (240.53) 2.38 (60.41) 2.25 (57.11) 1.38 (35.03) 3.97 (100.76) 0.88 (22.34) 5.78 (146.70) 9.65 (245.11) 3.12 (79.19) 2.12 (53.81) 2.00 (50.76) 1.38 (35.03) 6.34 (160.91) 10.21 (259.33) 3.88 (98.48) 2.12 (53.81) 4.72 (119.80) 2.88 (73.10) - Page 13 5.75 4.50 3/4-14 NPT 4.69 All dimensions are in inches (mm) DIM A DIM B GAS/AIR STEAM 9.88 - 10.00 (250 - 254) 5.60 (142.13) 9.47 (240.53) 9.88 -10.00 (250 - 254) 5.78 (146.70) 9.65 (245.11) 9.88 -10.00 (250 - 254) 6.34 (160.91) 10.21 (259.33) 9.88 -10.00 (250 - 254) 5.92 (150.25) 9.79 (248.66)
- Page 14 All dimensions are in inches (mm) 12.00 (304.57) 15.0 (380.71) 21.5 (545.69) 24.00 (609.14) 27.0 (685.28) 33.5 (850.25) 36.00 (913.71) 39.0 (989.85) 45.5 (1154.82) 48.00 (1218.27) 51.0 (1294.42) 57.5 (1459.39) FIGURE B3 Outline Dimensions for Insertion-Style Steam Flowmeters REVISION...
- Page 15 All dimensions are in inches (mm) 12.00 (304.57) 12.88 (327.15) 21.50 (546.1) 24.00 (609.14) 24.88 (631.95) 33.50 (850.9) 36.00 (913.71) 36.88 (936.75) 45.50 (1155.7) 48.00 (1218.27) 48.88 (1241.55) 57.50 (1460.5) 60.00 (1524) 60.88 (1546.35) 69.50 (1765.3) FIGURE B4 Outline Dimensions for Insertion-Style Gas Flowmeters REVISION...
-
Page 16: Electrical Installation
Sensor Installation (continued) NOTE: The torque requirement for the conax Gaskets (not provided) are necessary between the sensor and the ANSI flanges. Insure that fitting is 90-100 ft. lbs. (see Figure B3 & B4). See Appendix A for additional installation these gaskets are properly installed and do information and flow profiling. -
Page 17: Flowmeter Terminal Functions
4-20MA EP RTN EP PWR CABLE SHIELD EP OUT GROUND EP IN CHASSIS GROUND TERMINAL FUNCTION DESIGNATOR 4-20MA + LOOP POWER (+15-24 VDC) 4-20MA - LOOP POWER (-) not used EP RTN PRESSURE SENSOR POWER SUPPLY RETURN EP PWR PRESSURE SENSOR POWER EP OUT POWER OUT TO PRESSURE SENSOR EP IN... -
Page 18: Flowmeter Wiring
Flowmeter Wiring HART Communication A two conductor foil shielded cable made of 14 to 22 AWG solid or stranded wire is re- This Smart meter has the capability of HART quired to make connections to the flowmeter communication. However, it is not required that (e.g. - Page 19 There are two ways to communicate to the meter via the HART interface: TecView and HART 375 Communicator. TecView is a PC based software program that runs on Windows 98, NT, ME, and XP. This program will provide access to all the settings that can be configured by the customer.
-
Page 20: E Sensor Wiring Diagram
WIRING DIAGRAM The wiring diagrams illustrated below are for installations where no 4-20mA pressure sensor is used. FLOW INDICATOR - OR - 4-20MA + CONTROL SYSTEM POWER 4-20MA - SUPPLY 15 - 24 VDC FLOW EP RTN INDICATOR EP PWR - OR - CONTROL EP OUT... -
Page 21: F Sensor Wiring Diagram
ANALOG PRESSURE GAUGE WIRING If an analog pressure gauge is used it must be wired as shown below to avoid inadvertent current paths. A single supply can be used to power the flow meter and the external pressure sensor. The 4-20mA flow indication must be taken from the source side of the loop. HART FLOW INDICATOR... -
Page 22: Hart Communication Menu Tree
1 PROCESS 1 VIEW FIELD 1 Process Variable VARIABLES DEVICE 2 Analog Output Vortex Mass Flow Meter VARIABLES 3 Percent of Range HART Communicator Menu Tree 4 Vortex Frequency 5 Process Temperature V4.0 Process Pressure TOTALIZER CONTROL 1 Total 2 Start / Stop 3 Reset 1 TEST / 1 View Status... -
Page 23: Troubleshooting
As a result, periodic adjustment or recalibration is not required. Technical assistance is also available directly from FloCat, who provides complete recalibra- tion and repair service for the flowmeter at a reasonable cost. Preliminary Checks NOTE: Do NOT open enclosure in hazardous areas with power applied. -
Page 24: Aadditional Installation Requirements
APPENDIX A - ADDITIONAL INSTALLA- occurs after two bends, in close proximity, TION REQUIREMENTS which are at an angle to each other. When designing an installation, keep the flowmeter out of any line which has two adjacent bends Introduction upstream (see Figure M). Installing a flowmeter is something which requires careful consideration. -
Page 25: Straight-Run Piping Considerations
As the maximum velocity is in the center of Temperature and Pressure Tap Loca- the pipe, it follows that if the flowmeter is tions positioned in the center, it will not measure average flow. The “rule of thumb” position is User supplied pressure and temperature 25% of the way into the pipe, but the optimum sensors should be mounted downstream from... -
Page 26: Hot Tap Insertion Flowmeter Installation
Gaskets (not provided) are necessary be- To calculate the insertion flowmeter stem tweenthe sensor and ANSI flange. It is rec- length for the installation, it will require: ommended that the customer conduct a flow profile survey prior to installing flowmeter. A For pipe of a diameter less than 24”... -
Page 27: Hot Tap Configuration For Insertion Style
Figure H Figure J Hot Tap Configuration for Hot Tap Configuration for Insertion-Style Steam Flowmeter Insertion-Style Gas Flowmeter NOTE: Caution should be used when insert- ing or retracting at pressures exceeding 60 PSIG (4.14 BAR G). REVISION... -
Page 28: Turbulence Caused By Bend Or Obstruction
FIGURE K Turbulence Caused by Bend or Obstruction FIGURE L Swirl Caused by Two Bends in Different Planes and In Close Proximity to One Another FIGURE M Upstream/Downstream Sonic Noise Caused by Slightly Opened Control Valves... -
Page 29: Flow Profiling
Flow Profiling Reducing the Pipe Diameter If the purchased flowmeter is long enough To decrease the variation of flow profile, the to be inserted to the far side of the pipe, the piping can be narrowed at the flowmeter as flow through the pipe may be profiled at vari- shown in Figure N. -
Page 30: Flow Profile (Raw Data)
FLOW RATE AT MEASUREMENT POINT (F/S) FLOW AVERAGE (ft/s) 19.0 20.0 20.4 20.6 20.4 20.0 19.0 20.0 LOW FLOW 20.6 MEDIUM FLOW 55.8 59.1 61.2 62.4 61.8 60.6 57.0 60.0 62.1 109.2 117.0 122.4 126.0 124.8 121.8 114.0 120.0 HIGH FLOW 124.8 DISTANCE INCHES... -
Page 31: Insertion Flowmeter Installed In A Reduced Pipe
INSERTION-STYLE STEAM INSERTION-STYLE GAS Figure N Insertion Flowmeter Installed in a Reduced Pipe REVISION...
