Summary of Contents for DANCAR ELFOOT
- Page 1 Caravan Fitting instruction User manual Produktion and distribution: Dancar Autosikring ApS Smedevænget 20 DK 2640 Hedehusene www.dancar.dk tlf: 46591228 JKH8007GB/ 01.12.2017 Copyright: www.dancar.dk...
- Page 2 Do not touch the stabiliser legs itself, or nearby when system in powered. Do always turn of the power to the system when not in use. Important The system power must always be turned off when towing the caravan. Always check by visual control that the satbiliser legs are in desired position prior towing the caravan. Copyright: www.dancar.dk Site 2/8...

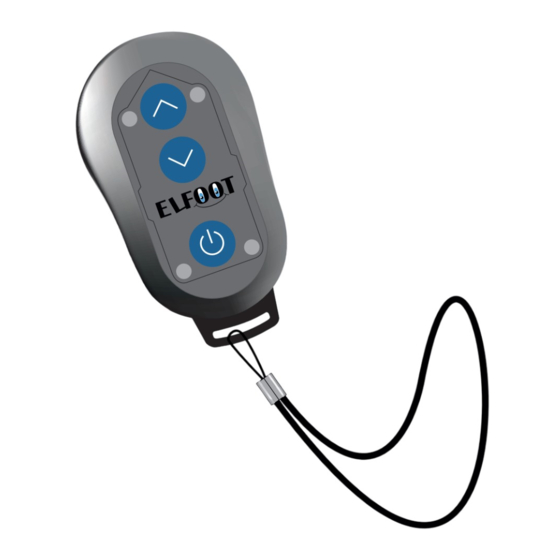

- Page 3 1 pcs. Remote 30 amp DC0098 DC0040 DC0003-5 DC0003-8 1 pcs. DC0002 power cable 8 pcs. 4 mm 2 pcs. Motor wire 5 m. 2 pcs. Motor wire 8 m. 1 pcs. Control unit shims V 4.0 Copyright: www.dancar.dk Site 3/8...
- Page 4 Legs of the caravan shims Notice: The illustration show a standard leg. In market there might be types not suitable for the Elfoot adaptor. The standard adaptor can be modified as shown on page no. 6 Fig. M3 Fig. M4...
- Page 5 SW Version: 4.01 ACTUATORS CODE POWER Rear-L Rear-R Front-L Front-R Code Jumper Please note the possition of the black and gray wires in the terminals. Main switch of the caravan not included blå Gray Black seen from top Copyright: www.dancar.dk Site 5/8...
- Page 6 Type of caravan with skirts (Kabe) Note: Not all type of caravans with skirts are suitable for Elfoot installation. Spring groove In case of emergency operation of the stabiliser leg, it is essential to have enough space to With a mini saw, please be able to remove the adaptor.
- Page 7 If one or more steady legs are not moving down as intented, please see page 6. «stucked stady leg» Adaptor Fig. N1 Fig. N2 toothed wheel Fig. N4 Fig. N3 Distance between Spring groove bracket and adaptor edge. Spring Copyright: www.dancar.dk Site 7/8...
- Page 8 Elfoot is a international trademark Contents and informations in this document can be changed without any pre-warning. Updated instruction see: dancar.dk All material are copyright to Dancar and must not be copy, used in full or part without written permission from Dancar.dk JKH8007GB/ 01.12.2017 Copyright: www.dancar.dk...
