Natural Daylight Solution
for Mobile Dental Photography
www.coco-lux.com
Tel: +82-2-2083-1367
Email: hasscorp@hassbio.com
HASS Corp.
77-14, Gwahakdanji-ro, Gangneung-si,
Gangwon-do, KOREA 25452
Tel: +82-70-7712-1300~4 / Fax: +82-33-644-1231
Customer Support : +82-2-2083-1367
E-mail : hasscorp@hassbio.com
Website : www.hassbio.com
Printed in KOREA © HASS Corporation. All rights reserved.
110601_170821
Advertisement
Table of Contents
Summary of Contents for Hass COCO Lux
- Page 1 Mobile Dental Photography www.coco-lux.com Tel: +82-2-2083-1367 Email: hasscorp@hassbio.com HASS Corp. 77-14, Gwahakdanji-ro, Gangneung-si, Gangwon-do, KOREA 25452 Tel: +82-70-7712-1300~4 / Fax: +82-33-644-1231 Customer Support : +82-2-2083-1367 E-mail : hasscorp@hassbio.com Website : www.hassbio.com Printed in KOREA © HASS Corporation. All rights reserved. 110601_170821...
- Page 2 Natural Daylight Solution Ver. 1 EN / KO for Mobile Dental Photography Instruction Manual 제품 사용설명서...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction 3 2. Safety instruction 4 3. Nomenclature 5 4. Lighting mode 6/ 7 5. Recommendation for use 8/9 6. Technical information 10 7. Warranty 11 목차 1. 소개 3 2. 주의사항 4 3. 부분별 명칭 5 4. -
Page 4: Introduction

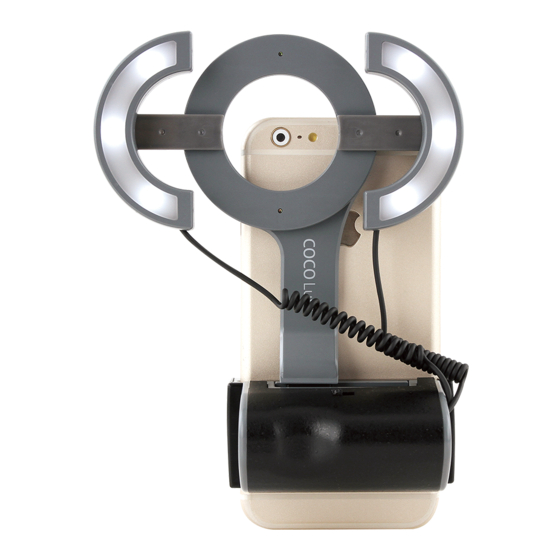

Instruction Manual 1. Introduction Thank you for purchasing the COCOLux ® product. This product features natural daylight properties (color temperature 5,500K / color rendering index 90 Ra+) by utilizing LED to take advantages for accurate color determination. COCOLux ® is designed to attach to your smartphone for photo taking. -
Page 5: Safety Instruction
2. Safety instruction - This product has been designed exclusively for use with mobile phones. Otherwise, this may result in a malfunction or damage to the device. - Do not use the COCOLux ® near flammable or explosive gas. - Use smartphones with a screen width in 55mm-89mm range. - Refer to the example picture below when rotating the lighting unit in Twin mode. -
Page 6: Nomenclature
➏ ➐ ➊ ➑ ➋ When unboxing new COCO Lux , you will see a protection film ® attached to the polarizing filter. You MUST remove the film before using the filter. 제품 구입 후 처음 개봉시, 편광필터 위의 보호필름을 반드시 제거하시... -
Page 7: Lighting Mode
4. Lighting mode Ring mode This mode of lighting is for accurate color determination of the subject or any cases (with polarizing filter) that require high illuminance-e.g. photography of posterior teeth. It is able to take pictures with the minimized reflections when using the polarizing filter in Ring mode. - Page 8 Instruction Manual Ring mode Normal Ring mode Ring mode with polarizer How to attach polarizer Twin mode Twin mode - Horizontally oriented 가로방향 트윈 모드 Twin mode - Vertically oriented 세로방향 트윈 모드...
-
Page 9: Recommendation For Use
5. Recommendations for use Before photo taking - zoom setup Please set the camera of your smartphone with off-camera flash & 2.5-3 times zoom before your dental photography. Such zoom level will help you obtain the best quality dental pictures available on your phone. During photo taking - how to hold the product To prevent any instability in photo taking, please use both hands to hold COCO ®... - Page 10 Instruction Manual 촬영 작업 시 - 링 모드 촬영시 적정 거리 ® ® COCOLux 를 링 모드로 적용 후 쉐이드 가이드를 이용하여 치아 색상 선택 시 COCOLux 조명 부와 치아 간 거리는 15cm 수준으로 유지할 것을 권장합니다. 해당 거리에서 결과물의 빛 반사 가...
-
Page 11: Technical Information
6. Technical information 제품 규격 정보 Item Value 항목 단위 측정값 Weight (without battery) 102-103 중량 (배터리 제외) Overall size (W x H x L) 117 x 148 x 59 전체 사이즈 (폭 x 높이 x 길이) Ring diameter (Ring mode) 링... -
Page 12: Warranty
Instruction Manual 7. Warranty - “LIMITED WARRANTY” on separate paper lists specific terms and conditions. Refer to it for further details. - To fully benefit from the warranty, register your product online by accessing to www.coco-lux.com/reg.html or scan below QR code. 7.
