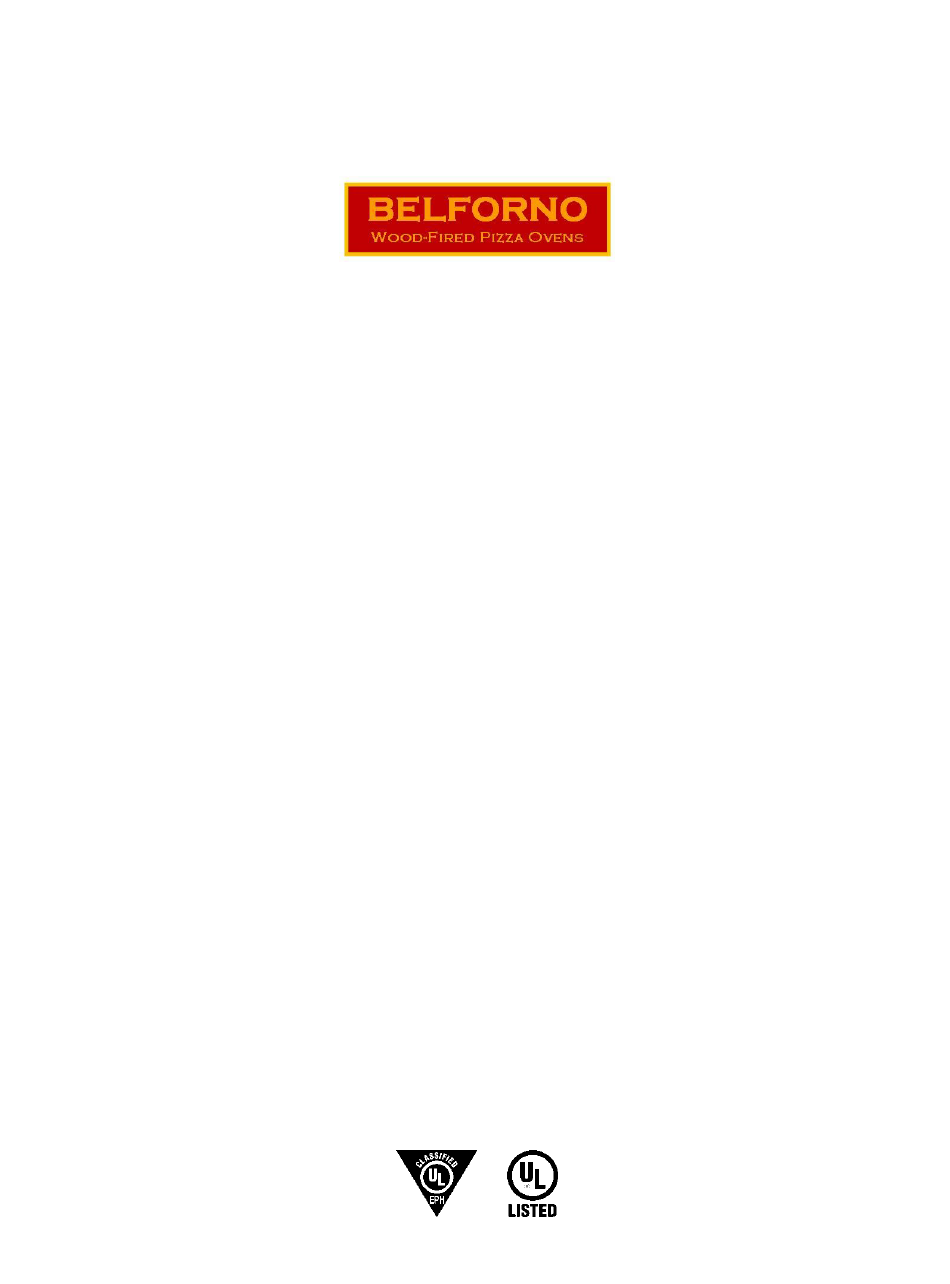

Commercial and Residential Wood Fired Ovens
Installation and Operating Instructions
Belforno32 (SKUBEL100101)
Belforno36 (SKUBEL100102)
Belforno40 (SKUBEL100103)
Belforno44 (SKUBEL100104)
Belforno48 (SKUBEL100105)
Belforno56 (SKUBEL100106)
SAVE THESE INSTRUCTIONS
BE SURE TO READ THE TIPS FOR ASSEMBLY ON PAGES 14 AND 15
Listed UL2162 and UL737; Certified NSF/ANSI-4
Advertisement
Table of Contents
Summary of Contents for BELFORNO 32
- Page 1 Commercial and Residential Wood Fired Ovens Installation and Operating Instructions Belforno32 (SKUBEL100101) Belforno36 (SKUBEL100102) Belforno40 (SKUBEL100103) Belforno44 (SKUBEL100104) Belforno48 (SKUBEL100105) Belforno56 (SKUBEL100106) SAVE THESE INSTRUCTIONS BE SURE TO READ THE TIPS FOR ASSEMBLY ON PAGES 14 AND 15 Listed UL2162 and UL737; Certified NSF/ANSI-4...
- Page 2 Do not close the oven door fully while a fire is in the oven. Closing the door fully will cut off oxygen to the fire, causing the fire to erupt suddenly when the door is removed. Do not douse or extinguish fire in the oven with water. © Belforno Inc. 2012-2015. All rights reserved. Version 1.8...
-
Page 3: Minimum Installation Clearances
WARNING: Do not place any type of insulation in the required clearance spaces surrounding the oven. NOTE: FOR HEALTH DEPARTMENT REQUIREMENTS ANY 1-INCH AIR GAP ADJACENT TO A COMBUSTIBLE WALL MUST BE SEALED WITH A NON COMBUSTIBLE STRIP. i.e. ALUMINUM, STAINLESS STEEL OR TILE. Figure 1 © Belforno Inc. 2012-2015. All rights reserved. Version 1.8... - Page 4 Additional pizza peels 3. STEP-BY-STEP INSTRUCTIONS FOR OVEN ASSEMBLY Here is an overview of the typical steps required for the assembly of the Belforno oven: 1. Determine where the oven will be located and estimate the availability of space. Initially, allow for an area of about 5’...
-
Page 5: Installation Instructions
Installation and Operating Instructions a. PREPARATION The Belforno oven is constructed on a purpose-made base to the owners design. The finish of the oven, and the style can be simple and classic to something more elaborate. However, the design of every oven requires forethought. - Page 6 The anchor plate is attached to the horizontal surface of the oven vent. Mark the location of the 4 holes, and pre-drill holes with a 5/32” carbide drill bit. Create a seal under the anchor plate by applying Belforno mortar to the vent surface. Locate and line up the 4 holes and insert 3/16” x 2¼ ” Tapcon screws.
- Page 7 This guide is only able to provide the most basic of ideas and methods. For more ideas look online, or contact Belforno to discuss info@belforno.com...
- Page 8 If the oven is an enclosed design, the base must be made wide enough to allow a 1” gap between the ceramic blanket and the wall of the structure. Note: Figure 5 is intended for exterior use only. Figure 5. IGLOO OVEN Figure 6. ENCLOSED OVEN © Belforno Inc. 2012-2015. All rights reserved. Version 1.8...
-
Page 9: Operating The Oven
Pine, White (Eastern) 14300 Tamarack 20800 Fir, Concolor (White) 14100 Paper Birch 20300 Buckeye, Ohio 13800 Walnut, Black 20200 Basswood 13500 Cherry 20000 Cottonwood 13500 Ash, Green 19900 Cedar, White 12200 © Belforno Inc. 2012-2015. All rights reserved. Version 1.8... -
Page 10: Curing The Oven
Refer to many cookbooks and online material for further information on wood fired cooking. The fire should be built directly on the hearth; DO NOT elevate fire. © Belforno Inc. 2012-2015. All rights reserved. Version 1.8... -
Page 11: General Instructions
When creosote has accumulated, it should be removed to reduce risk of fire. Infrared Thermometer. Every Belforno kit is supplied with an infrared thermometer. WARNING OF LASER! DO NOT point laser directly at human eye or indirectly from reflective surfaces! ... - Page 12 HOW TO REGISTER A CLAIM AGAINST WARRANTY In order for any claim under this Warranty to be valid, Belforno must be notified of the claimed defect by telephone or in writing to Belforno Inc, 230 Wonderwood Drive, Charlotte NC 28211-4012. Claims against this Warranty in writing should include the date of installation, and a description of the defect.
- Page 13 7. DON’T USE MORTAR INSIDE THE DOME. Apply Belforno high-heat mortar on the outside seam. No mortar should be applied to the inside seams, or any other place in the oven. Not only is it unnecessary, but in time the mortar can dislodge and fall into food.
- Page 14 When the oven is fully assembled, there will be intentional grooves of approximately ¼” between the outside edges of the dome segments. Fill these with the brown Belforno putty, supplied. The putty can be rolled between the hands into “snakes”, and pressed into place.
