- Page 1 12kg Top Load Washing Machine I N S T R U C T I O N M A N U A L IM VERSION: V1.6 | MODEL: HBRTLWRC120W | PRODUCT CODE: 704357 | ISSUE DATE: 07/2021 SUPPORT: 1300 11 4357 | WWW.HARBOUR-APPLIANCES.COM.AU...
-
Page 2: Welcome
Welcome Congratulations on purchasing your new Washing Machine. All products brought to you by Harbour are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 3: Table Of Contents
Contents Welcome Warranty Details General Safety Instructions Product Overview Installation Instructions 13 Operation Instructions 20 Maintenance and Cleaning 22 FAQs and Troubleshooting 25 Specifications 26 Repair and Refurbished Goods or Parts Notice 27 Warranty Returns... - Page 4 To Make a Claim This warranty against defects is provided by ALDI Stores, Locked Bag 56, St Marys Delivery Centre, NSW 2760, Phone (02) 9675 9000. If a defect in the goods appears within 36 months, you are entitled to claim a warranty, please contact or send all warranty claims to:...
-
Page 5: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 6 GENERAL SAFETY INSTRUCTIONS CONT. WARNING: POTENTIAL ELECTRIC SHOCK • This appliance is for indoor use only. • Do not position washing machine in a humid place. • Do not insert your hands into running spin-dry tub. • If the spin-dry tub does not stop within 15 seconds after opening the cover, please stop using the machine and have it repaired.
- Page 7 GENERAL SAFETY INSTRUCTIONS CONT. CAUTION: RISK OF DAMAGING THE APPLIANCE • Your product is only for home use and is only designed for the textiles suitable for machine washing. • Do not climb up and sit on top cover of the machine. •...
-
Page 8: Product Overview

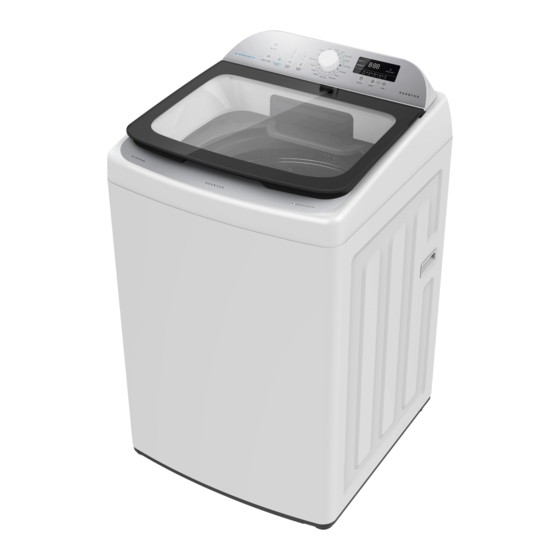

Product Overview THE WASHING MACHINE Note: The images in this user manual are for reference only. Your appliance may appear differently. ACCESSORIES INCLUDED 1. Powder & liquid detergent box 11. Power cord and plug Key: 2. Wash & Spin barrel 12. -
Page 9: Installation Instructions
Installation Instructions INSTALLATION INSTRUCTIONS It’s recommended to use the washing machine on its own dedicated power outlet for both convenience and safety. The power outlet must be grounded. IMPORTANT If the power cord (11) is damaged, it must be replaced by Residentia Group or one of its authorised service representatives. - Page 10 INSTALLATION INSTRUCTIONS CONT. WARNING To prevent leakage or water damage, follow the instructions in this chapter carefully: • Do not kink, crush, modify, sever or protract the inlet hoses (14 & 15) or drain hose (13). • Position drain hose properly, otherwise damage might result of water leakage. •...
- Page 11 INSTALLATION INSTRUCTIONS CONT. CONNECTION OF INLET HOSE, TAP AND WASHING MACHINE Connection between screw tap and inlet hoses (14 & 15). A. Ensure that clamp B. Tighten clamp nut on inlet hose C. Press slide bushing, insert nut is loose and to the screw tap faucet inlet hose into connecting ready for connection...
- Page 12 This page is intentionally left blank...
-
Page 13: Operation Instructions
Operation Instructions FIRST TIME USE CAUTION Prior to using the washing machine, ensure that it is correctly installed. Before first use, the washing machine must perform one cycle without any clothes inside using the following steps: • Connect the power source and water. •... - Page 14 OPERATION INSTRUCTIONS CONT. THE CONTROLS ENHANCED CLEAN FUNCTION ON / OFF Enhanced Clean can save between 20-40% of your Press this button to cycle time by strengthening the washing beats. turn your washing machine On or Off. This mode is available for the Normal, Jeans, Mix Wash, Whites and Dark Wash programs.
- Page 15 RINSE PROGRAM Press this button to select Turn the Program dial to select your desired amount of times your wash program type. to rinse. SPIN Press this button to select your desired amount of times to spin. CHILD LOCK Simultaneously press the Rinse and DELAY Spin buttons to activate the child lock.
- Page 16 OPERATION INSTRUCTIONS CONT. WASHING CONSIDERATIONS The working condition of the washer should be (0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
- Page 17 CAUTION • When the lid is opened during machine operation, the alert will sound continuously. If the lid is opened for more than 1 hour, the machine will shut down automatically. • If there is any break in the power supply whilst the machine is in operation, a special memory stores the selected program when the power is restarted.
- Page 18 OPERATION INSTRUCTIONS CONT. WASHING PROGRAMS NORMAL (STANDARD) SOAK Standard fabric washing program, suitable to wash Suitable for more heavier soiled clothing. The ramie cotton fabric. One wash cycle, two rinsing wash program is like the Normal washing program cycles and a longer spin time. but with a stronger water flow and an extra soak process lasting roughly 30 minutes before the wash JEANS...
- Page 19 WASHING PROGRAMS TABLE Program Temperature Water Soak Wash Rinse Spin time Total level time cycles (minutes) time Normal Cold / Warm / Hot Auto — 0:26 0 / 1 / 2 / 3 0 / 5 / 7 / 9 / 11 1:18 Cold / Warm / Hot Auto...
-
Page 20: Maintenance And Cleaning
Maintenance and Cleaning CLEANING THE TUB CLEANING THE INLET FILTER It is recommended to run the Tub Clean program CAUTION monthly to improve the quality of your washing outcome, water quality and drain flow. Tub Clean Inlet filter must be cleaned if the water pressure is will target the washing powder residue inside and too low. - Page 21 CLEANING THE DRAIN PUMP FILTER WARNING • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter threads and small foreign matter from the washing. •...
-
Page 22: Faqs And Troubleshooting
FAQs and Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Switch off all controls. • Switch the washing machine off at the power point or at the fuse box. • Call the Residentia Support Team on 1300 11 HELP (4357). Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below. - Page 23 FAQS AND TROUBLESHOOTING CONT. FAULT CODES AND POSSIBLE SOLUTIONS If the washing machine experiences a fault, please contact the Residentia Group support team on 1300 11 HELP (4357). WARNING Never dismantle the washing machine. Fault Code Solution Error for abnormal water intake. Check if the water tap is open or closed.
- Page 24 This page is intentionally left blank...
-
Page 25: Specifications
Specifications Model: HBRTLWRC120W Rated Capacity: 12.0kg of dry clothes Product Dimensions (W, D, H): 640mm, 684mm, 1085mm Weight (Net/Gross): 53kg/58kg Rated Input Power: 550W Rated Voltage : 240V Rated Frequency: 50Hz Standard Water Pressure: 0.03-0.8MPa Grade of Waterproof: IPX4 Other Features: 16 Wash Programs Delay Start Function Water Level Adjustment... -
Page 26: Repair And Refurbished Goods Or Parts Notice
Please be assured though, refurbished parts or replacements are only used where they meet ALDI’s stringent quality specifications. You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process. - Page 27 For an electronic copy of this manual, go to www.harbour-appliances.com.au and download a copy.
- Page 28 AN INITIATIVE BY RESIDENTIA GROUP TEL: 1300 11 4357 | EMAIL: SUPPORT@RESIDENTIAGROUP.COM.AU...
Need help?
Do you have a question about the HARBOUR HBRTLWRC120W and is the answer not in the manual?
Questions and answers

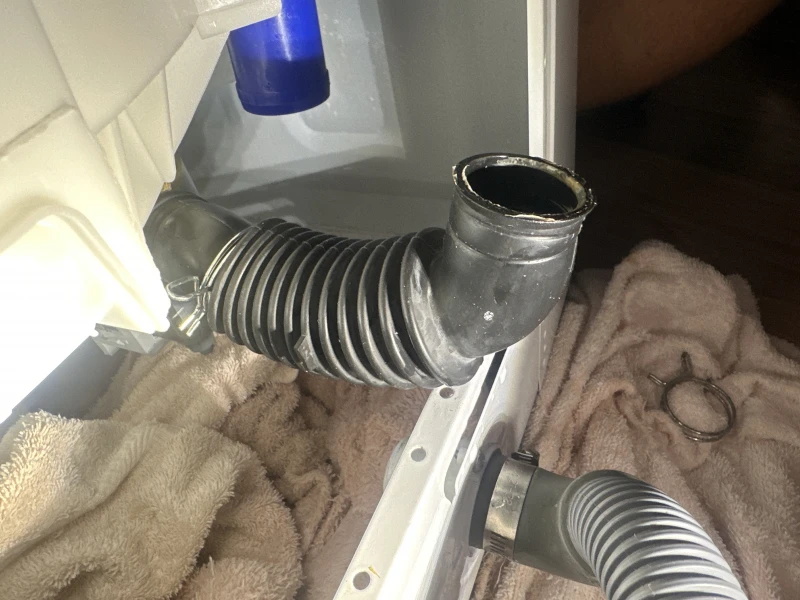

Looking for replacement hose
