Summary of Contents for Dynacore DW-500B Series

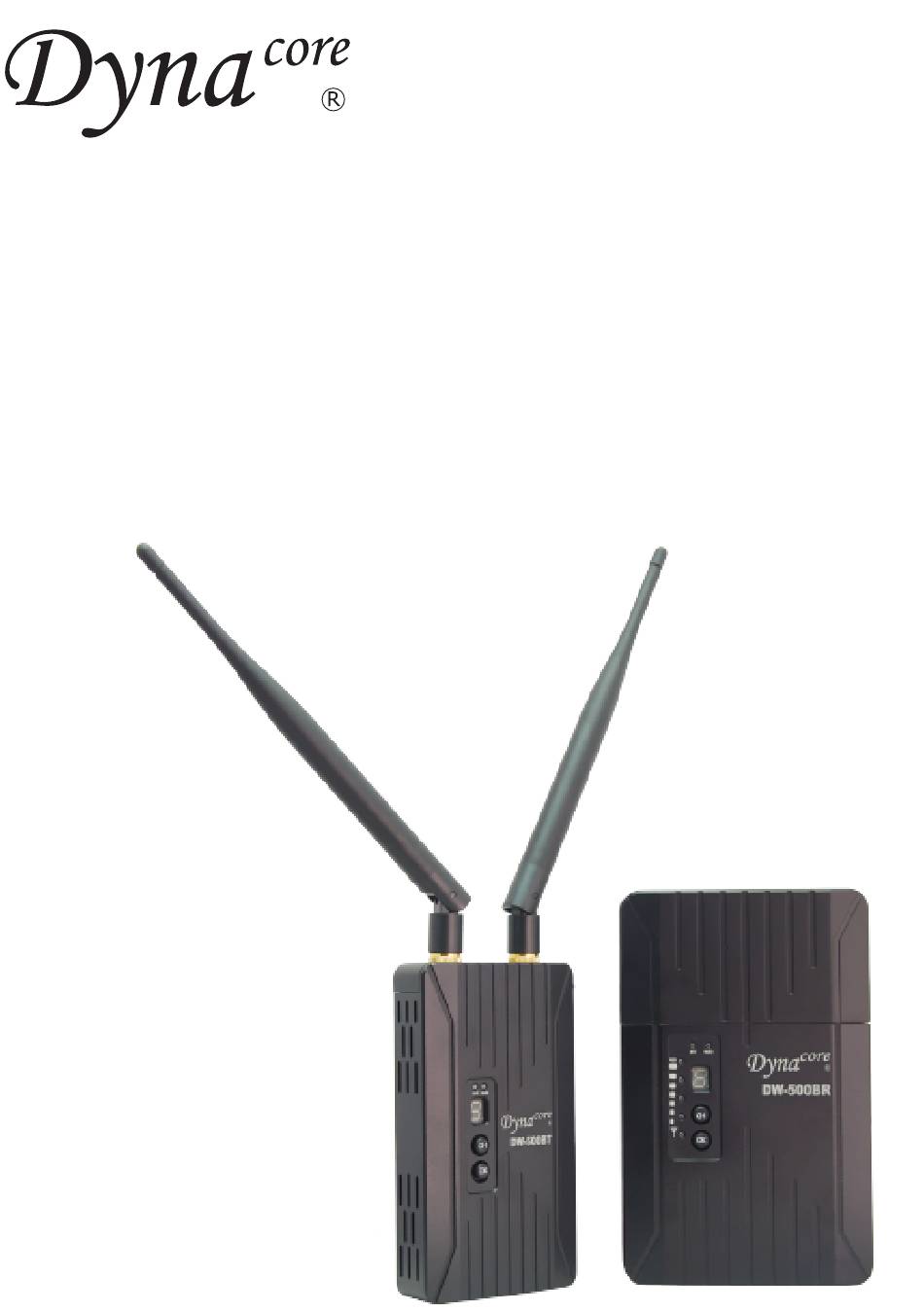

- Page 1 DW-500B SDI/HDMI 150m Wireless Transmission System User manual...
- Page 2 Wireless Transmission System Wireless Transmission System Cautions Product model and standard Dynacore DW-500B Wireless HDMI/SDI Transmission Suite ◆ Do not use this product in the extreme hot, utilize today's most advanced wireless video transmission cold, dusty or humid environments. technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted ◆...
-
Page 3: Specification
Wireless Transmission System Wireless Transmission System Specification Features Model DW-500BT DW-500BR SDI Input SDI Output ◆ Professional WHDI (MIMO/OFDM) technology (BNC Female) (BNC Female) HDMI Input HDMI Output ◆ Uncompressed 3G/HD/SD-SDI and HDMI (Type A female) (Type A female) Interface 2 Antenna port DC input (2 SMA male) - Page 4 Wireless Transmission System Wireless Transmission System Introduction Introduction Receiver Transmitter 1) Video input indicator, 1 yellow LED 1) Video input indicator, 1 yellow LED 2) Link indicator turns to green for successful connection 2) Link indicator turns to green for successful connection 3) LED status indication(5 blue LED for RSSI) 3) Frequency channel display screen and frequency select 4) Frequency channel display screen and frequency select...
- Page 5 Wireless Transmission System Wireless Transmission System Typical connection instruction d) Ensure both the transmitter and receiver are installed with battery or DC input port which is connected to Connect camera SDI or HDMI output to transmitter SDI or outside power source. Then turn power switch of HDMI input port, and the transmitter can be fixed in transmitter and receiver to ‘ON’...
- Page 6 Cautions Wireless Transmission System Wireless Transmission System Input video port selection Frequency selection and configuration of transmitter The wireless suite can work in 5.1-5.9GHz frequency band The transmitter has a 3G SDI video input port and a HDMI and be flexibly software configured to licensed or ISM band video input port, and the system will detect valid video of global different regions, as well as the side panel of both transmitter and receiver has been installed a frequency...
-
Page 7: Multicast Support
Wireless Transmission System Wireless Transmission System How to Use Several Sets in Multicast support One Location 1 transmitter to multi receivers There’re 0-9 frequency channels that can be dial switch You can set several DW-500BR receivers at the same by users. frequency bands for 1 DW-500BT transmitter to In one location, to avoid interference to each other, enable the multicast mode. -
Page 8: Maintenance
Wireless Transmission System Wireless Transmission System How to Get the Best Effect of Maintenance Wireless Transmission Storage conditions a) Set the receiver DW-500BR as high as possible. Products storage temperature should be -20°C~60°C. For long time storage requirement, please use original carbon boxes, and avoid from high humid, acid base or dusty place. - Page 9 1x DW-500BR Receiver (D54S/F970/U60 DV battery Lake East Road,Nanjing 210029 P.R.China mount optional) Tel:+86-25-86 603 989 3x Antennas Fax:+86-25-86 560 560 1x Articulating arm trestle E-mail:info@dynacore-china.com 1x Crab clamp http://www.dynacore-battery.com 2x D-tap to 4 pin pole cable 1x Airtight security box DW-500BT DW-500BR...
